 Communication Card Cables

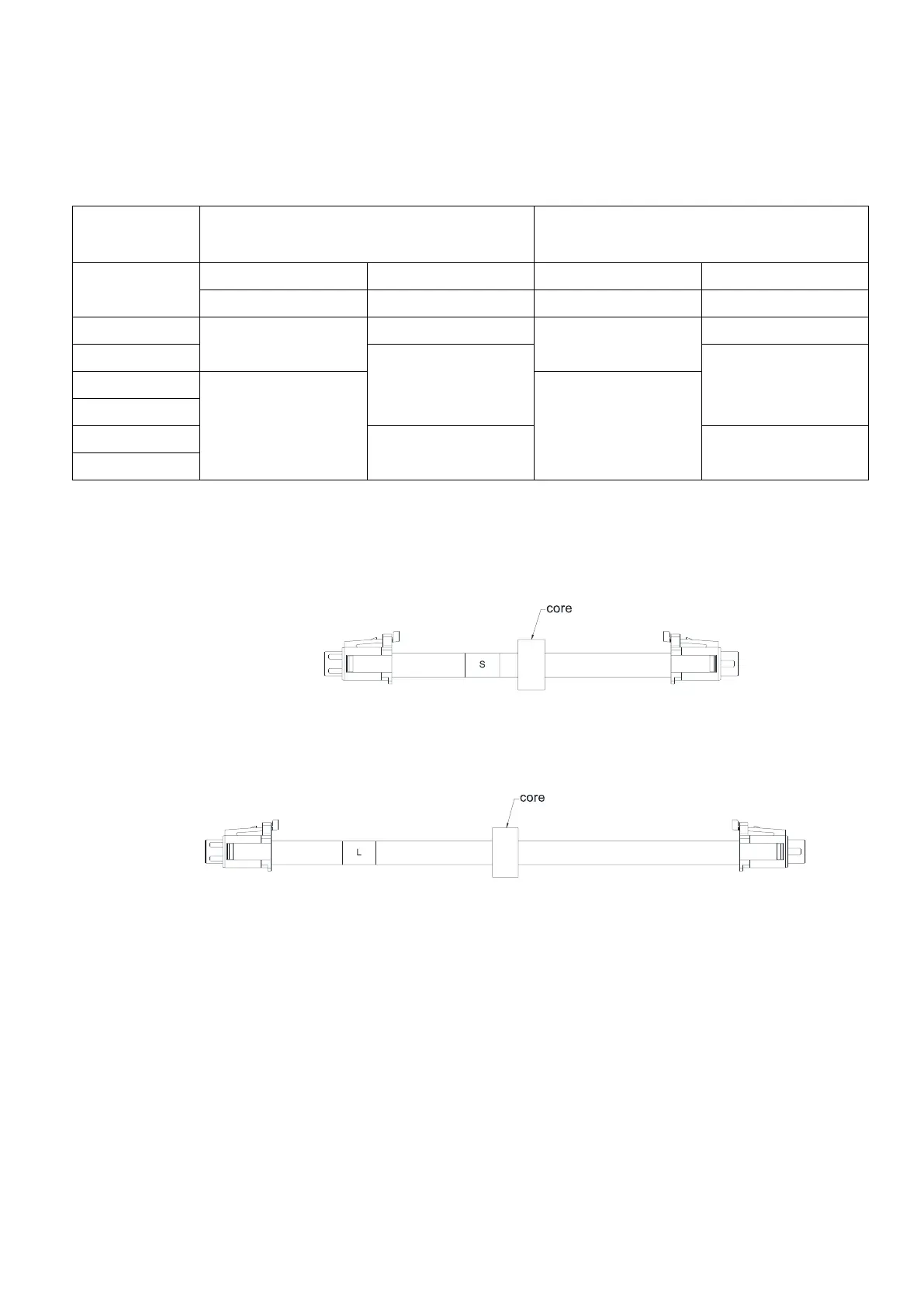

To correctly use the communication cards, you must purchase the communication card along with the
connection cables. Check your communication card models first. Then, select your applicable connection
cables according to the mounting positions by different frames. Two cable length are available for your
choice. See the table below to select your applicable communication card cables.
Communication
Card
CMM-DN02, CMM-EIP02, CMM-EIP03,
CMM-PD02, CMM-COP02
CMM-EC02
Frame
Mounting Position 1
Mounting Position 2
Mounting Position 1
Mounting Position 2
Cable Model#
Cable Model#
Cable Model#
Cable Model#
A
CBM-CL01A
CBM-CC01A
CBM-CL01A
CBM-CL01A
B
CBM-CC02A
CBM-CL02A
C
CBM-CL02A
CBM-CL02A
D
E
N/A
N/A
F
NOTE: An option card mounting box is included upon purchasing the
communication card CMM-EC02, you need to purchase it with CBM-CL01A or
CBM-CL02A
Table 8-1
Model
CBM-CL01A
CBM-CC01A
Figure 8-5
Model
CBM-CL02A
CBM-CC02A
Figure 8-6
