Chapter 7 Optional Accessories  MS300 (High Speed Model)
7-10
Screw Location Torque
Terminal 10.63~12.4 kg-cm / [12.24~14.28 lb-in.] / [1.2~1.4 Nm]
Input AC reactor
Delta part #

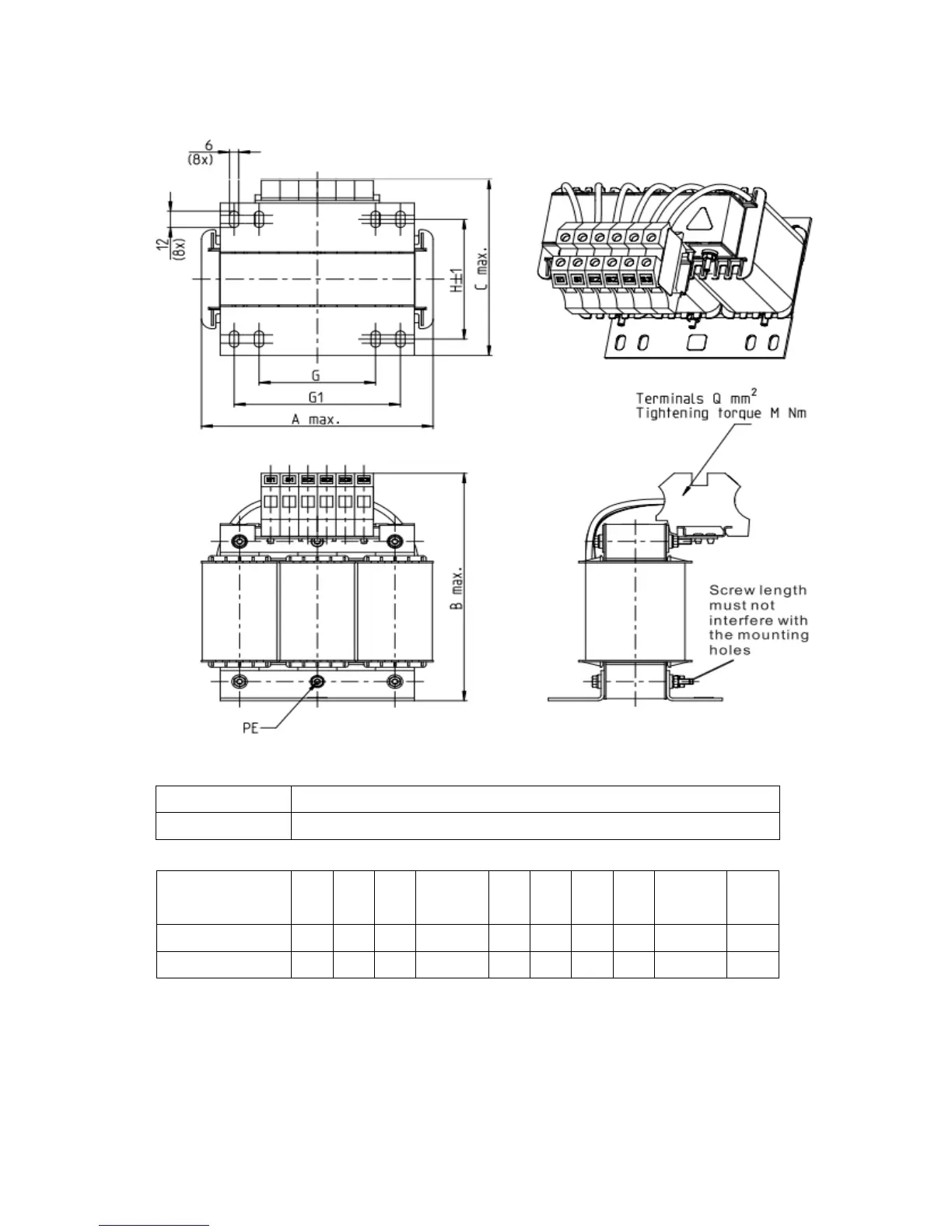

A B C D1*D2 H G G1 Q M PE D
DR049AP215
180 195 160 6*12 115 85 122 16 1.2~1.4 M4
DR065AP163
180 205 160 6*12 115 85 122 35 2.5~3.0 M4
Unit: mm
