Chapter 7 Optional Accessories  MS300 (High Speed Model)
7-36

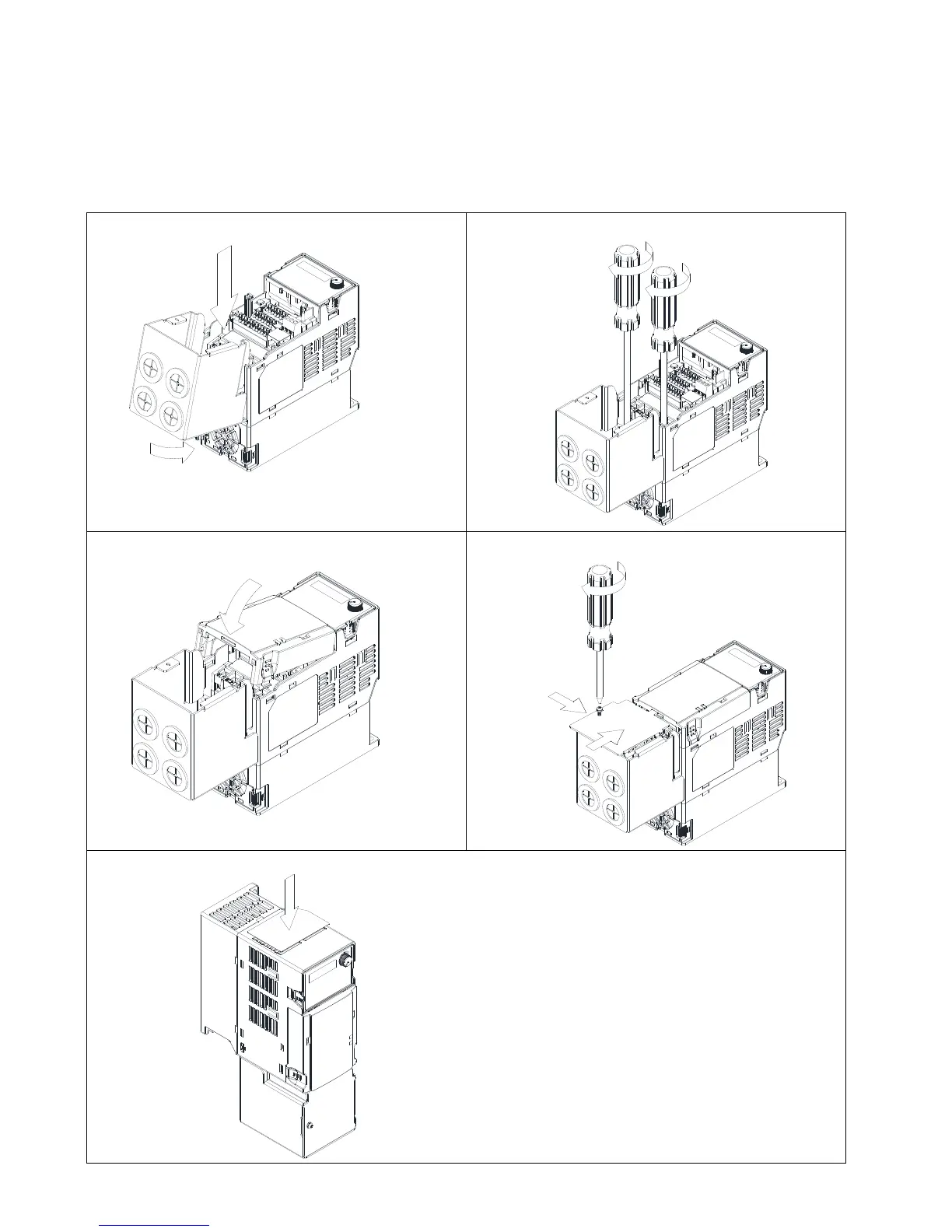

Installation:
Recommended screw torque:
M3: 4-6 kg-cm / [3.5-5.2 lb-in.] / [0.39-0.59 Nm]
M3.5: 4-6 kg-cm / [3.5-5.2 lb-in.] / [0.39-0.59 Nm]
M4: 6-8 kg-cm / [5.2-6.9 lb-in.] / [0.59-0.78 Nm]
Frame B~F
1)
2)
3)
4)
5)
