Chapter 8 Optional Cards MS300 (High Speed Model)
8-6

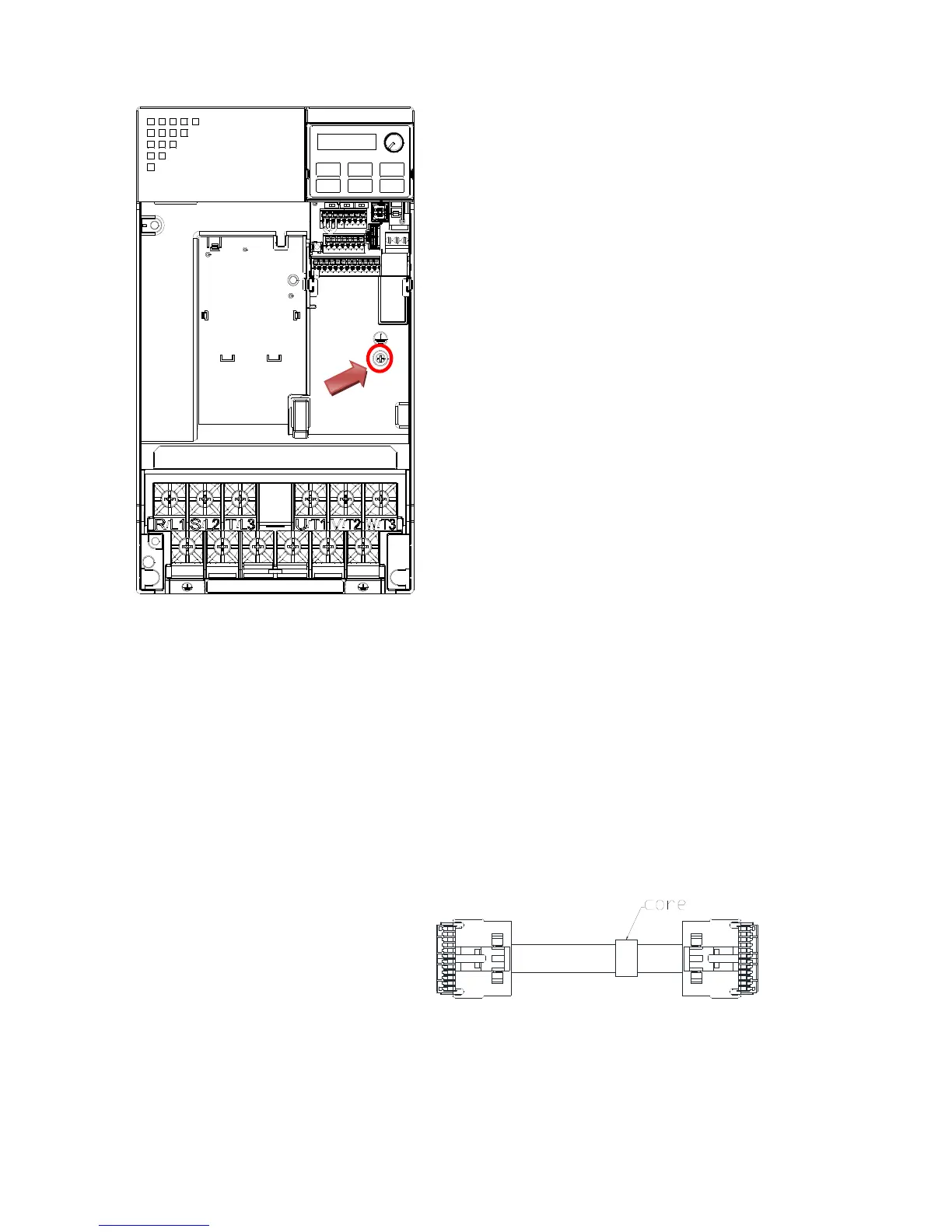

Frame F
Torque (±10%)
Frame F: 7 kg-cm [6.1 Ib-in.] [0.69 Nm]
2. Connection of optional card and control board
The following optional cards must be connected to the control board by using the connecting wire
enclosed with the package. Refer to Fig. 8-12 for the connection wire. The terminal close to CORE is
B-side, and the other end is A-side.
a. CMM-MOD01
b. CMM-PD01
c. CMM-DN01
d. CMM-EIP01
e. CMM-COP01
Fi
