Chapter 2 DimensionsME300
2-2

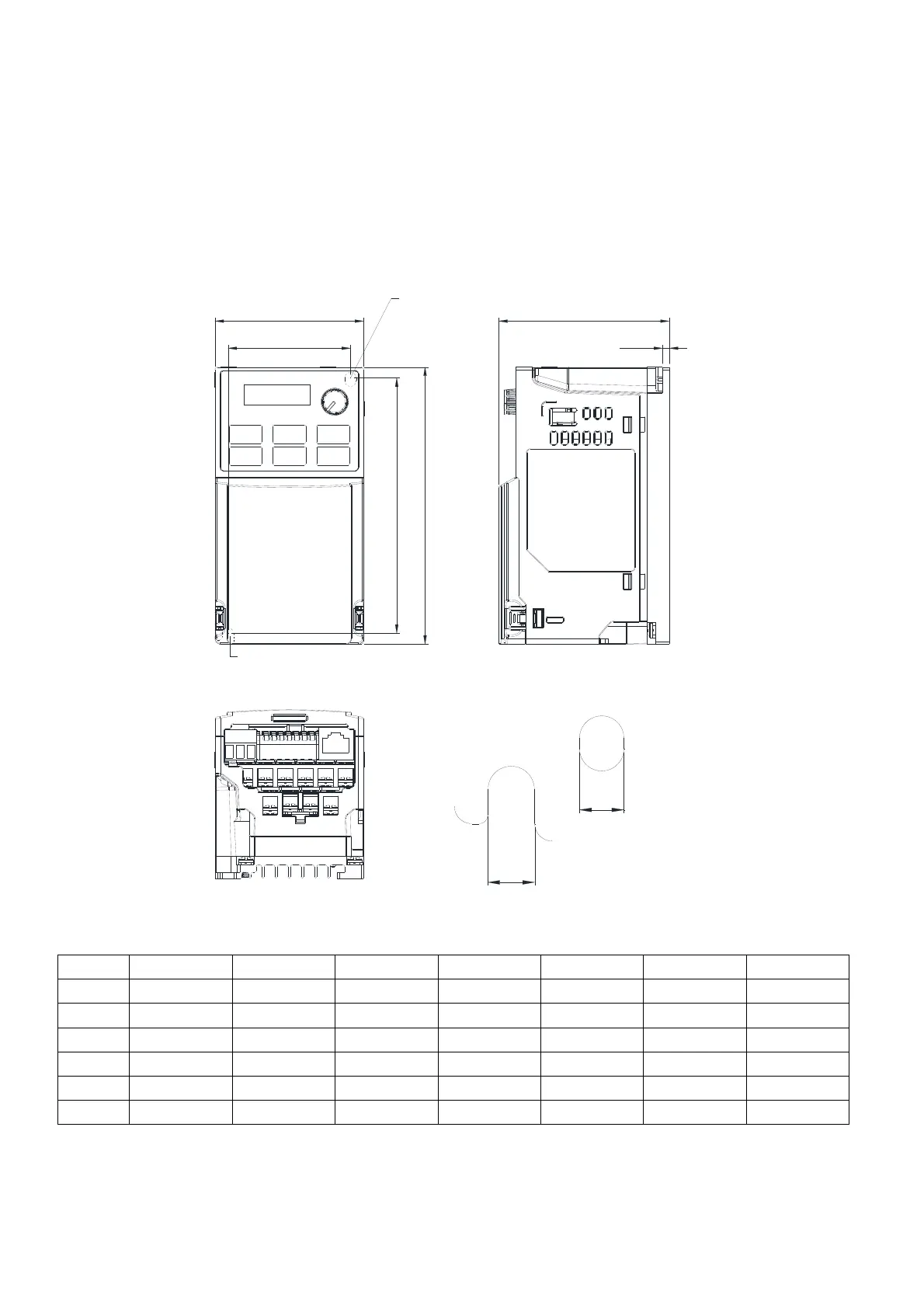

2-1 Frame A
A1: VFD0A8ME11ANNAA; VFD0A8ME11ANSAA; VFD0A8ME21ANNAA; VFD0A8ME21ANSAA;
VFD0A8ME23ANNAA; VFD0A8ME23ANSAA; VFD1A6ME11ANNAA; VFD1A6ME11ANSAA;
VFD1A6ME21ANNAA; VFD1A6ME21ANSAA; VFD1A6ME23ANNAA; VFD1A6ME23ANSAA
A2: VFD2A8ME23ANNAA; VFD2A8ME23ANSAA
A3: VFD2A5ME11ANNAA; VFD2A5ME11ANSAA; VFD2A8ME21ANNAA; VFD2A8ME21ANSAA
A4: VFD1A5ME43ANNAA; VFD1A5ME43ANSAA
A5: VFD4A8ME23ANNAA; VFD4A8ME23ANSAA
A6: VFD2A7ME43ANNAA; VFD2A7ME43ANSAA
Unit: mm [inch]
Frame W H D W1 H1 D1 S1
A1 68.0 [2.68] 128.0 [5.04] 78.0 [3.07] 56.0 [2.20] 118.0 [4.65] 3.0 [0.12] 5.2 [0.20]
A2 68.0 [2.68] 128.0 [5.04] 92.0 [3.62] 56.0 [2.20] 118.0 [4.65] 3.0 [0.12] 5.2 [0.20]
A3 68.0 [2.68] 128.0 [5.04] 107.0 [4.21] 56.0 [2.20] 118.0 [4.65] 3.0 [0.12] 5.2 [0.20]
A4 68.0 [2.68] 128.0 [5.04] 113.0 [4.45] 56.0 [2.20] 118.0 [4.65] 3.0 [0.12] 5.2 [0.20]
A5 68.0 [2.68] 128.0 [5.04] 125.0 [4.92] 56.0 [2.20] 118.0 [4.65] 3.0 [0.12] 5.2 [0.20]
A6 68.0 [2.68] 128.0 [5.04] 127.0 [5.00] 56.0 [2.20] 118.0 [4.65] 3.0 [0.12] 5.2 [0.20]
S1
W1 D1
Detail A (Mounting Hole)
W
See Detail B
H1
See Detail A
S1
H
D
Detail B (Mounting Hole)
