Chapter 12 Description of Parameter SettingsME300
12.1-12-10
Example 3 (Pr.12-40 = 3)
Execute one program cycle step by step

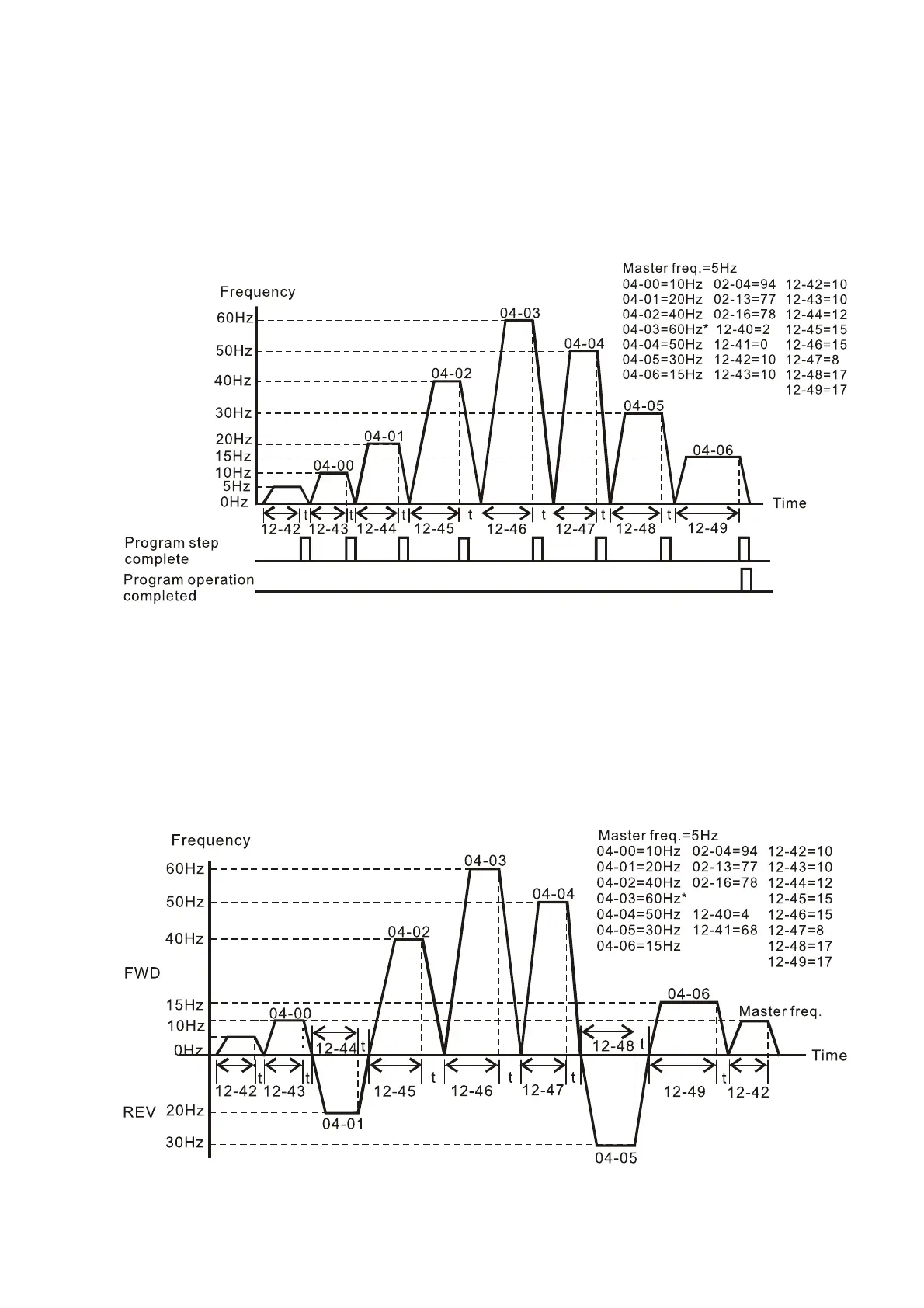

The example shows how the PLC executes one program cycle at a time within a complete cycle.
Each step uses the acceleration/deceleration time.
Noted that the time each step spends at its desired frequency reduces due to the time spent
during acceleration/deceleration.
Example 4 (Pr.12-40 = 4)
Continuously execute PLC cycles step by step
In this example, PLC program runs continuously step by step. The diagram shown below is the
example of steps in reverse direction.
To Next Page
