Delta VFD2A7ME43ANSAA

Chapter 7 Optional AccessoriesME300
7-29

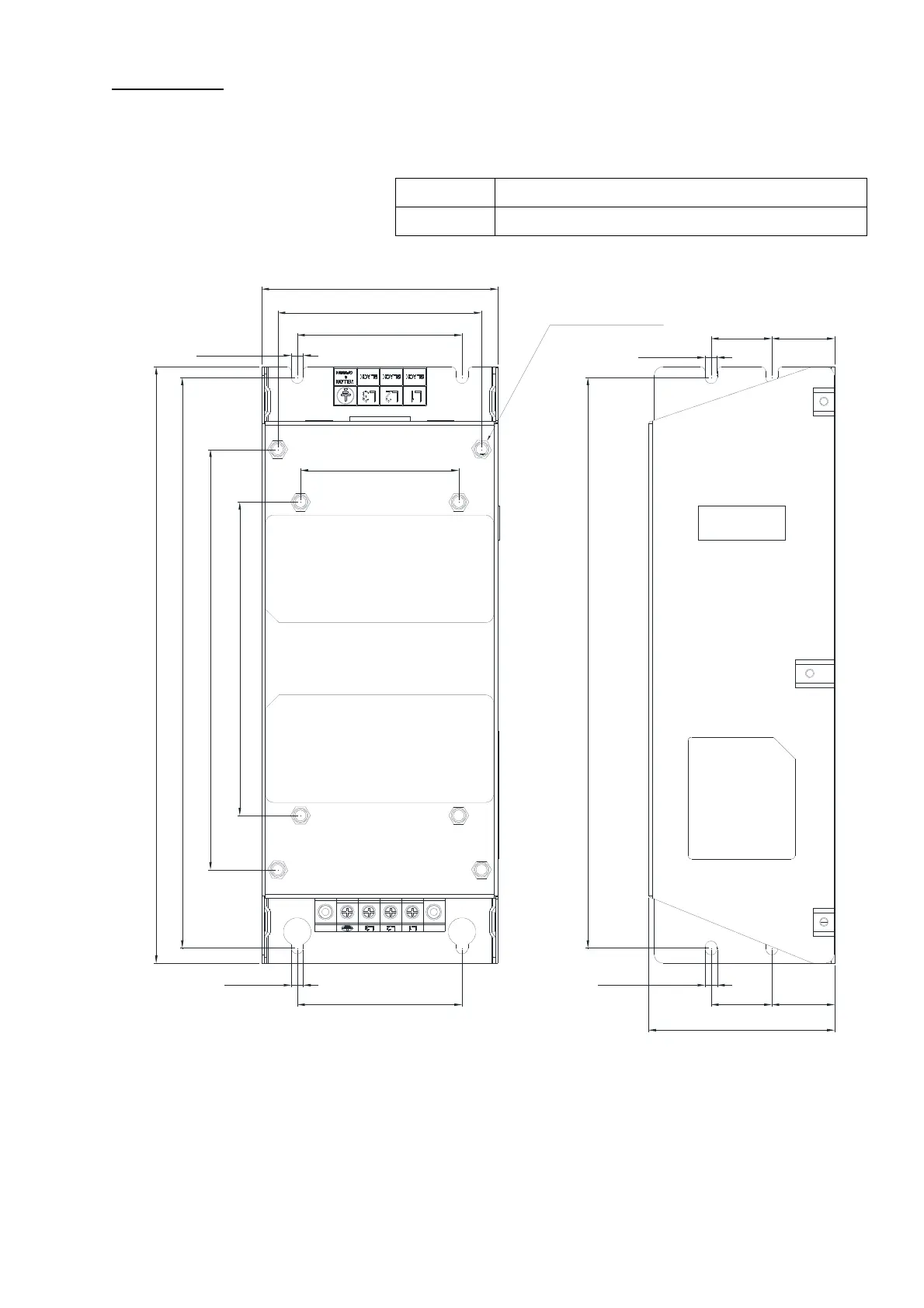

Frame B filter
EMF27AM21B; EMF24AM23B
EMF33AM23B; EMF12AM43B
EMF23AM43B
Screw Torque
M5 * 4 16–18 kg-cm / [13.9–17.3 lb-in.] / [1.56–1.96 Nm]
Unit: mm [inch]
29.1 [1.14]
86.0 [3.39]
263.0 [10.35]
29.1 [1.14]28.0 [1.10]
5.5 [0.22]
5.5 [0.22]
109.0 [4.29]
275.0 [10.83]
263.0 [10.35]
5.5 [0.22]
76.0 [2.99]
76.0 [2.99]
5.5 [0.22]
28.0 [1.10]
193.8 [7.63]
144.5 [5.69]
94.0 [3.70]
73.0 [2.87]
M5 screw
TORQUE:16-18kgf-cm
