Chapter 8 Optional Cards MS300 (High Speed Model)
8-18
 Installation
Connecting CMM-EIP01 to Network
1. Switch off the power supply.
2. Open the front cover of the drive.

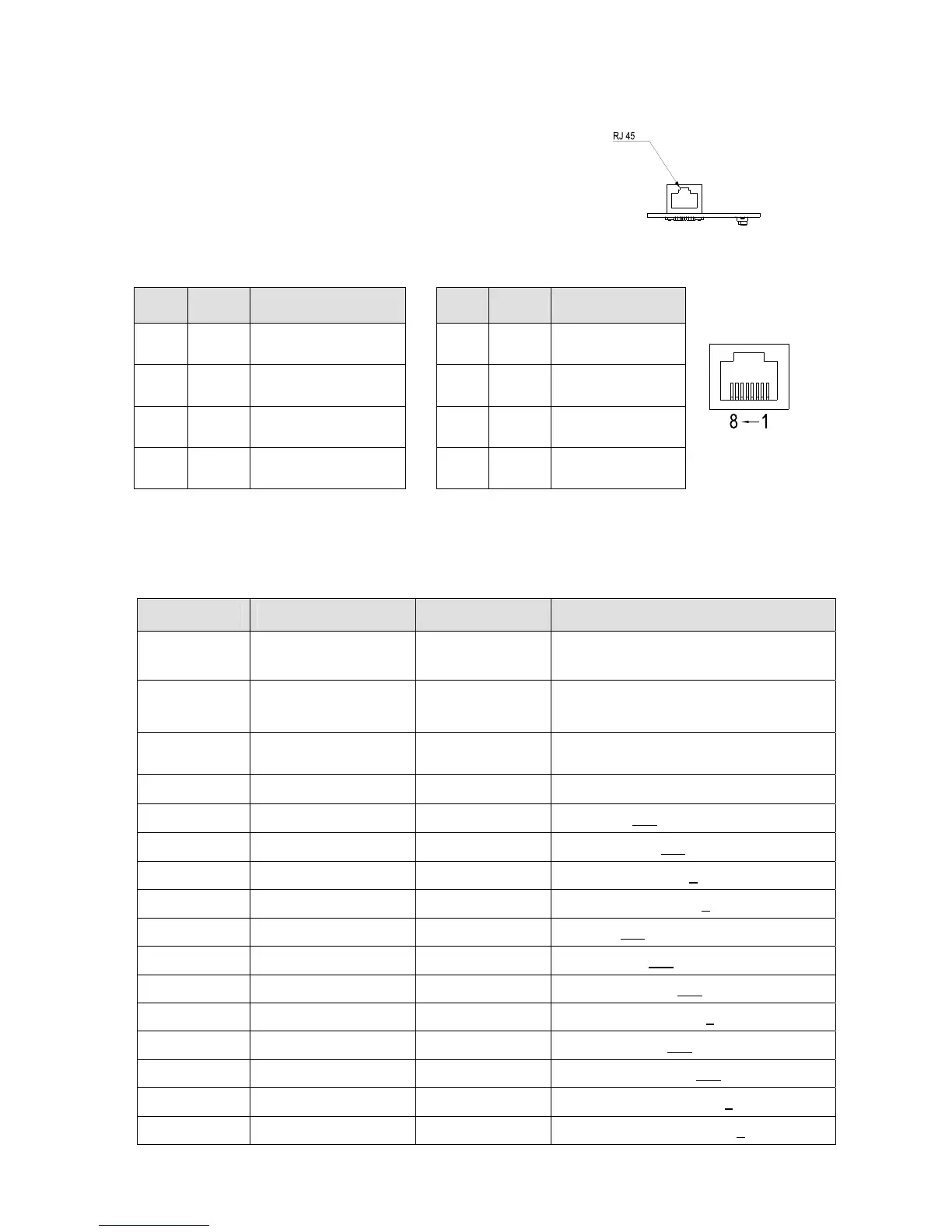

3. Connect CAT-5e network cable to RJ-45 port on CMM-EIP01
(shown in Figure 2).
Figure 2
RJ-45 PIN Definition
PIN Signal Definition PIN Signal Definition
1 Tx+ Data transmit positive 5 -- N/C
2 Tx- Data transmit negative 6 Rx-
Data receive
negative
3 Rx+ Data receive positive 7 -- N/C
4 -- N/C 8 -- N/C
 Communication Parameters for VFD-MS300 Connected to EtherNet
When VFD-MS300 links to EtherNet, please set up the communication parameters based on the table
below. The EtherNet master will be able to read/write the frequency command word and operation command
word of VFD-MS300 after the communication parameters are set.
Parameter Function Current Set Value
Definition of Parameter Values
00-20
Frequency command
source
8
The frequency command is controlled by
option card.
00-21
Operation command
source
5
The operation command is controlled by
option card.
09-30
Decoding method for
communication
0
The decoding method for Delta AC motor
drive
09-75
IP setting
0 Static IP(0) / Dynamic distribution IP(1)
09-76
IP address -1
192 IP address 192.168.1.5
09-77
IP address -2
168 IP address 192.168.1.5
09-78
IP address -3
1 IP address 192.168.1.5
09-79
IP address -4
5 IP address 192.168.1.5
09-80
Netmask -1
255 Netmask 255.255.255.0
09-81
Netmask -2
255 Netmask 255.255.255.0
09-82
Netmask -3
255 Netmask 255.255.255.0
09-83
Netmask -4
0 Netmask 255.255.255.0
09-84
Default gateway -1
192 Default gateway 192.168.1.1
09-85
Default gateway -2
168 Default gateway 192.168.1.1
09-86
Default gateway -3
1 Default gateway 192.168.1.1
09-87
Default gateway -4
1 Default gateway 192.168.1.1
