Chapter 2 Dimensions MS300 (High Speed Model)
2-1

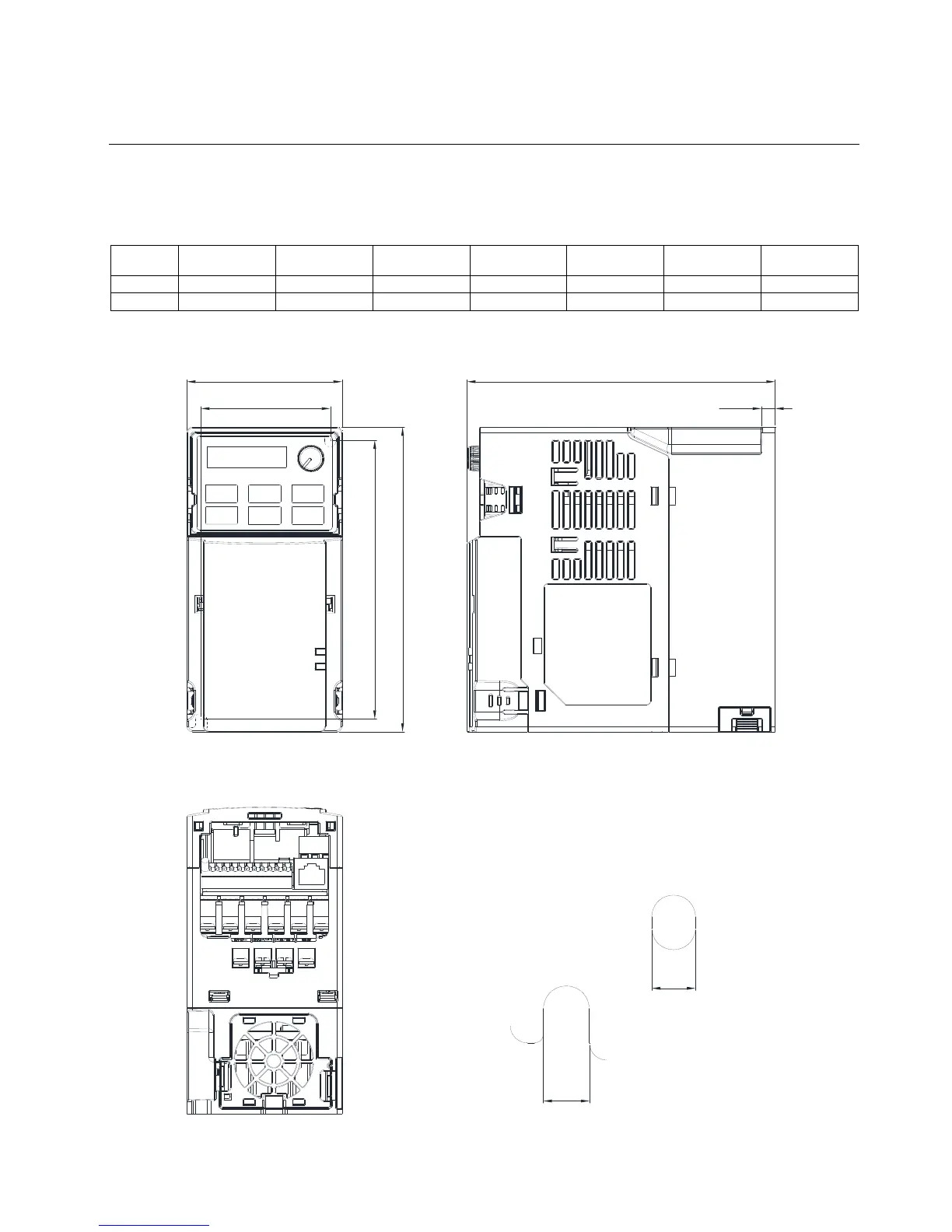

Chapter 2 Dimension
Frame B
B1: VFD7A5MS23ANSHA; VFD7A5MS23ENSHA; VFD4A2MS43ANSHA; VFD4A2MS43ENSHA
B3: VFD4A2MS43AFSHA
Unit: mm [inch]
Frame W H D W1 H1 D1 S1
B1 72.0 [2.83] 142.0 [5.59] 143.0 [5.63] 60.0 [2.36] 130.0 [5.12] 6.4 [0.25] 5.2 [0.20]
B3 72.0 [2.83] 142.0 [5.59] 159.0 [6.26] 60.0 [2.36] 130.0 [5.12] 4.3 [0.17] 5.2 [0.20]
Detail A (Mounting Hole)
S1
S1
W1
W
H1
H
D
D1
Mounting Hole
