Chapter 15 CANopen OverviewMS300 (High Speed Model)
15-6

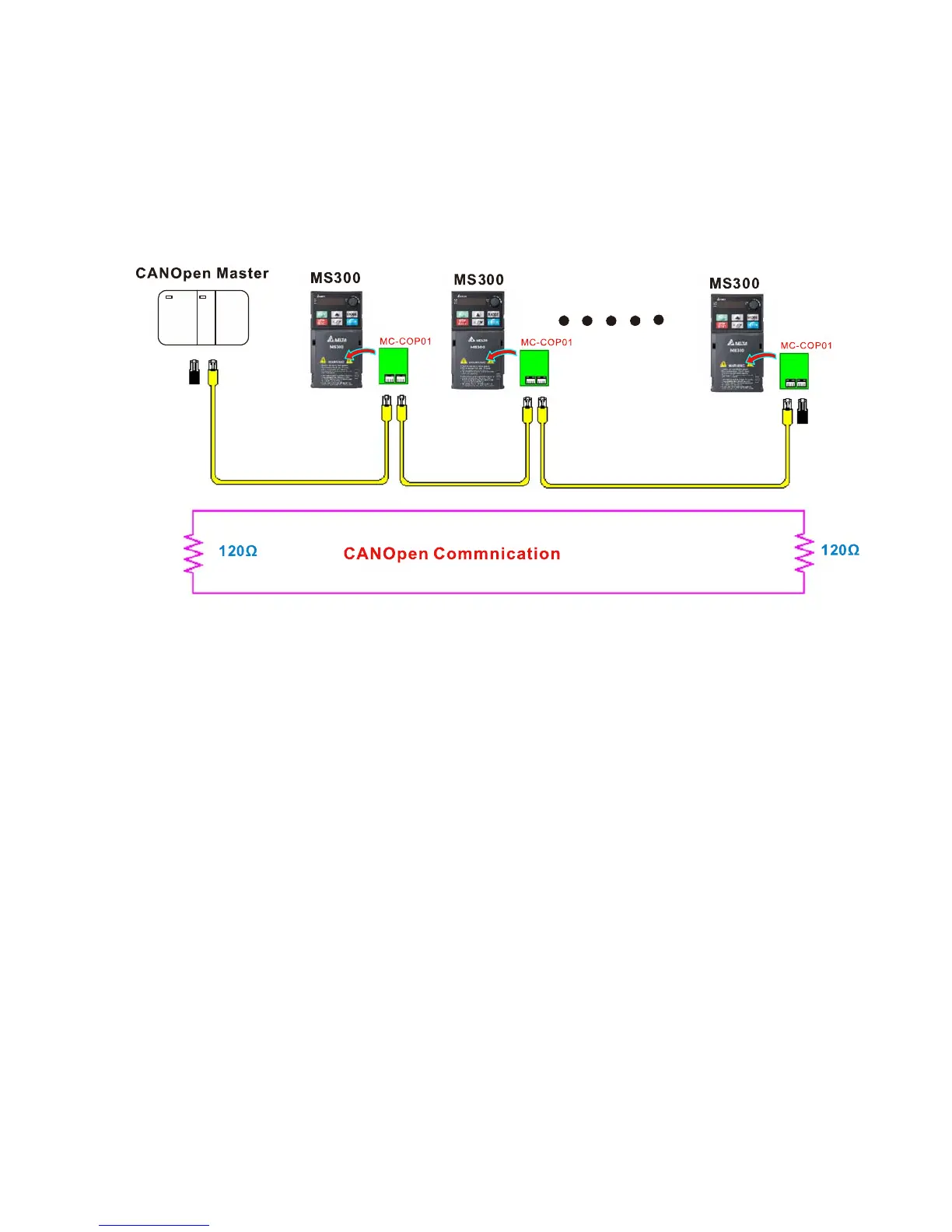

15-2 Wiring for CANopen
An external adapter card: MMC-COP01 is used for CANopen wiring to connect
CANopen to MS300. The link is enabled by using RJ45 cable. The two farthest ends must be
terminated with 120 Ω terminating resistors.
M
M
M
M
Termination
resistor
Termination
resistor
