Delta VFD7A5MS23ANSHA User Manual

Chapter 6 Control TerminalsMS300 (High Speed Model)
6-2
Specifications of Control Terminal
Wire Gauge: 20~18AWG [0.519~0.82 mm
2
]
Specifications of RELAY Terminal
Wire Gauge: 24~16 AWG [0.205~1.3 mm
2
];
Torque: 5 kg-cm / [4.3 Ib-in.] / [0.49 Nm]
Distribution Diagram of Control Terminal
MI1
ACI
AFM
MO1 MO2
DCM DCM
DFM
+10V
MI2 MI3 MI4 MI5
+24V +24V
S1 S2
DCM
SG+ SG-
MCM
+24V
SLOT 1
24P
SGND
32637012
DATAMATRIX
RELAY
RA
RB
RC
ACI
AFM
0-20mA
4-20mA
0-10V
0-10V
USB
Safety function
RS485
Port
MI6 MI7
PNP
NPN
ACM
AVI
0-20mA
4-20mA

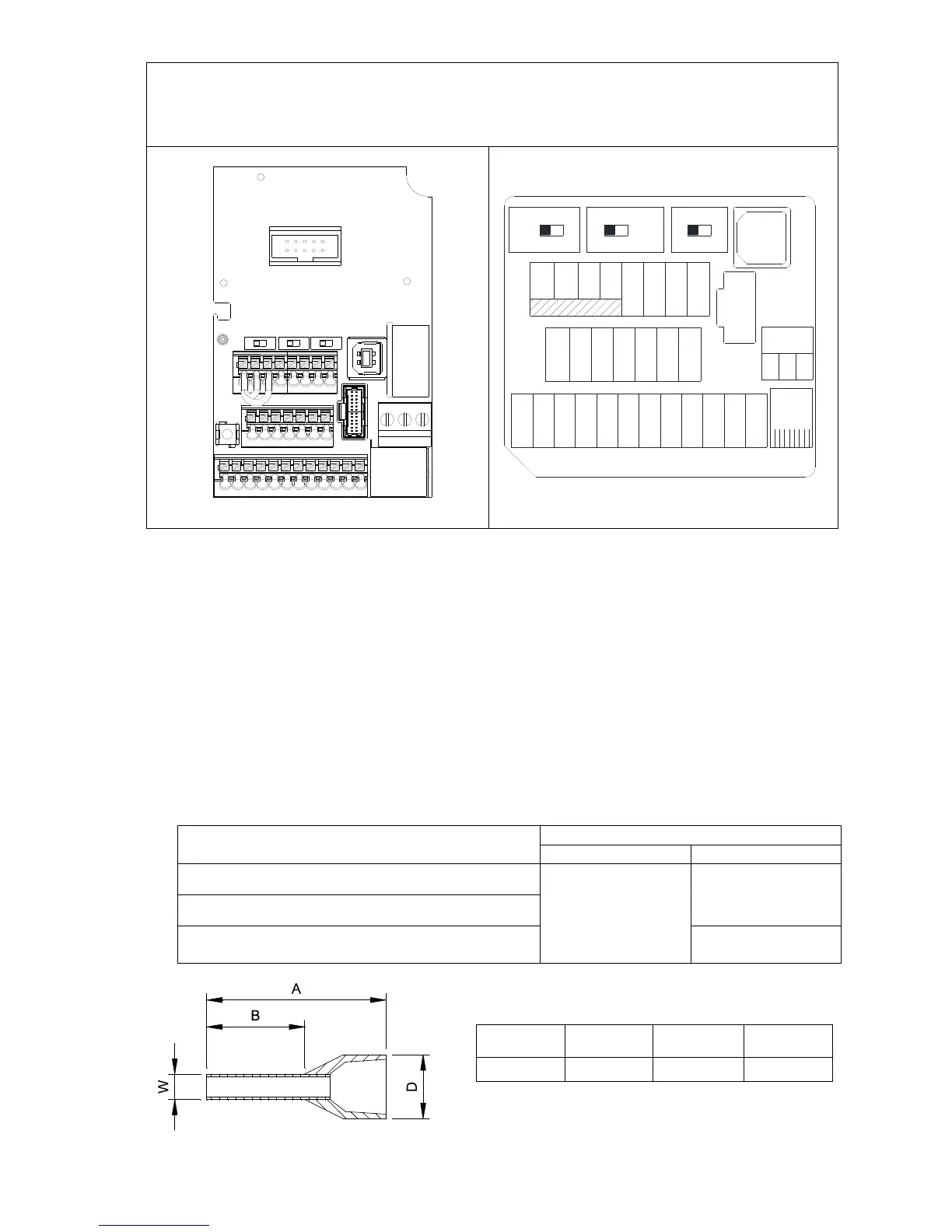

Location Map of Control Terminal
Wiring precautions:
 Delivery condition is +24V/ S1/ S2 shorted by jumper (as shown in figure above), please refer
to Chapter 4 Wiring for more details.
 RELAY terminal is using PCB terminal block:
1. Tighten the wiring with slotted screwdriver, which is 3.5 mm (wide) x 0.6 mm (thick)
2. The ideal length of stripped wire at the connection side is 6~7mm.
3. When wiring bare wires, make sure they are perfectly arranged to go through the wiring
holes.
 Control terminal is using spring clamp terminal block:
1. Tighten the wiring with slotted screwdriver, which is 2.5 mm (wide) x 0.4 mm (thick)
2. The ideal length of stripped wire at the connection side is 9mm.
3. When wiring bare wires, make sure they are perfectly arranged to go through the wiring
holes.
Wiring Specifications of Control Terminal
Wire Gauge (AWG)
Min. Wire Gauge Max. Wire Gauge
Conductor cross section solid
20 AWG
[0.519 mm
2
]
18 AWG
[0.82 mm
2
]
Conductor cross section stranded
Stranded with ferrules with plastic sleeve
20 AWG
[0.519 mm
2
]
Ferrule: Type: AI 0,5 - 8 WH ,
Manufacturer: PHOENIX CONTACT
A B
D
(
MAX
)
W
14 8 3.5 1.4
Unit: mm
