Delta VFD7A5MS23ANSHA User Manual

Chapter 8 Optional Cards MS300 (High Speed Model)
8-7
 Installation: B side of the connecting wire connects to connection port on option card as No.3 of
CMM-MOD01 shown in Fig. 8-13. See each section in Chapter 8 for connection port of
other option cards; A side of the connecting wire connects to connection port on control
board
as red circles shown in Fig. 8-13 ~ 8-15.

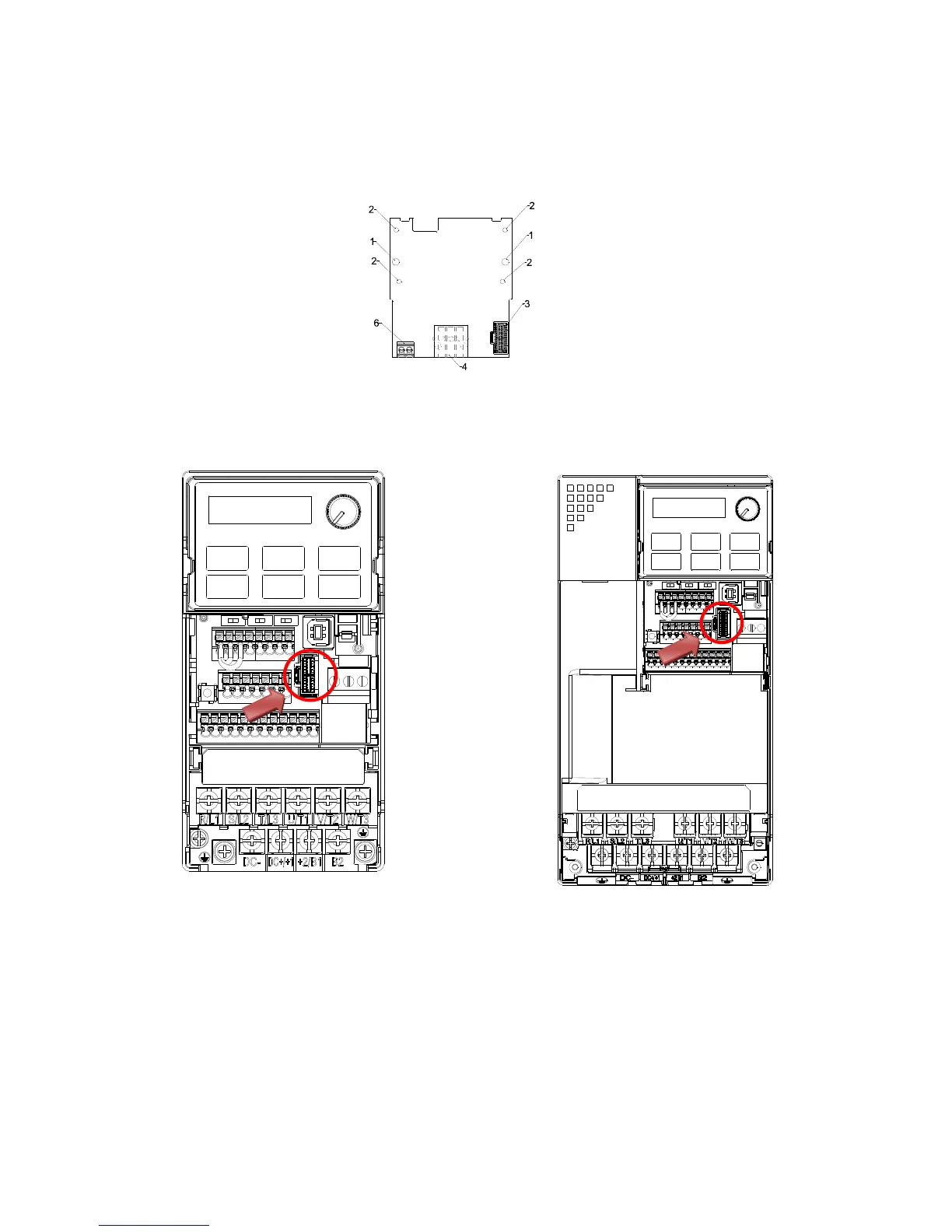

Frame B~C Frame D~E
Fig. 8-13
Fig. 8-14
Fig. 8-15

Delta VFD7A5MS23ANSHA Specifications

General

Brand	Delta
Model	VFD7A5MS23ANSHA
Category	Controller
Language	English
