NO.3 Wiring
9
[Note] NPN type wiring mode shall be adopted in case of P067=0.

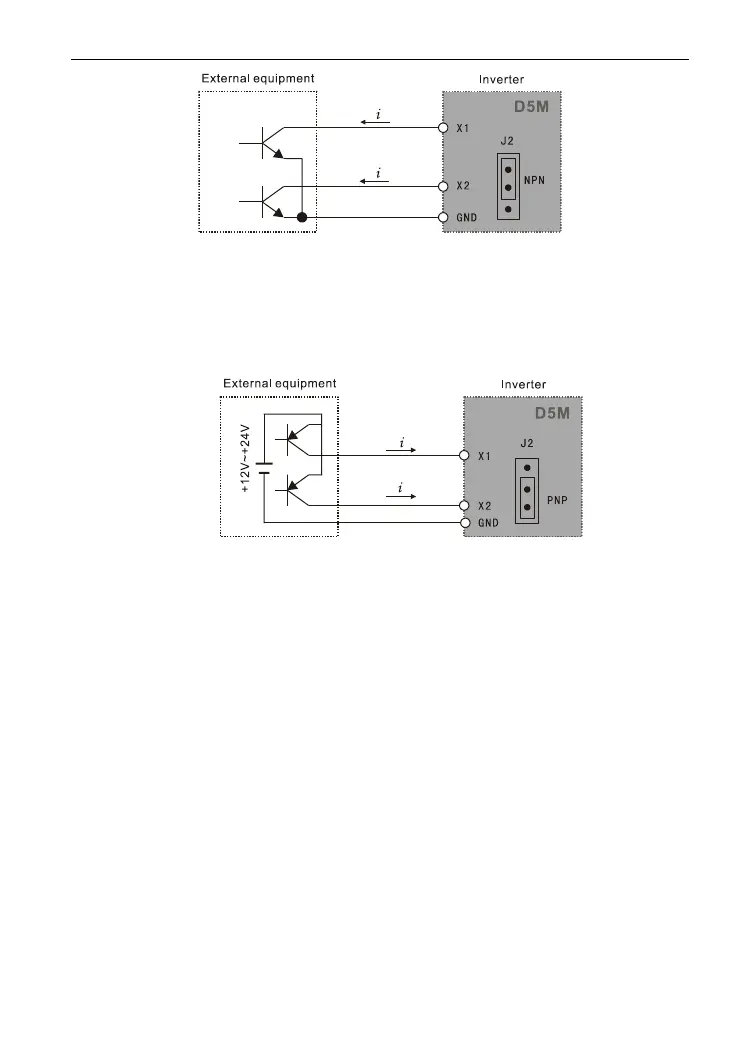

Figure 3-1 NPN Type Wiring Mode
(2) When PNP type wiring mode is adopted for external equipment, source-type logic is
induced, and the current flows into from input terminal (sinking current) as shown in Figure
3-2, at the same time parameter P067=1 is required.
[Note] PNP type wiring mode shall be adopted in case of P067=1, at this time 9v
above at input terminal is high level.
Figure 3-2 PNP Type Wiring Mode
