DEMA D6B Series User Manual

NO.8 Selection and Configuration of Peripheral Facilities
83
8.2 Configuration
1. AC reactor configuration
Model
Matched power (W)
Rated current (A)
Inductance (mH)
220V
0.4
2.5
4.2
0.75
5
2.1
1.5
10
1.1
2.2
15
0.71
380V
0.4
1.3
18
0.75
2.5
8.4
1.5
5
4.2
2.2
7.5
3.6
3.0
10
2.8
4.0
12
2.2
5.5
15
1.4
7.5
20
1.0
11
24
0.52
15
34
0.397
18.5
38
0.352
Line reactor, through which alternating current flows, is also called commutation reactor and
applied to network incoming line and it is used for suppressing inverter harmonic and
feedbacking to the network.

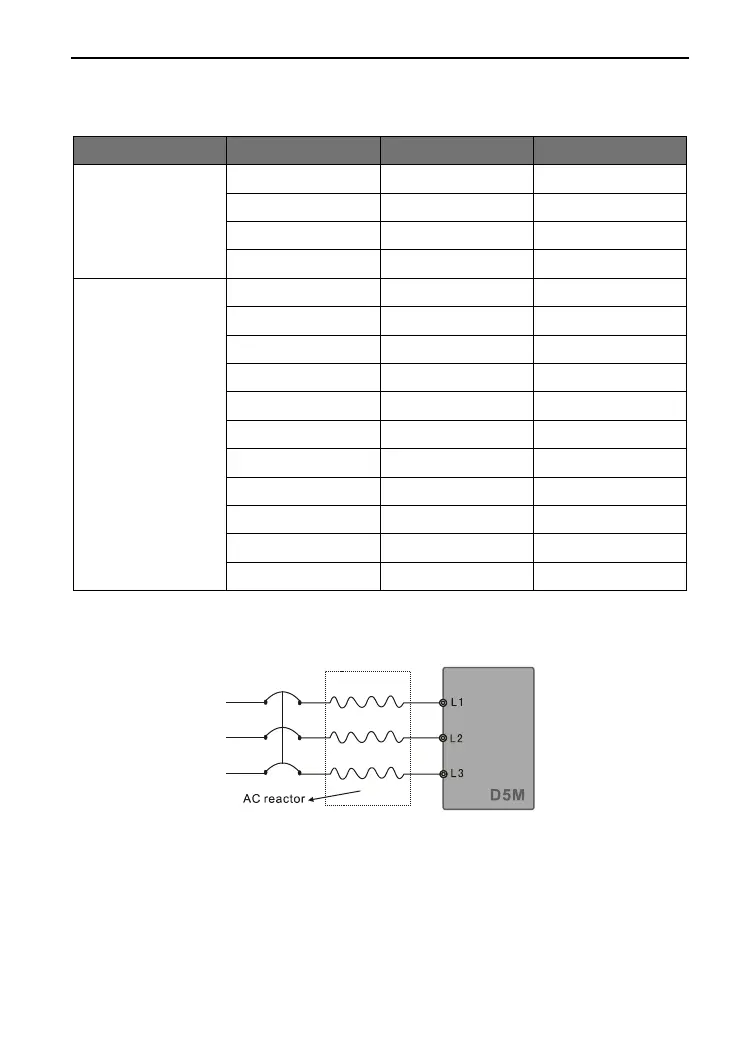

Figure 8-1 AC Reactor
