NO.3 Wiring
3.6 Basic wiring diagram
Inverter wiring involves main circuit and control circuit. The user can raise the cover of
housing, at this time main circuit terminal and control circuit terminal shall be viewed, and the
user must conduct correct connection as per wiring circuit below.

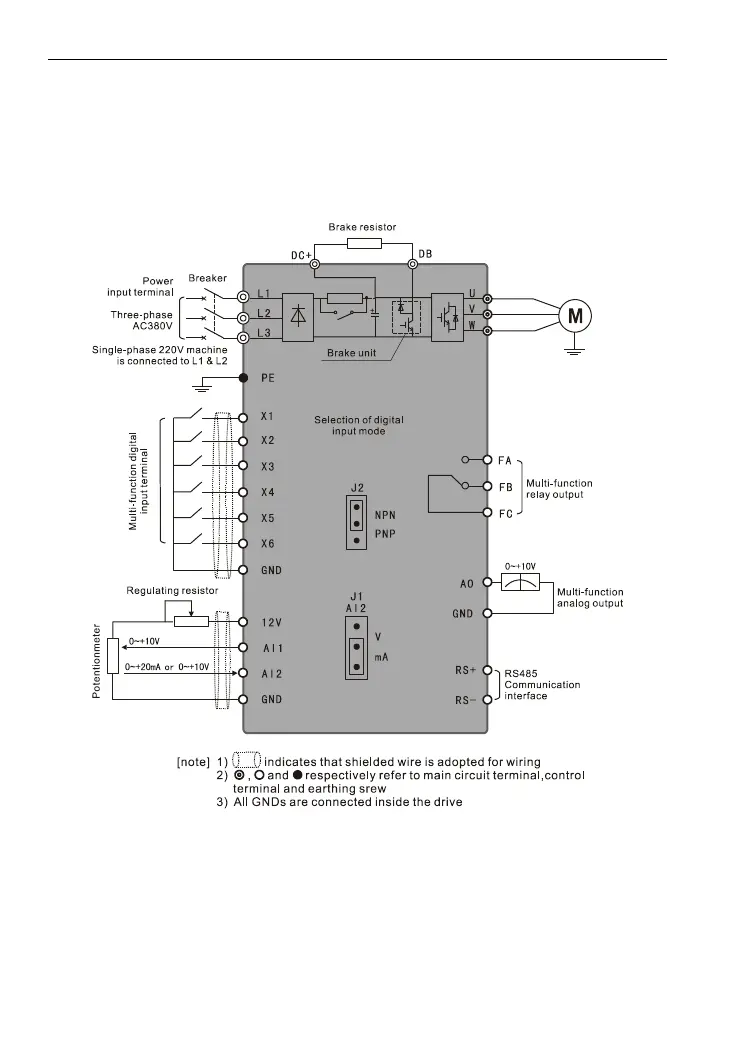

Figure 3-3 below refers to standard wiring diagram of ex-factory D5M series.
Figure 3-3 Standard Wiring of D5M series ,D6B series Inverter
