NO.6 Detailed Function Description
This parameter can realize the jog function in machine testing and jog operation only can be
realized through 6-way programmable terminals. Jog frequency is limited by maximum
operation frequency and lower frequency limit. When the jog function is enabled, other
operating command will not be accepted and the acceleration time of jog frequency is
determined by acceleration time IV. After the jog button is released, inverter will immediately
stop output. When realizing the jog function, please set any one of corresponding 6-way
programmable terminals as 07 or 08.
Jog function is only valid under shutdown status but invalid during running.
Refer to P044-P049 for relevant parameters.
This parameter is used to set the soft start or soft stop without impact during start or stop of
inverter; when S curve is started, the inverter will make the acceleration/deceleration curves
with different speed as per the acceleration/deceleration time. Refer to Figure 6-6 for S curve
time description.

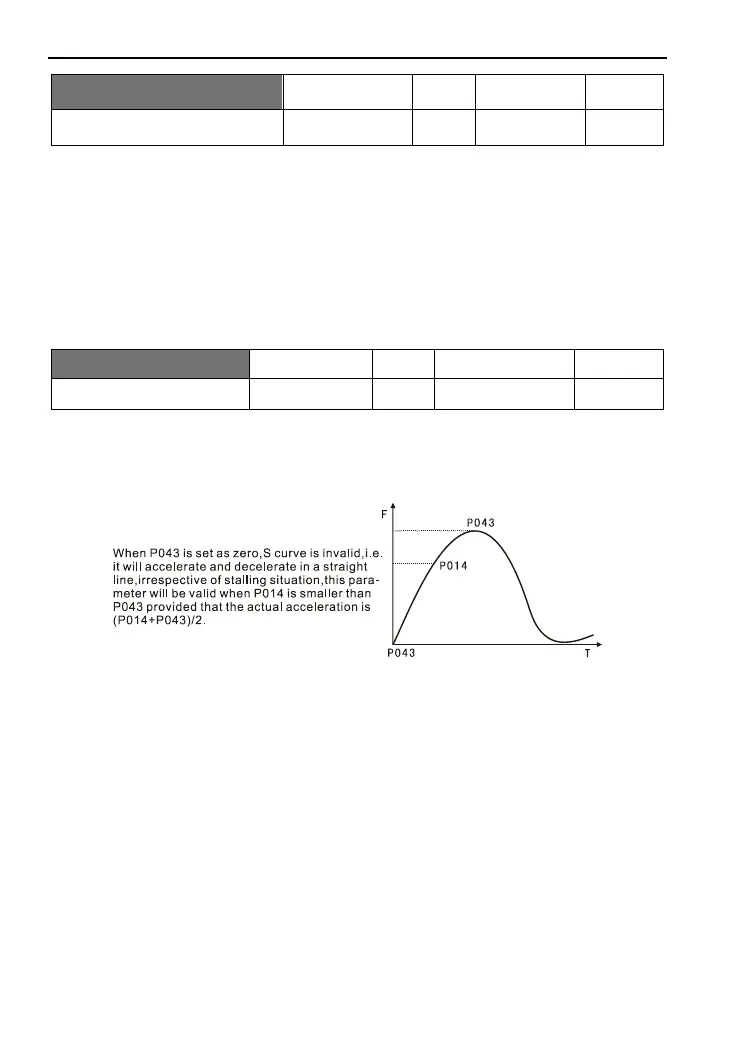

Figure 6-6 S Curve Time
