Denon AVR-1507 Service Manual

8
AVR-1707/1507/687/587/487

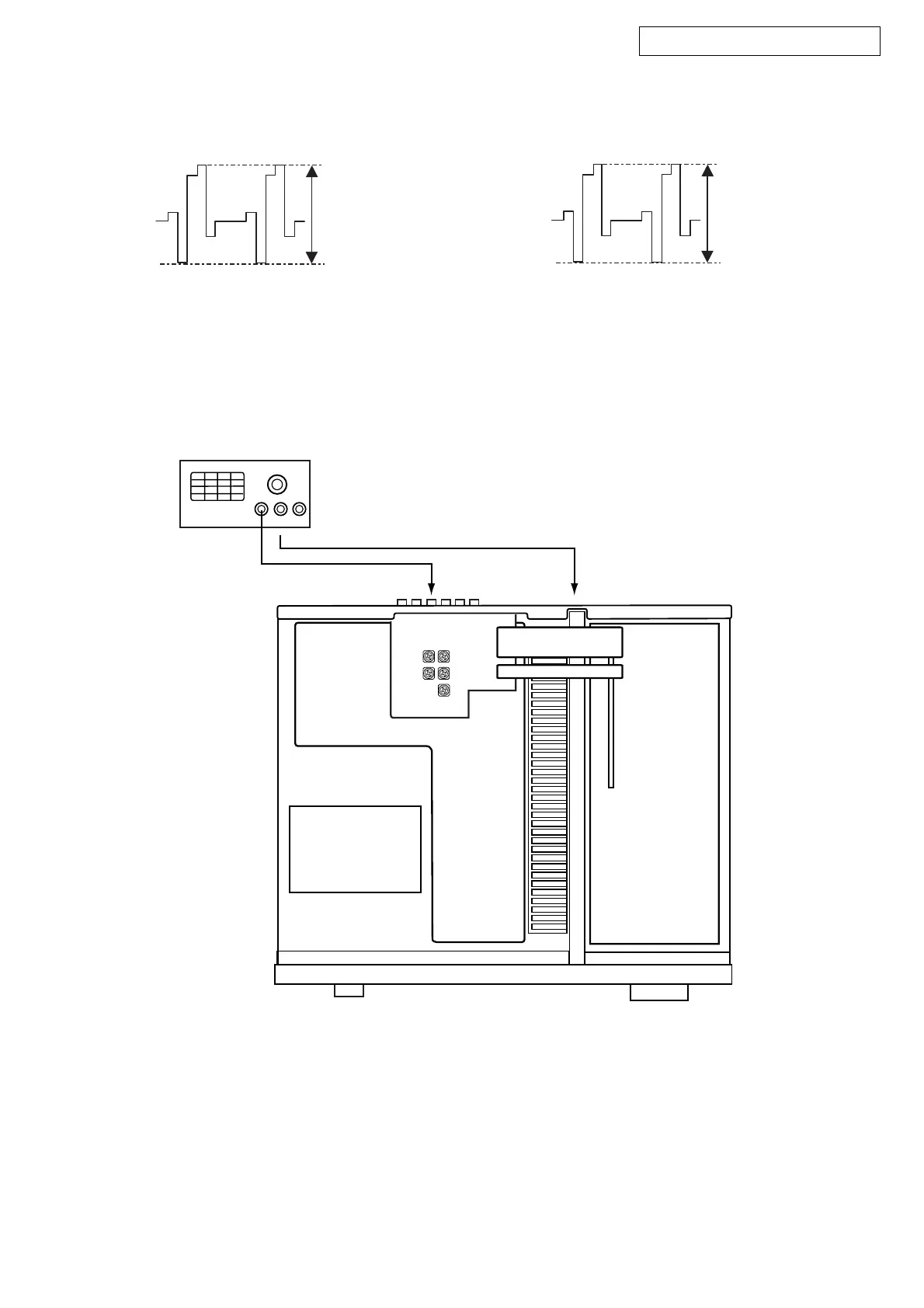

(c) PR/CR 信号レベル
調整個所 ： C-SVIDEO1VR603
調整値 ： 525 ± 10ｍV
波形
PR/CR
COMPONENTOUT の PR/CR 信号レベル
(c) Target, P
R/CR-signal
Point : C-S VIDEO 1 VR603
Adjustment Value : *525 ± 10mV
Waveform
* : 486 ± 10mV for U.S.A. & Canada model
C-S VIDEO 1 UNIT
PR/CR-signal COMPONENT OUT
PR/CR
Oscilloscope
COMPONENT VIDEO
MONITOR OUT
(Y,P
B /C B ,P R /C R )
S-VIDEO
MONITOR OUT
(Y,C)
Video Section
VR603
VR604
VR605
VR602
VR601
Pb
Pr
Py
Y
C

Denon AVR-1507 Specifications

General

Digital Inputs	2 Optical, 1 Coaxial
Analog Inputs	5
Tuner	AM/FM
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	98 dB
Total Harmonic Distortion	0.08%
Input Sensitivity	200 mV
Digital Sound Processor (DSP)	Yes
HDMI Switching	No
Tuner Frequency Range	FM: 87.5 - 108 MHz, AM: 522 - 1611 kHz
Surround Sound	Dolby Digital, DTS, Dolby Pro Logic II
Input Impedance	47 kOhm
Power Output	75 W per channel (8 ohms, 20 Hz - 20 kHz, 0.08% THD)
DSP Presets	5-channel stereo, Cinema EQ
