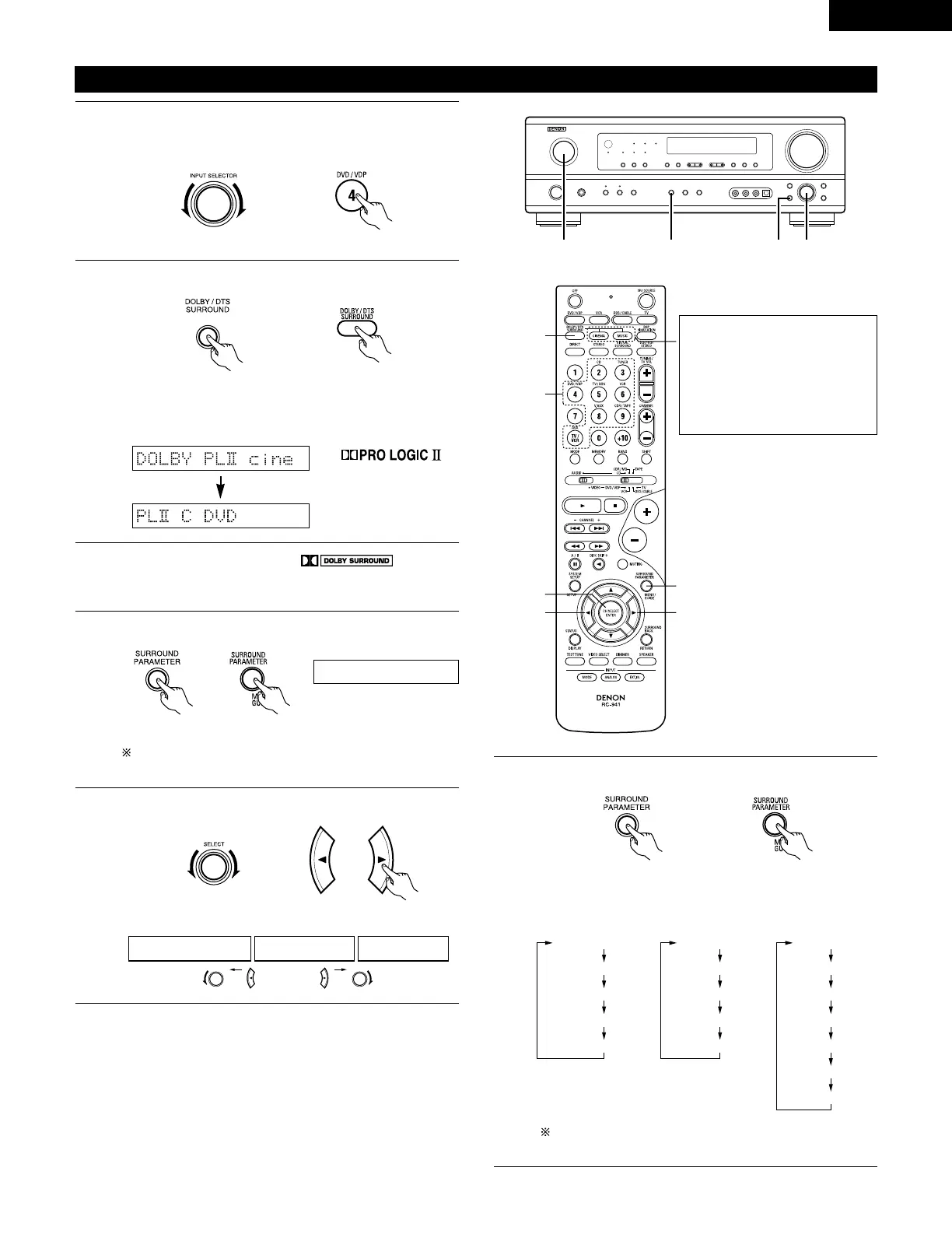

Denon AVR-1604 Operating Instructions

39
ENGLISH
Dolby Surround Pro Logic
II
mode
2
Select the Dolby Surround Pro Logic II mode.
Light
(Main unit)
(Remote control unit)
3
Play a program source with the mark.
• For operating instructions, refer to the manuals of the
respective components.
5, 74, 61 2
4, 6
5, 7
1
8
5, 7
2
4
Select the surround parameter mode.
MODE Dolby PL
CINEMA EQ
TONE DEFEAT
DEFAULT
MODE CINEMA
CINEMA EQ
TONE DEFEAT
DEFAULT
MODE MUSIC
PANORAMA
DIMENSION
CENTER WIDTH
DEFAULT
TONE DEFEAT
SURROUND BACK
SURROUND BACK
SURROUND BACK
or or
MODE musicMODE cinemaMODE DOLBY PL
1
Select the function to which the component you want to play
is connected.
Example: DVD
(Main unit) (Remote control unit)
Display
(Main unit) (Remote control unit)
To perform this operation from the remote control unit,
check that the mode selector switch is set to “AUDIO”.
Display
5
Select the optimum mode for the source.
(Main unit) (Remote control unit)
6
Set the surround parameters according to the mode.
(Main unit) (Remote control unit)
• The mode switches as shown below each time the button
is pressed.
• The Dolby Pro Logic indicator lights.
The Dolby Surround Pro Logic II
Cinema or Music mode can be
chosen directly by pressing the
CINEMA or MUSIC button on
the remote control unit during
playback in the Dolby Surround
Pro Logic II mode.
MODE cinema
If you do want the bass and trable to be adjusted, turn off
the tone defeat mode.

Denon AVR-1604 Specifications

General

Speakers connectivity type	-
Receiver type	Surround
Audio output channels	6.1 channels
Power output per channel (1KHz@6 Ohm)	110 W
Power output per channel (20-20KHz@8 Ohm)	75 W
Ethernet LAN	No
Supported radio bands	AM, FM
Product color	Black
Audio decoders	DTS Neo:6, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1), Dolby Digital, Dolby Digital EX, Dolby Pro Logic II

Weight and Dimensions

Depth	417 mm
Width	434 mm
Height	147 mm
