Denon AVR-1604 Operating Instructions

6
ENGLISH
5

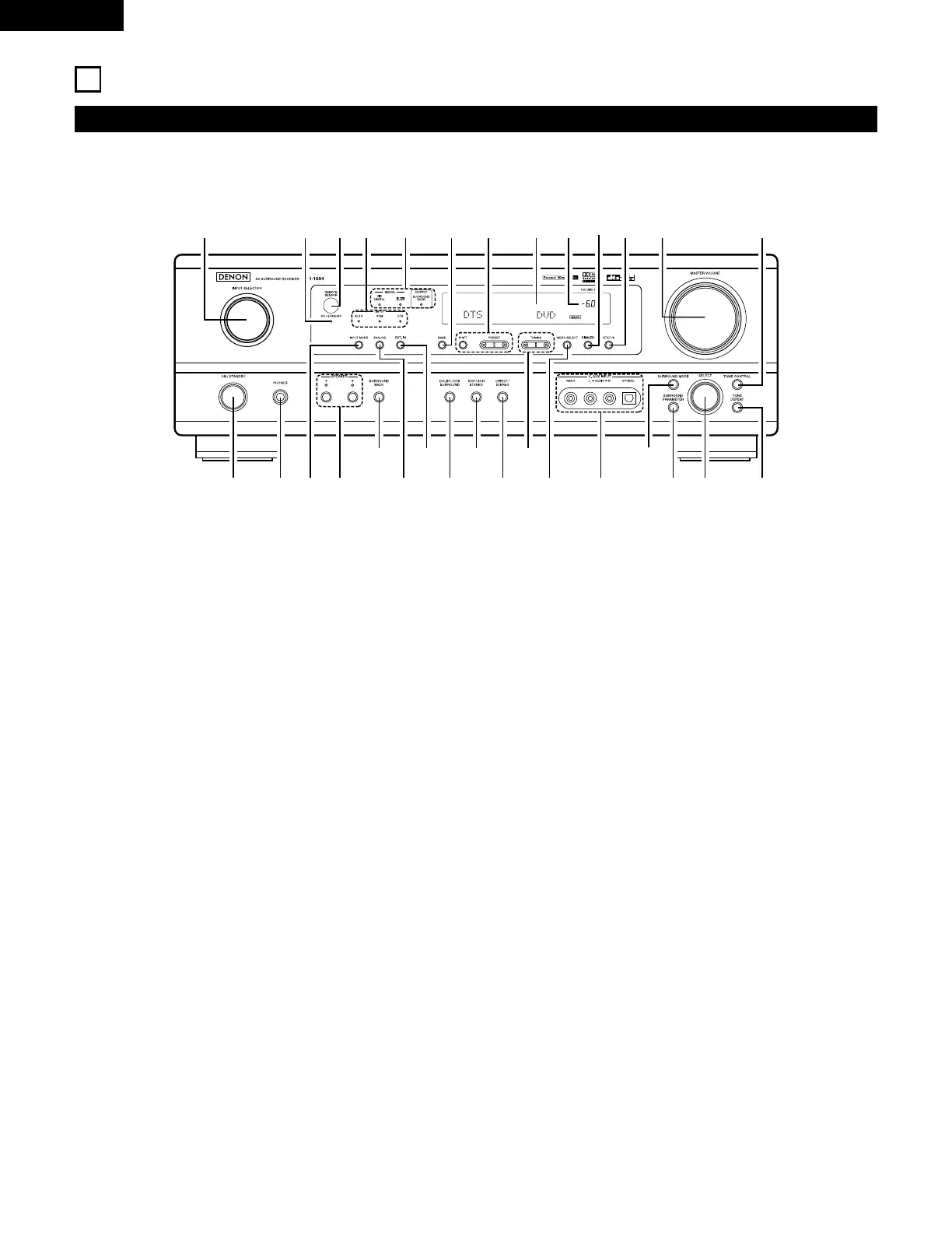

PART NAMES AND FUNCTIONS
Front Panel
• For details on the functions of these parts, refer to the pages given in parentheses ( ).
q w
u
e ir
y
o!4t !1
@1@2
@3@4@5@6@7@8@9
!2 !3 !5 !6 !7!0
!8@0 !9#0
q
Power operation switch ..............................................(18, 32, 51)
w
Headphones jack (PHONES)....................................................(35)
e
INPUT MODE button...................................................(33, 36, 43)
r
SPEAKER A/B buttons.......................................................(32, 54)
t
SURROUND BACK button ......................................................(43)
y
ANALOG button ................................................................(33, 36)
u
EXT. IN button ...................................................................(33, 36)
i
DOLBY/DTS SURROUND button................................(37, 39, 43)
o
5CH/6CH STEREO button .................................................(46, 49)
!0
DIRECT/STEREO button..........................................................(46)
!1
TUNING D (up) / H (down) buttons.........................................(52)
!2
VIDEO SELECT button ............................................................(35)
!3
V. AUX terminals..................................................................(4, 11)
!4
SURROUND MODE button...............................................(34, 49)
!5
SURROUND PARAMETER button.....................................(39, 47)
!6
SELECT knob...............................................................(34, 39, 49)
!7
TONE DEFEAT button .............................................................(34)
!8
TONE CONTROL button..........................................................(34)
!9
MASTER VOLUME control......................................................(34)
@0
STATUS button ........................................................................(35)
@1
DIMMER button ......................................................................(35)
@2
Master volume indicator (VOLUME LEVEL)............................(34)
@3
Display
@4
Preset station select buttons ............................................(51, 53)
@5
BAND button ...........................................................................(52)
@6
SIGNAL indicators....................................................................(34)
@7
INPUT mode indicators............................................................(34)
@8
Remote control sensor (REMOTE SENSOR) ..........................(16)
@9
Power operation indicator (ON/STANDBY)
#0
INPUT SELECTOR knob..........................................................(33)

Denon AVR-1604 Specifications

General

Speakers connectivity type	-
Receiver type	Surround
Audio output channels	6.1 channels
Power output per channel (1KHz@6 Ohm)	110 W
Power output per channel (20-20KHz@8 Ohm)	75 W
Ethernet LAN	No
Supported radio bands	AM, FM
Product color	Black
Audio decoders	DTS Neo:6, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1), Dolby Digital, Dolby Digital EX, Dolby Pro Logic II

Weight and Dimensions

Depth	417 mm
Width	434 mm
Height	147 mm
