Denon AVR-1604 Operating Instructions

8
ENGLISH
6
READ THIS FIRST
This AV Surround Receiver must be setup before use. Following these steps.
7
SETTING UP THE SPEAKER SYSTEMS
Step 3 (page 17 to 26)
Finally, setting up the system.
Step 2 (page 16)
Next, insert the batteries into the remote control unit.
Step 1 (page 8 to 15)
Choose the best location to setup the Speakers and connecting the components.

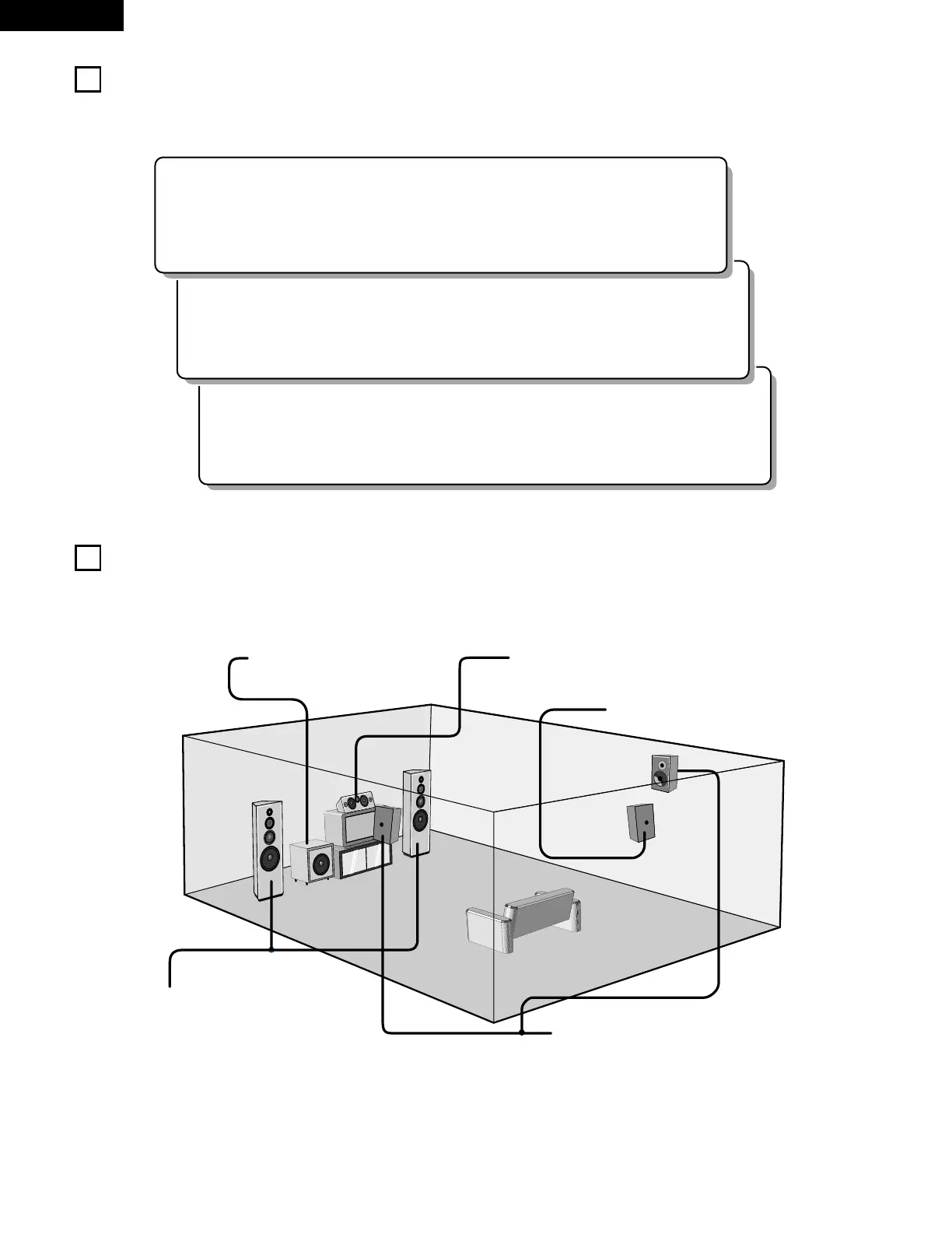

2 Speaker system layout
Basic system layout
• The following is an example of the basic layout for a system consisting of seven speaker systems and a television monitor:
Subwoofer Center speaker system
Surround speaker systems
Surround back speaker system
Front speaker systems
Set these at the sides of the TV or screen with
their front surfaces as flush with the front of the
screen as possible.

Denon AVR-1604 Specifications

General

Speakers connectivity type	-
Receiver type	Surround
Audio output channels	6.1 channels
Power output per channel (1KHz@6 Ohm)	110 W
Power output per channel (20-20KHz@8 Ohm)	75 W
Ethernet LAN	No
Supported radio bands	AM, FM
Product color	Black
Audio decoders	DTS Neo:6, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1), Dolby Digital, Dolby Digital EX, Dolby Pro Logic II

Weight and Dimensions

Depth	417 mm
Width	434 mm
Height	147 mm
