Denon AVR-1610 Service Manual

Video SIGNAL LINE
Component Y SIGNAL LINE
Y
Cb
Cr
COMP_SW1
CVBS
V.EXPOE
V.EXPDIN
CVBS DET
DAC MUTE
SYNCDET_S
VGND
COMP_SW2
VGND VGND
DVD_INH
V.EXPSTB
V.EXPCLK
COMP DET
COMP_MUTE
87654321
A
B
C
D
E
F

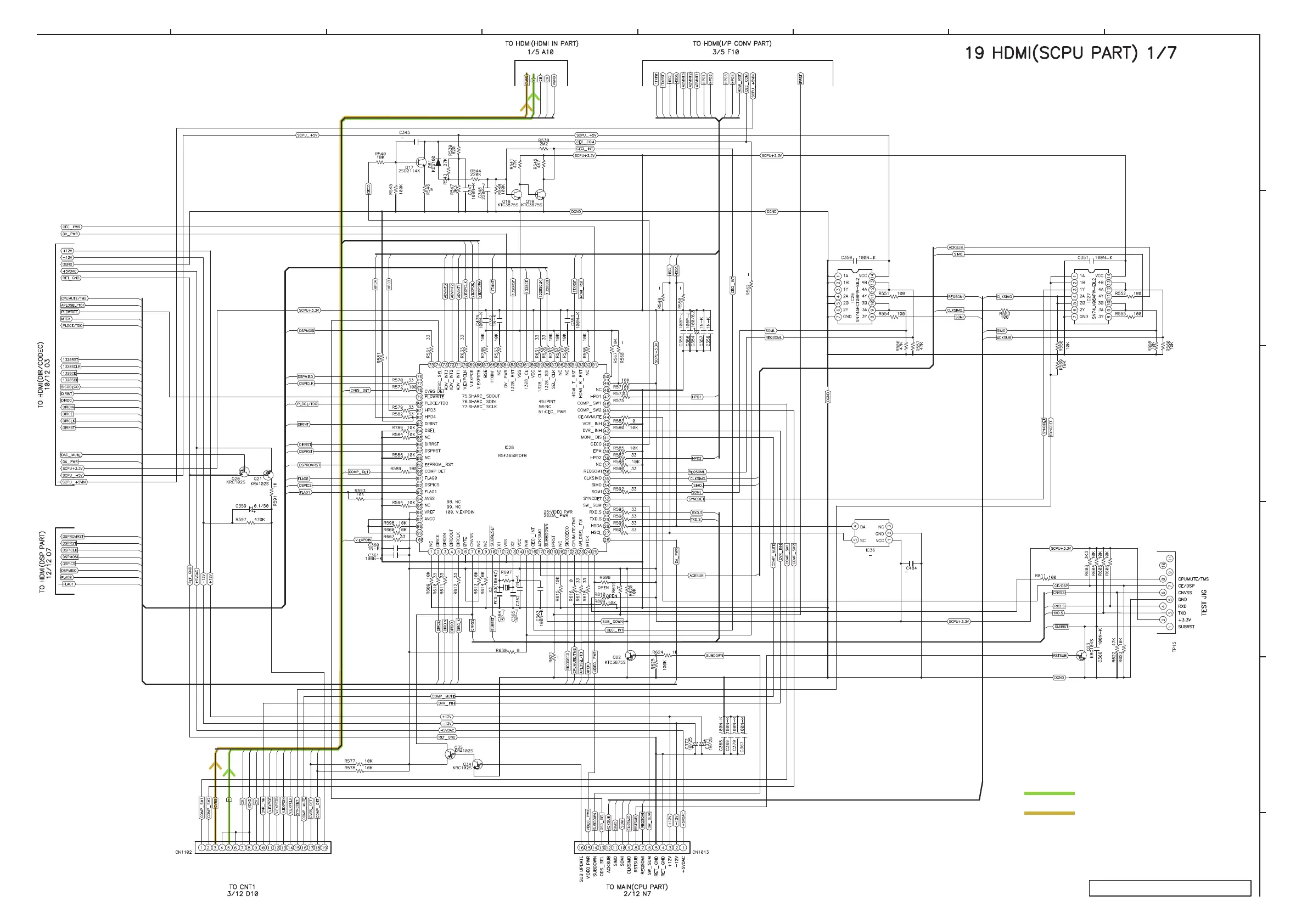

SCHEMATIC DIAGRAMS (1/25)
19 HDMI UNIT (1/7) (1910/790 model)
SCPU PART
AVR-1910/1620/1610/790/590

Denon AVR-1610 Specifications

General

Channels	5.1
Power Output	75 W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
HDMI Inputs	4
HDMI Outputs	1
Signal-To-Noise Ratio	98 dB
THD	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Surround System Class	5.1 channel
HDMI Switching	Yes
3D Technology	Yes
Input Sensitivity/Impedance	200 mV / 47 kOhm
HDMI Version	1.3a
Dolby Formats	Dolby Digital, Dolby Digital Plus
DTS Formats	DTS, DTS Neo:6, DTS 96/24
Audyssey	MultEQ
Amplifier Output Details	75 W per channel at 8 ohms, 20 Hz to 20 kHz, 0.08% THD
Response Bandwidth	10Hz - 100kHz
Audio D/A Converter	192 kHz/24-bit
Frequency Response	10 Hz to 100 kHz
Video Inputs/Outputs	Composite, Component
Audio Inputs/Outputs	Digital Optical
