14
AVR-1910/1620/1610/790/590

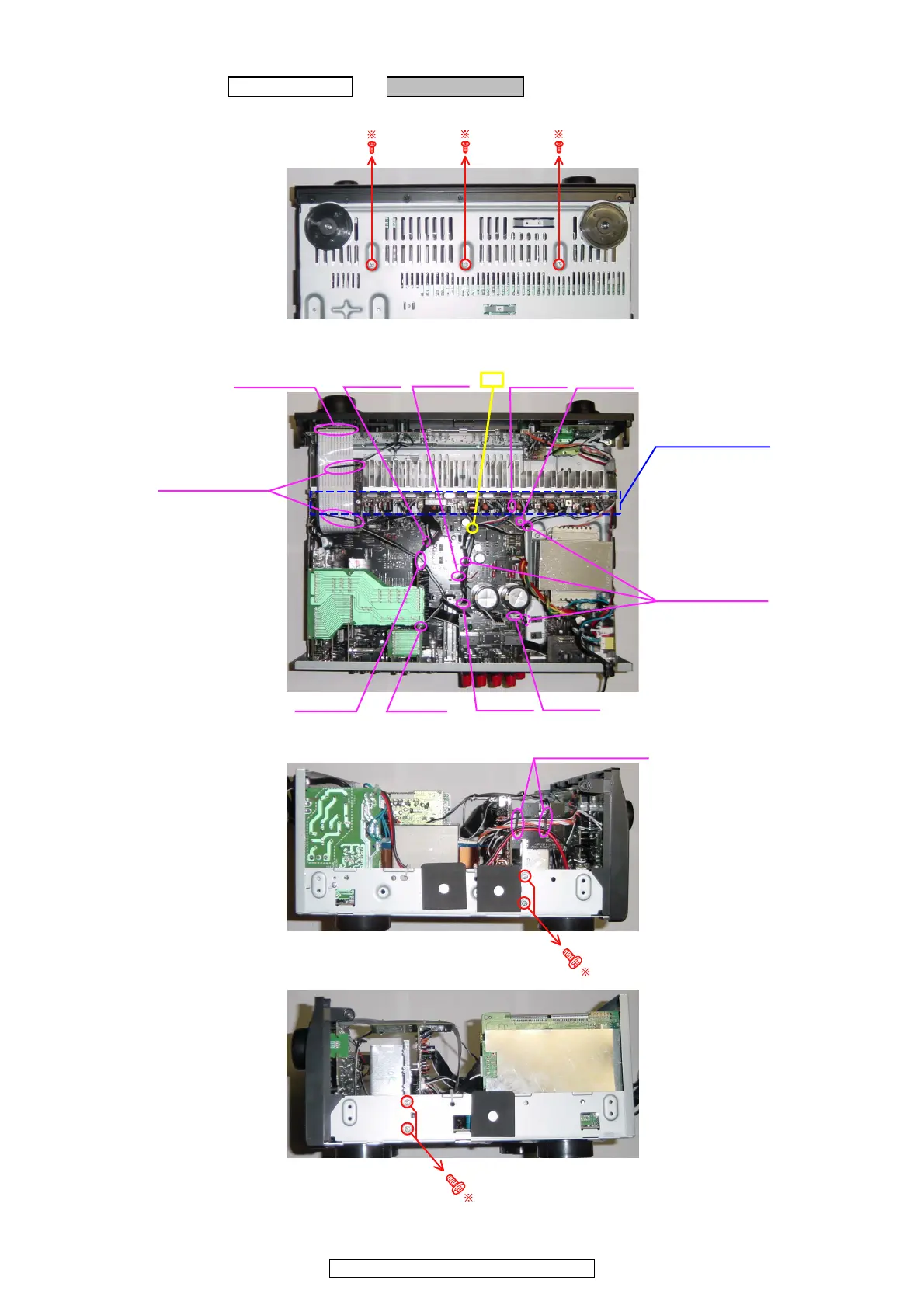

7. PCB AMP ASSY
(1) Remove the screws.
(2) Cut the wire clamp band, then loose the style pin and Cord holder. Disconnect the connector wire.
(3) Loose the style pin, then remove the screws.
Proceeding : CABINET TOP → PCB AMP ASSY
View from bottom
FFC Cable
CP1200
CP1003
Style pin : Loose
Style pin : Loose
CP1005
CP1001
CP1001
CP1000
CP1309
CP1501
cut
PCB AMP ASSY
Direction of photograph: D
Style pin : Loose
Direction of photograph: C
