Denon AVR-1610 Service Manual

17
AVR-1910/1620/1610/790/590

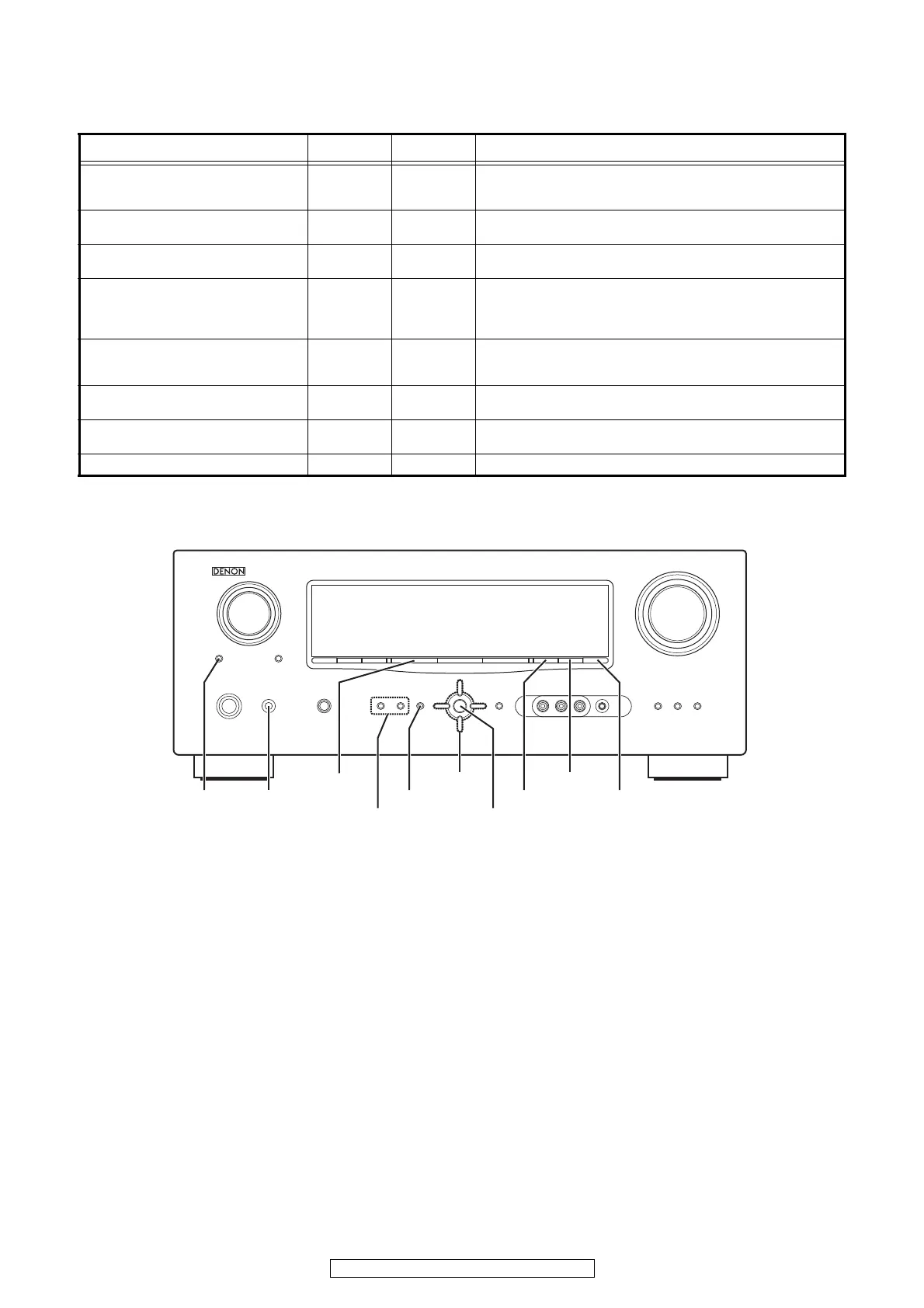

SPECIAL MODE g
Special mode setting button
※ Press the ON/OFF button to turn on while pressing both buttons A and B at the same time.
Mode Button A Button B Contents
µcom/DSP Version display mode STATUS DIMMER
Serial No. and firmware versions such as Main, Sub, DSP are
displayed in the FL manager. Errors are displayed when they
occur. (Refer to 18 page.)
Errors checking mode
(Displaying the protection history)
STATUS MULT EQ
Displaying the protection history
(Refer to 19 page.)
Initialization mode
SURROUND
MODE0
SURROUND
MODE1
Backup data initialization is carried out.
(Refer to 16 page.)
Mode for switching tuner frequency step
SOURCE
-
(non)
---E2 model only---
Select with the SOURCE 01 button.
Change tuner frequency step to AM9k/FM50kHz STEP or AM:10k/
FM:200kHz.
Mode for preventing remote control
acceptance
CURSOR 0 RESTORER
Operations using remote control are rejected.
(Mode cancellation: Turn off power and execute the same button
operations as when performing setup.)
Panel lock mode
SURROUND
MODE0
RESTORER
Operations using main unit panel buttons or master volume are
rejected.
Panel lock mode
(Remove Master volume)
SURROUND
MODE1
RESTORER Operations using main unit panel buttons are rejected.
Cancellation of panel lock mode MENU RESTORER Panel lock mode is cancelled.
0
0
DIMMER
STATUSMULTEQ
ENTER
MENU
SURROUND
0 MODE 1
ON/OFF
CURSOR
SOURCE
RESTORER
