AVR-1910/1620/1610/790/590
2. PCB CNT1
(1) Disconnect the connector board.
3. PCB SPEAKER ASSY
(1) Disconnect the connector wires.
(2) Remove the screws.

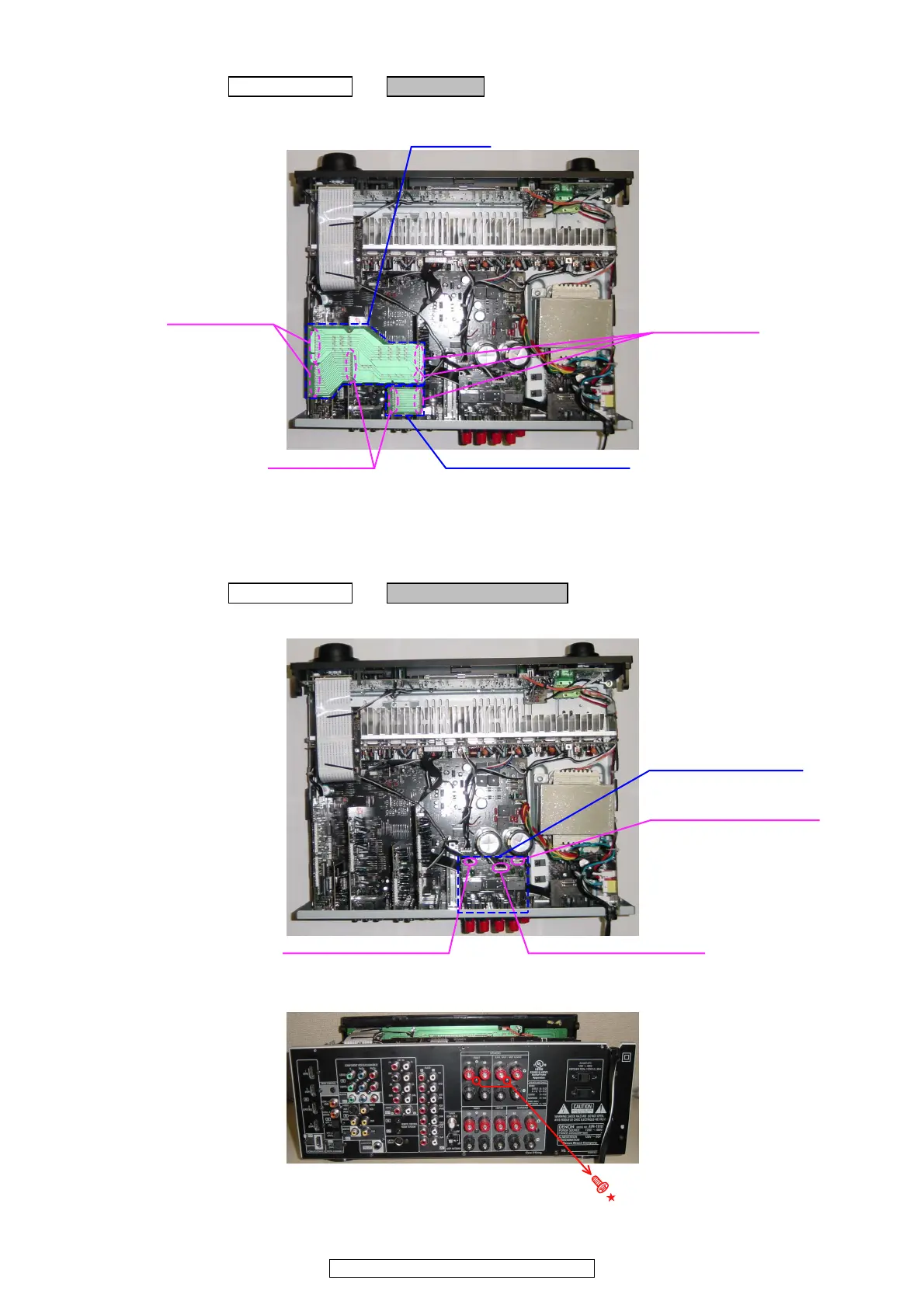

Proceeding : CABINET TOP → PCB CNT1
PCB CNT1
PCB CNT (1910/790 model)
Board to board
Board to board
Board to board
Proceeding : CABINET TOP → PCB SPEAKER ASSY
CP1001 (1910/790 model)
CN1309 (1910/790 model)
CP1002 (1910/790 model)
※CP1003 (1610/1620/590/ model), CP1004 (1610/1620/590/ model)
PCB SPEAKER ASSY
Direction of photograph: A
