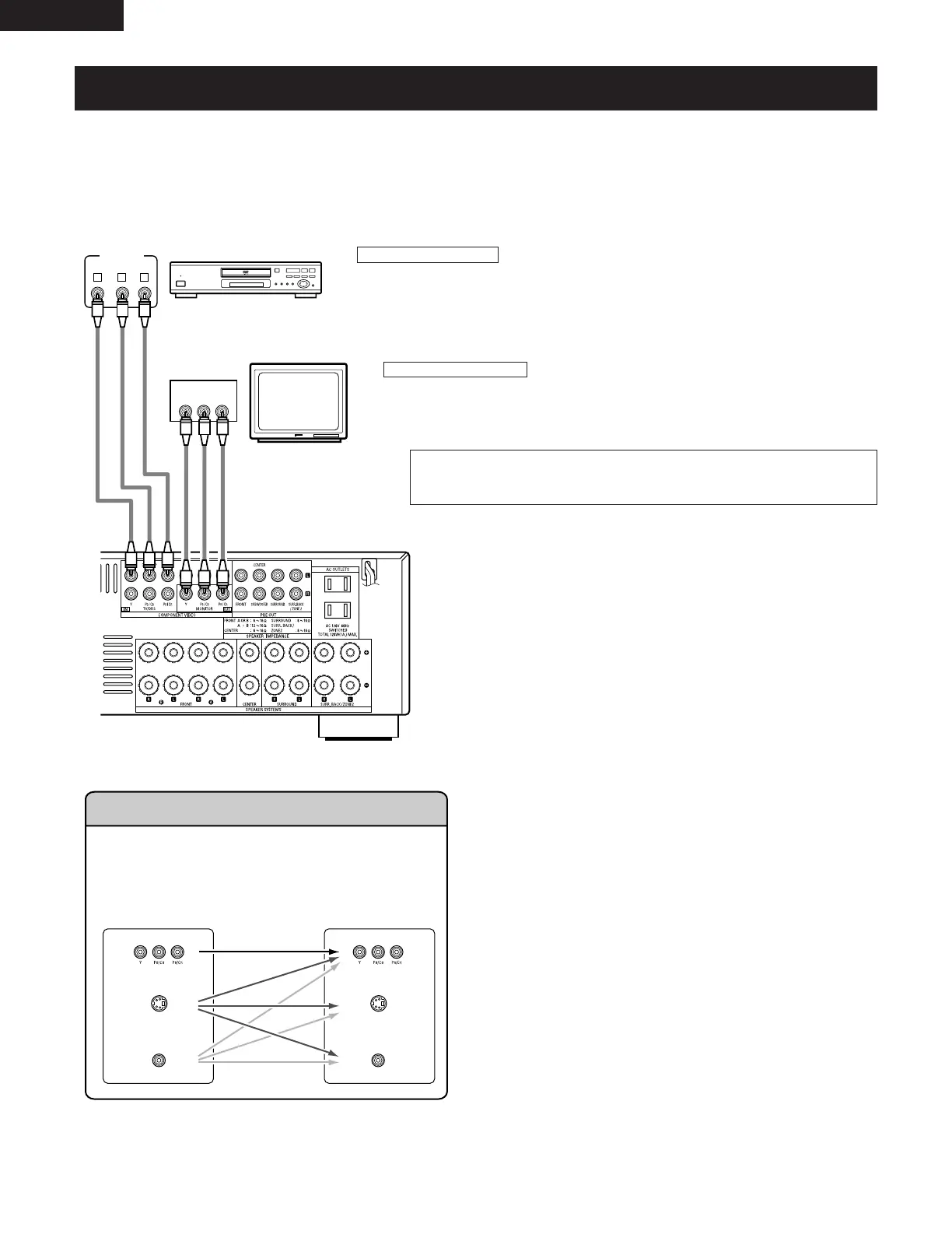

Connecting the Video Component Equipped with Color Difference (Component - Y, P
R
/C
R
, P
B
/C
B
)
Video Jacks
• When making connections, also refer to the operating instructions of the other components.
• The signals input to the color difference (component) video jacks are not outputs to the VIDEO output jack (yellow) or the S-Video output jack.
• Some video sources with component video outputs are labeled Y, CB, CR or Y, Pb, Pr or Y, R-Y, B-Y. These terms all refer to component video
color difference output.
• The function assigned to the component video input can be changed at the system setup. For details, see “Setting the Video Input Mode”.
(See page 26)
DVD player
Connecting a DVD player
DVD IN jacks
• Connect the DVD player’s color difference (component) video output jacks (COMPONENT VIDEO
OUTPUT) to the COMPONENT VIDEO-1 IN jack using 75 Ω/ohms coaxial video pin-plug cords.
• In the same way, another video source with component video outputs such as a TV/DBS tuner, etc., can
be connected to the VIDEO-2 color difference (component) video jacks.
Monitor TV
Connecting a monitor TV
MONITOR OUT jack
• Connect the TV’s color difference (component) video input jacks (COMPONENT VIDEO INPUT) to the
COMPONENT MONITOR OUT jack using 75 Ω/ohms coaxial video pin-plug cords.
• The color difference input jacks may be indicated differently on some TVs, monitors or
video components (“C
R
, C
B
and Y”, “R-Y, B-Y and Y”, “Pr, Pb and Y”, etc.). For details,
carefully read the operating instructions included with the TV or other component.
MONITOR OUT jacks
The AVR-1905/785 is equpped with a function for up-converting video
signals.
Because of this, the AVR-1905/785’s MONITOR OUT jack can be
connected to the monitor (TV) with a set of cables offering a higher
quality connection, regardless of how the player and the AVR-
1905/785’s video input jacks are connected.
Generally speaking, connections using the component video jacks
offer te highest quality playback, followed by connections using the S-
Video jacks, then connections using regular video jacks (yellow).
NOTE:
Down-converting from the component video signal to the S-Video and
composite video signal is not possible, so when not using the
component video monitor output terminal connect the player using
the S-Video or composite video input terminal.
Cautions on the video conversion function:
When the component video terminals are used to connect the AVR-
1905/785 with a TV (or monitor, projector, etc.) and the video (yellow)
or S-Video terminals are used to connect the AVR-1905/785 with a
VTR, depending on the combination of the TV and VTR the picture
may flicker in the horizontal direction, be distorted, be out of sync not
display at all when playing video tapes.
If this happens, connect a commercially available video stabilizer, etc.,
with a TBC (time base corrector) function between the AVR-1905/785
and the VTR, or if your VTR has a TBC function, turn it on.
To Next Page
