Denon AVR-1905 User Manual

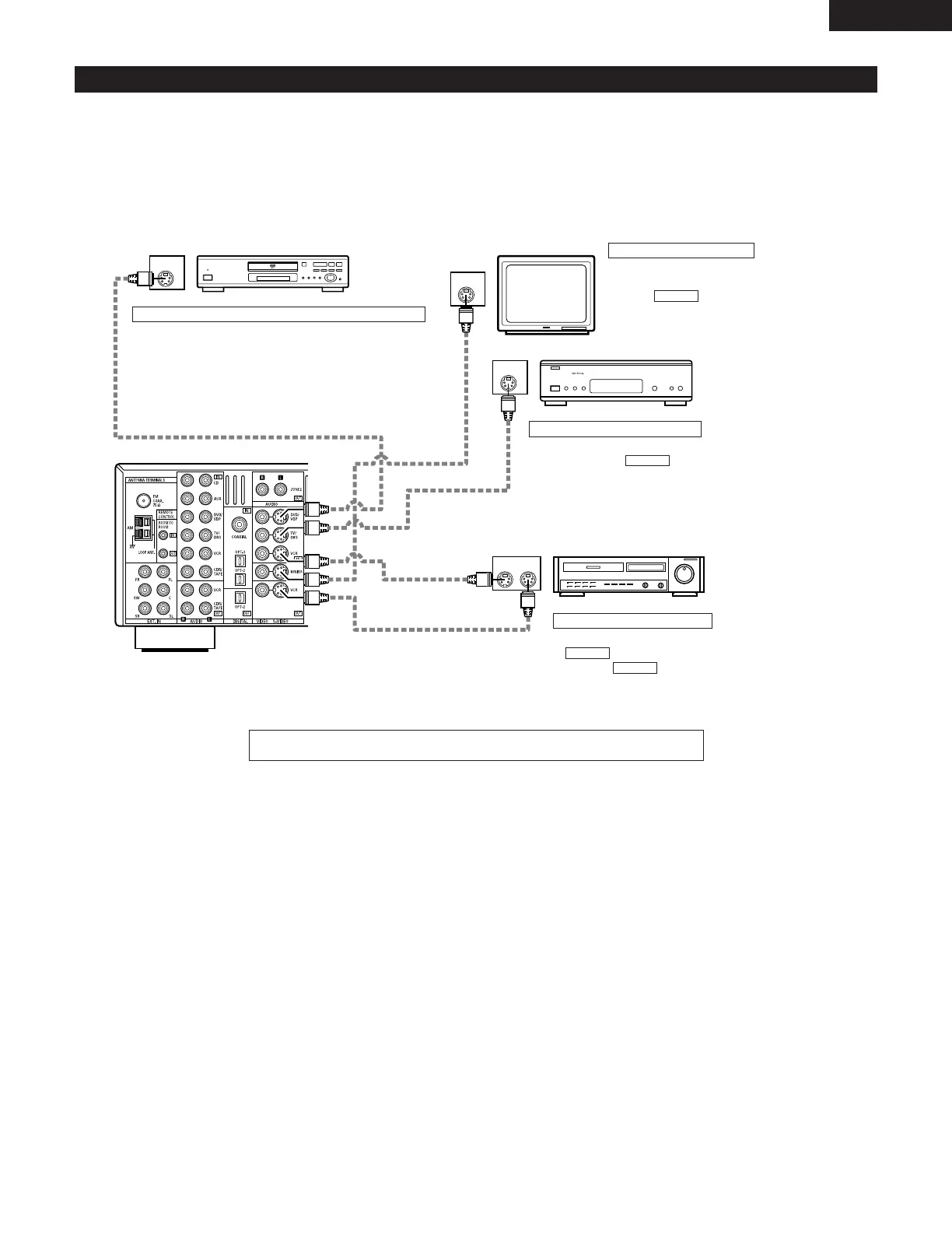

Connecting the video components equipped with S-Video jacks
• When making connections, also refer to the operating instructions of the other components.
• A note on the S input jacks
The input selectors for the S inputs and Video inputs work in conjunction with each other.
• The AVR-1905/785 is equipped with a function for converting video signals.
• The signal connected to the S-Video signal terminal is output to the composite video and component video monitor out terminals.
• The REC OUT terminals have no conversion function, so when recording only connect the S-Video terminals.
IN
S-VIDEO
OUT
S-VIDEO
OUT
S-VIDEO
OUT IN
S-VIDEO
VIDEO IN
VIDEO OUT
VIDEO IN
VIDEO OUT
VIDEO OUT
B
B
DVD player or video disc player
(VDP)
Connecting a DVD player or a video disc player (VDP)
DVD/VDP
• Connect the DVD player’s S-Video output jack to the S-
VIDEO DVD IN jack using a S-Video connection cord.
• VDP can be connected to the VDP jacks in the same way.
• It is also possible to connect a video disc player, DVD
player, video camcorder, game machine, etc., to the V.
AUX jacks.
Connecting a monitor TV
MONITOR OUT
• Connect the TV’s S video input (S-VIDEO INPUT)
to the MONITOR OUT jack using a S
jack connection cord.
S-VIDEO
Monitor TV
Connecting a TV or DBS tuner
• Connect the TV’s or DBS tuner’s S video output jack (S-VIDEO
OUTPUT) to the TV or DBS IN jack using an S-Video
connection cord.
S-VIDEO
TV or satellite broadcast tuner
Video deck
Connecting the video decks
• Connect the video deck’s S output jack (S-OUT) to the
VCR IN jack and the video deck’s S input jack (S-
IN) to the VCR OUT jack using S-Video connection
cords.
S-VIDEO
S-VIDEO
Connect the components’ audio inputs and outputs as described on page 8.
9
ENGLISH
