Denon AVR-1908 - Page 50

50
AVR-1908 / AVR-788

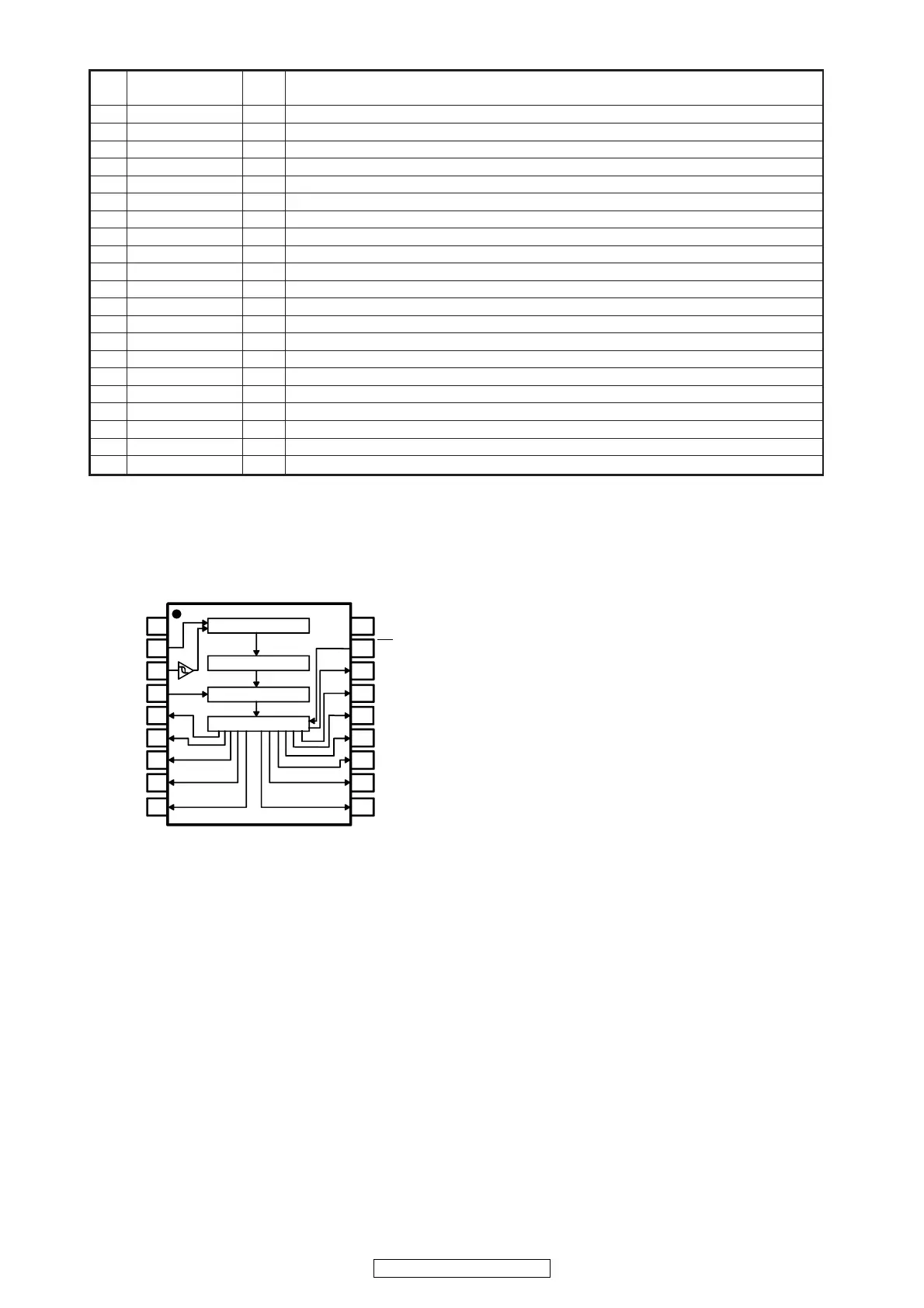

BU2090F (IC301)
Function
Pin
No.
Pin Name I/O
* For latch-up countermeasure, perform each power supply ON/OFF in the same timing.
28 XOUT O X’tal osc. connecting output terminal
29 XIN I X’tal osc. connection, external clock input terminal (24.576MHz or 12.288MHz)
30 DVDD — Digital power
31 DGND — Digital GND
32 EMPHA/UO I/O Emphasis information/U-data output/Chip address setting terminal
33 AUDIO/VO I/O Non-PCM detect/V-flag output/ Chip address setting terminal
34 CKST I/O Clock switch transition period output/Demodulation master or slave function switching terminal
35 INT I/O Interrupt output for µcom (Interrupt factor selectable)/Modulation or general I/O switching terminal
36 RERR O PLL lock error, data error flag output
37 DO O µcom I/F, read out data output terminal (3-state)
38 DI I µcom I/F, write data input terminal
39 CE I µcom I/F, chip enable input terminal
40 CL I µcom I/F, clock input terminal
41 XMODE I System reset input terminal
42 DGND — Digital GND
43 DVDD — Digital power
44 TMCK/PIO0 I/O 256fs system clock input for modulation/General I/O in/output terminal
45 TBCK/PIO1 I/O 64fs bit clock input for modulation/General I/O in/output terminal
46 TLRCK/PIO2 I/O fs clock input for modulation/General I/O in/output terminal
47 TDATA/PIO3 I/O Serial audio data input for modulation/General I/O in/output terminal
48 TXO/PIOEN O/I Modulation data output/ General I/O enable input terminal
1
2
3
4
5
6
7
8
18
17
16
15
14
13
12
11Q3
VDD
OE
Q7
Q8
Q11
Q10
Q9
Q6
VSS
DATA
CLOCK
LCK
Q0
Q1
Q2
9
10
Q4
Q5
CONTROL CIRCUIT
12-bit SHIFT REGISTER
12- bi t STRAGE REGISTER
OUTPUT BUFFER ( OPEN DRAI N)
