3. PCB REG CNT/PCB REG

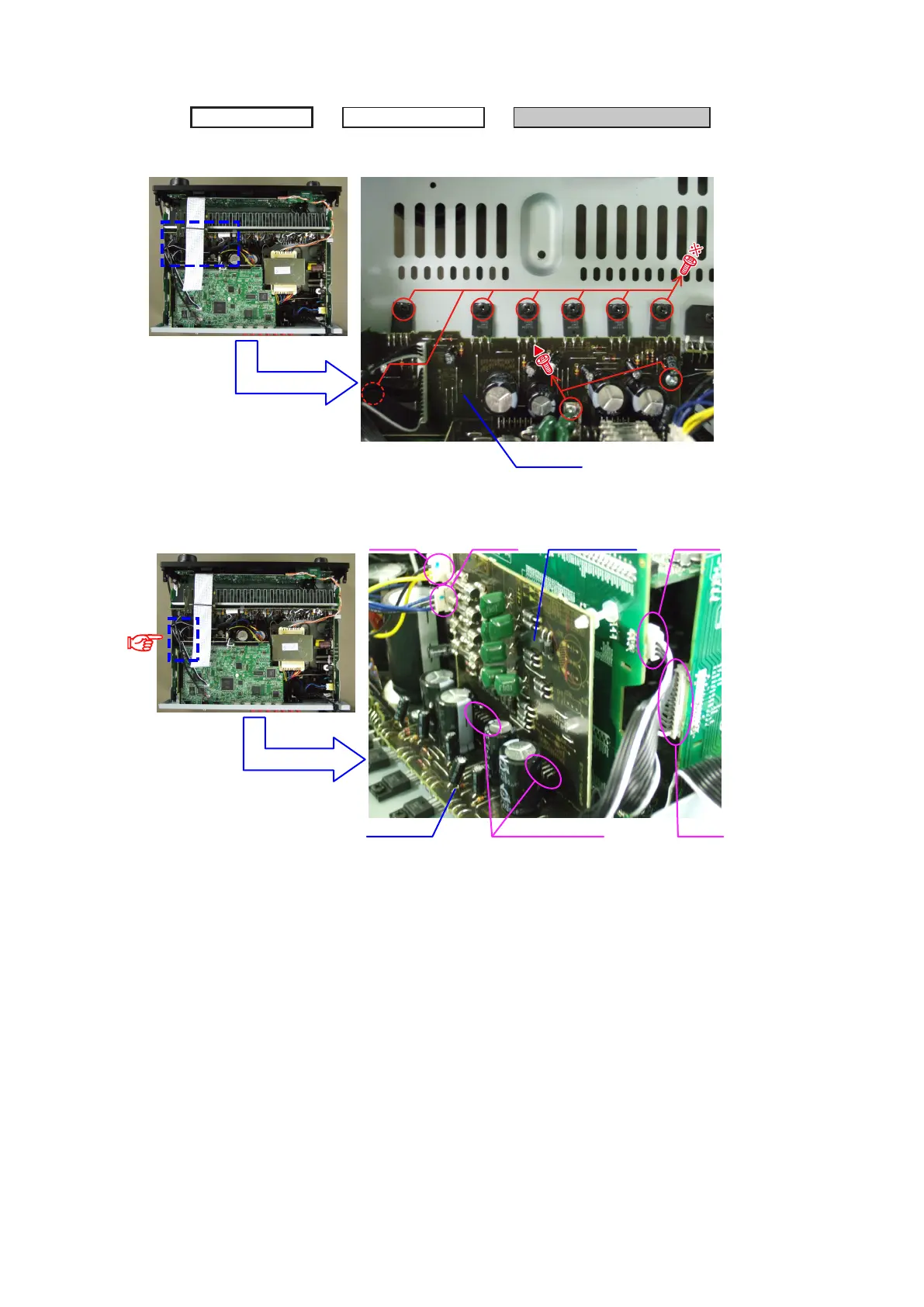

(1) Removethescrews.

(2) Disconnecttheconnectorwiresandconnectorboard..

CABINET TOP

RADIATOR ASSY

→

PCB REG CNT/PCB REG

→

Proceeding :

PCB REG

Direction of photograph: C

CP13BCP104

PCB REG CNT

Board to board

CP102

CP13A

PCB REG

Main Page

Safety Precautions2
Leakage Current Check2
Note for Schematic Diagram3
Note for Parts List3
Resistors3
Capacitors3
Technical Specifications4
Audio Section4
Video Section4
HD Radio Section4
Caution in Servicing5
Initializing AV SURROUND RECEIVER5
Service Jigs5
Disassembly6
About the Photos Used for Descriptions in the DISASSEMBLY" Section6
Front Panel Assy6
Radiator Assy6
Pcb Reg Cnt/Pcb Reg10
Hdmi Unit Assy11
Pcb Spk/Pcb Smps13
Trans Main15
Special Mode Setting Button16
Μcom/Dsp Version Display Mode17
Operation Specifications17
Display Order17
Error Display17
Errors Checking Mode18
About the Display on the FL Display18
Error Mode (Displaying the Protection History)18
Clearing the Protection History19
Warning Indication by the POWER LED19
Jig for Servicing20
Connection of PCB HDMI JIG20
Connection Table of Board to Board21
About Replace the Microprocessor with a New One22
Version Upgrade Procedure of Firmware22
Preparations before Starting the Operation22
Connection of the AV Receiver/Amplifier22
Communication Check23
Confirming the Firmware’s Number after Upgraded26
Surround Modes and Parameters27
Adjustment31
Idling Current31
Trouble Shooting32
Power Not Turn on32
Fuse Is Blown32
Analog Video33
MONITOR out (CVBS) Output NG33
HDMI out Outpu NG33
Hdmi/DVI37
No Picture or Sound Is Output37
HDMI Test Point and Waveforms40
Audio Check43
Power AMP (7CH AMP B'D)44
Analog Audio45
No Sound Is Output45
Clock Flow & Wave Form in Digital Block47
Wave Form47
Block Diagram48
Video Block Diagram49
VCC Block Diagram50
Level Diagram51
Printed Wiring Boards57
7Ch-Amp (Component Side)57
7Ch-Amp (Foil Side)57
Smps (Component Side)58
Smps (Foil Side)58
Spk (Component Side)59
Spk (Foil Side)60
Reg (Component Side)61
Front_Cnt (Component Side)61
Reg_Cnt (Component Side)61
Reg (Foil Side)62
Front_Cnt (Foil Side)62
Reg_Cnt (Foil Side)62
Side_Cnt (Component Side)63
Usb (Component Side)63
Usb (Foil Side)63
Side_Cnt (Foil Side)63
Front (Component Side)64
Function (Component Side)64
Function_Cnt (Component Side)64
Front (Foil Side)65
Function (Foil Side)65
Function_Cnt (Foil Side)65
Audio_Video (Component Side)66
Audio_Video (Foil Side)66
Hdmi (Component Side)67
Hdmi (Foil Side)68
Regulator B'D73
Side Connector74
Front Connector75
Wiring Diagram92
Exploded View93
Parts List of Exploded View94
Packing View96
Parts List of Packing & Accessories96
Semiconductors97
IC's97
R5F64169DFD Terminal Functions98
R5F3650Knfb (Hdmi : U3301)101
R5F3650KNFB Terminal Functions102
Adv7511Bstz (Hdmi : U1501)104
ADV7511 ADI Confidential104
Lc89058W-E (Hdmi : U1706)105
Pin Functions105
LC89058W-E Block Diagram106
Adsp21367Kswz2A (Hdmi : U1901)107
ADSP21367KSWZ2A Terminal Function107
Pin Configuration108
W9864G2IH-6 Block Diagram109
Pin Description110
En29Lv160Bb (Hdmi : U1903)111
En29Lv160Bt (Hdmi : U2301)111
En29Lv160Bt111
TCC8600 Package112
TCC8600 Block Diagram112
TCC8600 Pin Description113
TCC8600 Pin Description in Pin Number Order115
Is42S16400F-6Tl (Hdmi : U1303, U2302)118
General Description118
Functional Block Diagram118
Ak4424Et (Hdmi : U2305)119
AK4424ET Block Diagram119
Ak4358Vq (Hdmi : U2102)120
AK4358VQ Pin Function120
Ak5358Bet (Hdmi : U2101)121
AK5358BET Pin Function121
Block Diagram and Pin Configuration (Top View)122
R2A15220FP Pin Function123
Epm3032A (Hdmi : U1707)124
Lc74781 (Av : Ic810)124
Njm2586Am (Av : Ic811)124
Fl Display125
Fld (18-St-13Gink) (Front : U100)125
Grid Assignment125
Anode Connection126
Parts List of P.C.b. Unit127
Pcb 7Ch_Amp Ass'y127
Pcb Audio_Video Ass'y140
Pcb Hdmi Ass'y143
