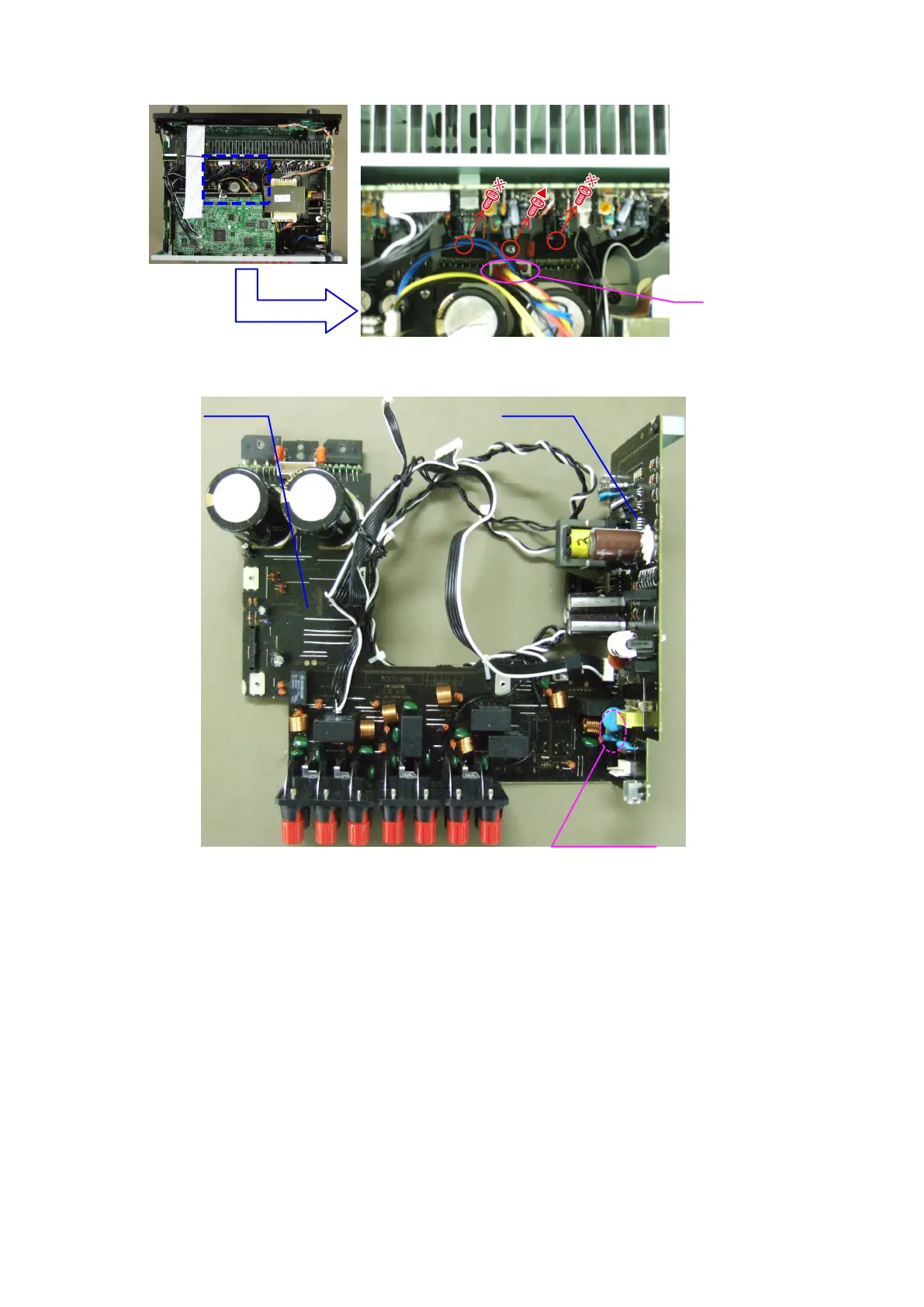

(3) Disconnecttheconnectorwire,thenremovethescrews.RemovethePCBSPK/PCBSMPSfromthemainunit.

(4) Disconnecttheconnectorboard.

CP1

PCB SMPSPCB SPK

Board to board
