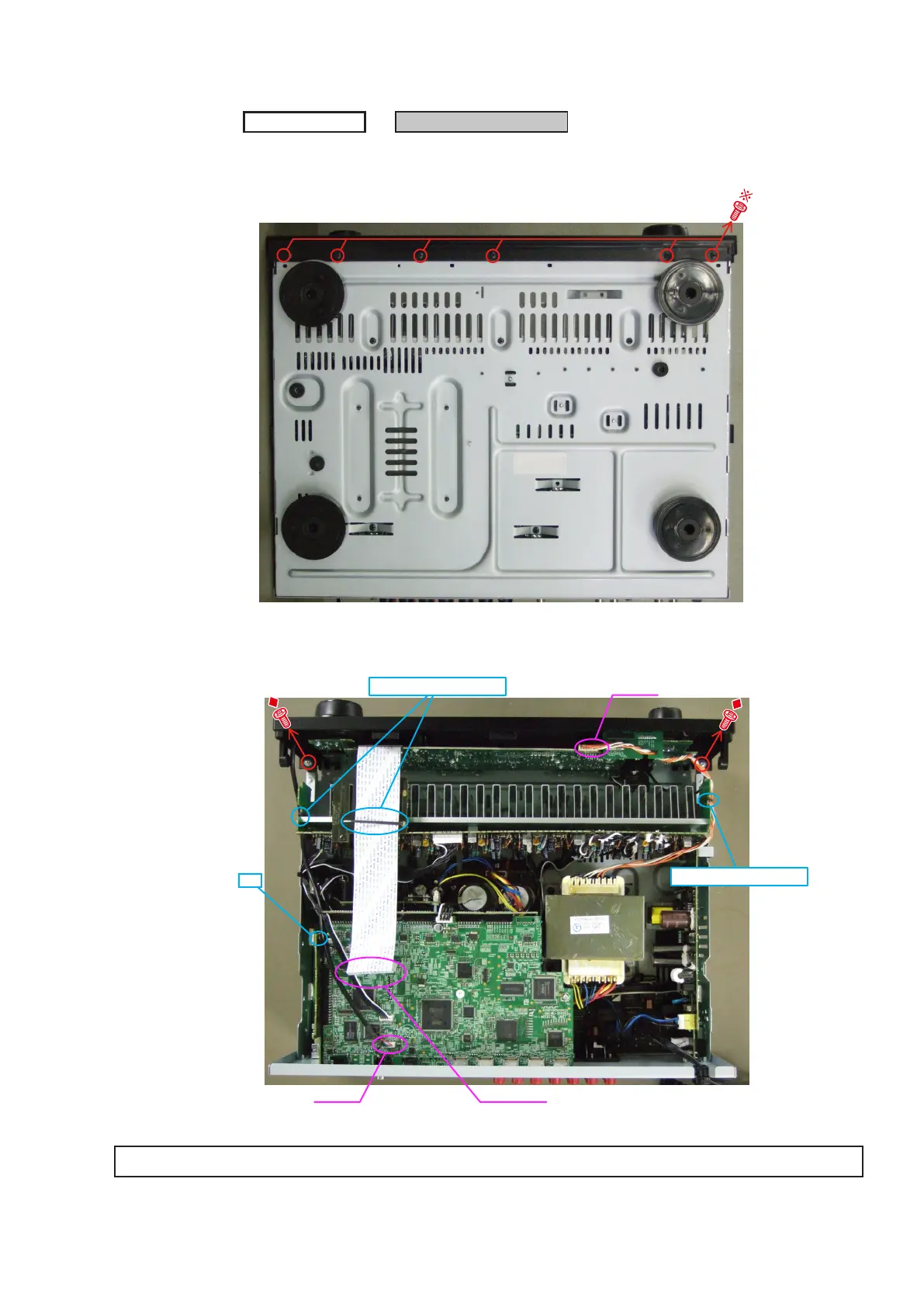

1. FRONT PANEL ASSY
(1) Removethescrews.
(2) Cutthewireclampband,thendisconnecttheconnectorwiresandFFCcable.Removethescrews.
CABINET TOP
FRONT PANEL ASSY
→
Proceeding :
View from bottom
STYLE PIN : Loose
STYLE PIN : Loose
N4401
CP100
FFC cable
cut
Pleasereferto"EXPLODEDVIEW"forthedisassemblymethodofeachPCBincludedinFRONTPANELASSY.
