108

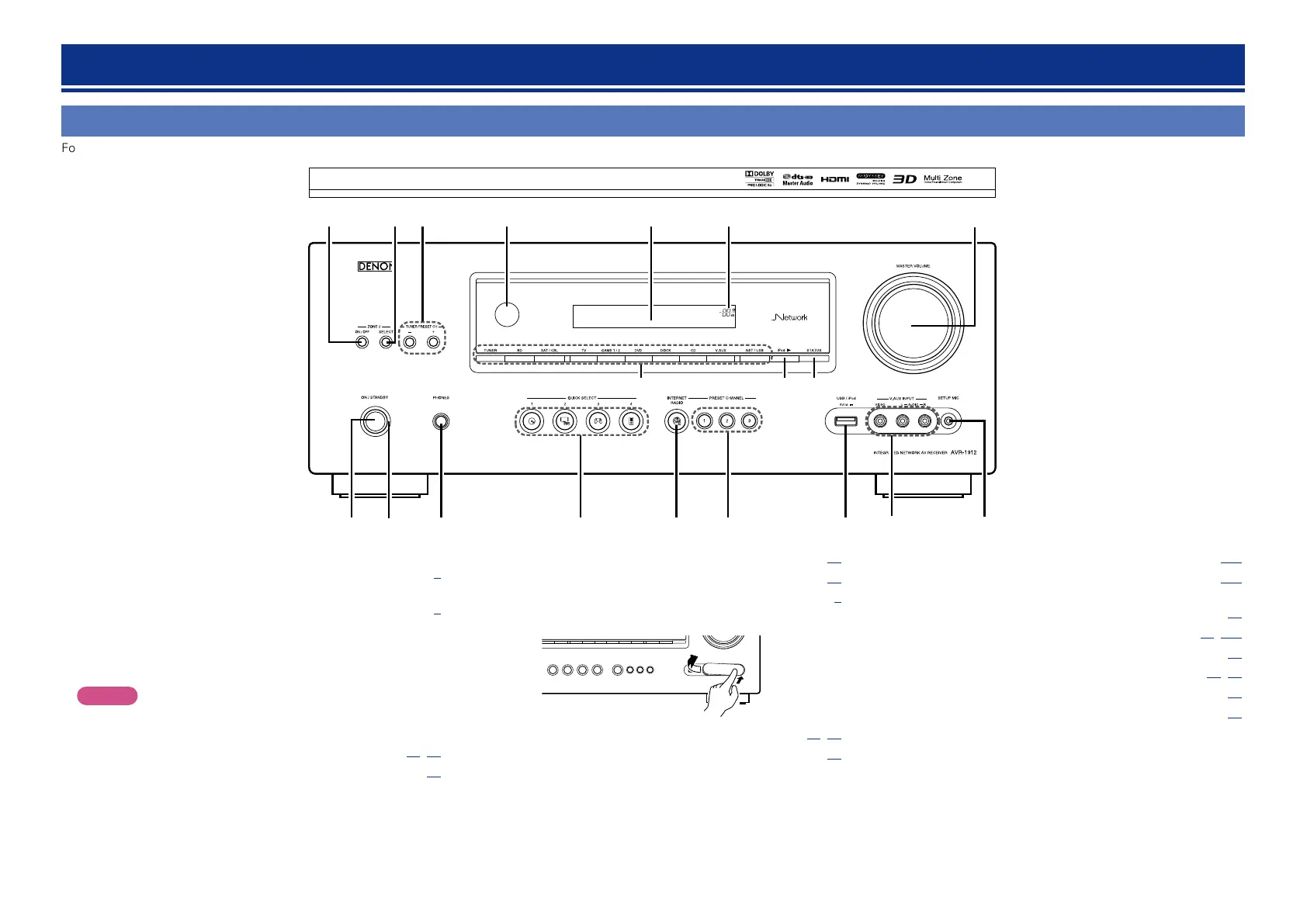

Front panel
For buttons not explained here, see the page indicated in parentheses ( ).
Q3Q4Q6 Q5 Q2
Q1 Q0
o
i
Q7 Q8 Q9
utr yewq
q Power operation button
(ON/STANDBY) ································································· (C 5)
Turns power to this unit on and off (standby).
w Power indicator ································································· (C 5)
e Headphones jack (PHONES)
When the headphones are plugged into this jack, audio will no
longer be output from the connected speakers or from the PRE
OUT connectors.
NOTE
To prevent hearing loss, do not raise the volume level excessively
when using headphones.
r QUICK SELECT buttons ···················································· (61, 69)
t INTERNET RADIO (V) button ··············································· (29)
Q2 Display ···················································································· (109)
Q3 Remote control sensor ························································· (112)
Q4 Tuner preset channel buttons
(TUNER PRESET CH +, –) ························································ (27)
Q5 ZONE SELECT button ····················································· (68, 101)
Q6 ZONE2 ON/OFF button ··························································· (68)
Q7 Input source select buttons ·············································· (20, 68)
Q8 iPod play button (iPod 1) ······················································· (25)
Q9 STATUS button ······································································· (81)
y PRESET CHANNEL buttons (1 – 3) ········································· (30)
u USB/iPod port ········································································· (10)
i V.AUX INPUT connectors ························································· (9)
Remove the cap covering the connectors when you want to use
them.
o SETUP MIC jack ································································· (15, 56)
Q0 MASTER VOLUME control knob ············································ (21)
Q1 Master volume indicator
Part names and functions
