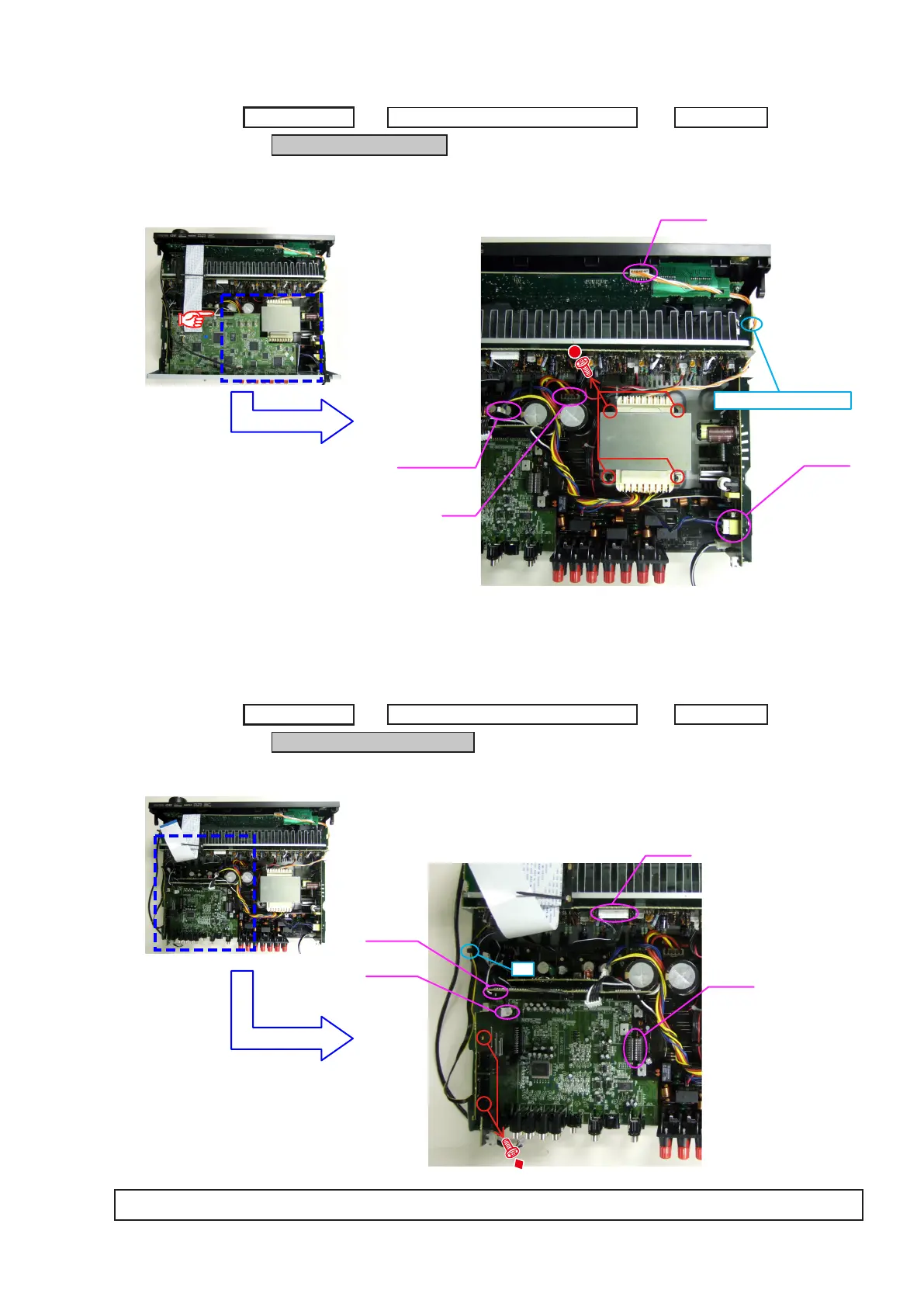

4. POWER TRANS MAIN
(1) Disconnect the connector wires, then remove the screws.
5. PCB AUDIO_VIDEO ASSY
(1) Cut the wire clamp band, then disconnect the connector wires. Remove the screws.
POWER TRANS MAIN
→
TOP COVER
PCB RS232C (AVR-2112CI only)
→
PCB HDMI
→
Proceeding :
STYLE PIN : Loosen
CP101
CP1
CP102,104
CX102
PCB AUDIO_VIDEO ASSY
→
TOP COVER
PCB RS232C (AVR-2112CI only)
→
PCB HDMI
→
Proceeding :
CP401
CP12
CP13B
CP13A
cut
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B.
