92
(AVR2112 ONLY)
＋
LINE IN
+20dB
+10dB
　0dB
-20dB
-30dB
-40dB
-10dB
+20dB
+10dB
　0dB
-20dB
-30dB
-40dB
-10dB
LINE IN

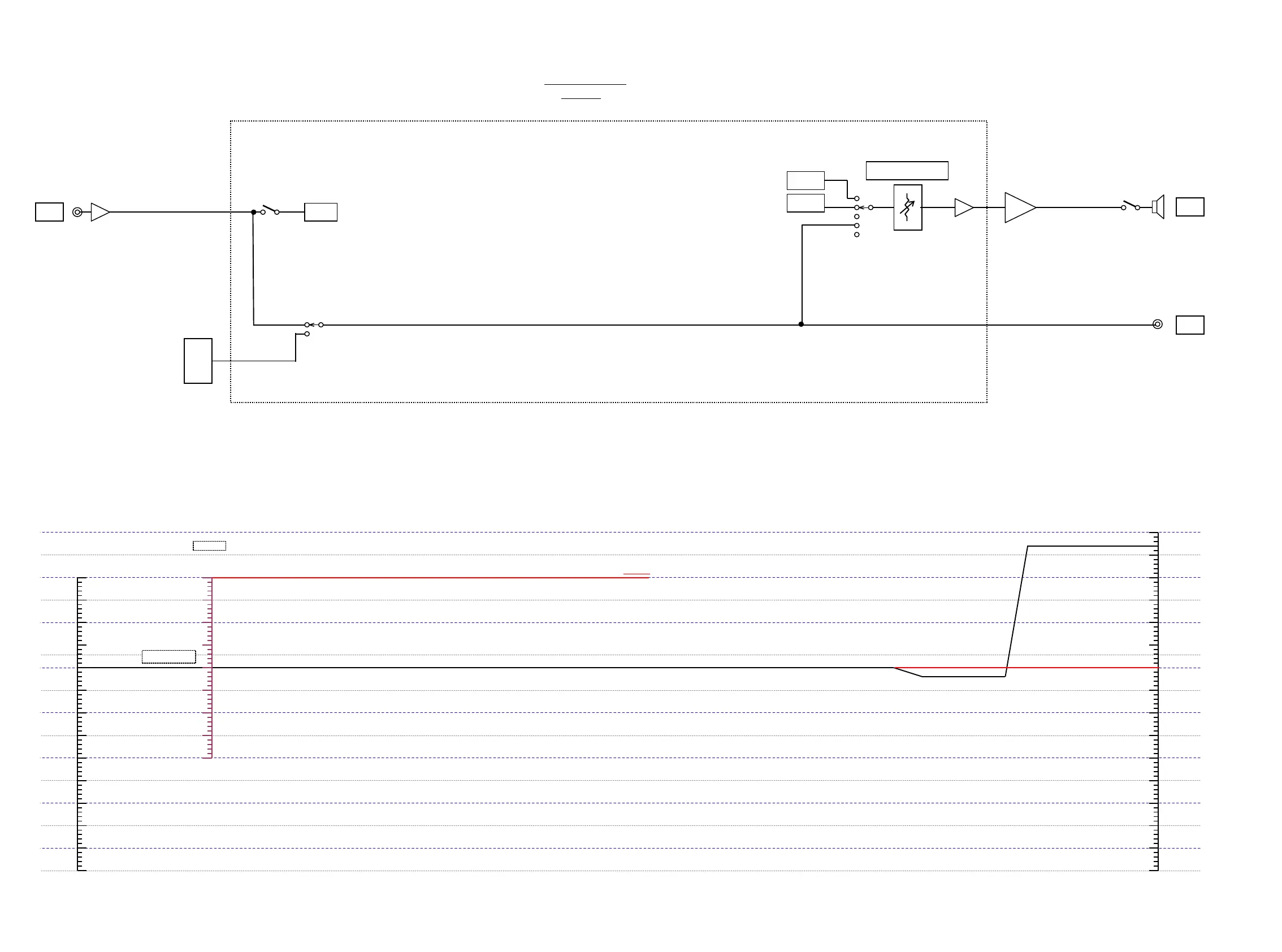

LEVEL DIAGRAM
ZONE2
-2.0dB
0dBFS
-10dBFS
-20dBFS
-30dBFS
-40dBFS
-20dBFS(DIG.IN)
AK4424ET
200mV
MAX SIGNAL LEVEL 2.00Vrms
LINE OUT
200mVrms
＋
SPEAKER
OUT
LINEOUT
+30dB
SP OUT
4.24Vrms/8Ω
AK4424ET
DAC
from
DA SB-ch
TO
MAIN
from
F-ch
NET/USB
ZONE2 DAC
R2A15218FP
Single end OUT
0dBFS=5.66Vpp
=2Vrms
SURR.BACK
FRONT/ZONE ASSIGN
