Getting Started
Playback Remote Control Information Troubleshooting
Specifications
ENGLISH
Multi-ZoneSettings

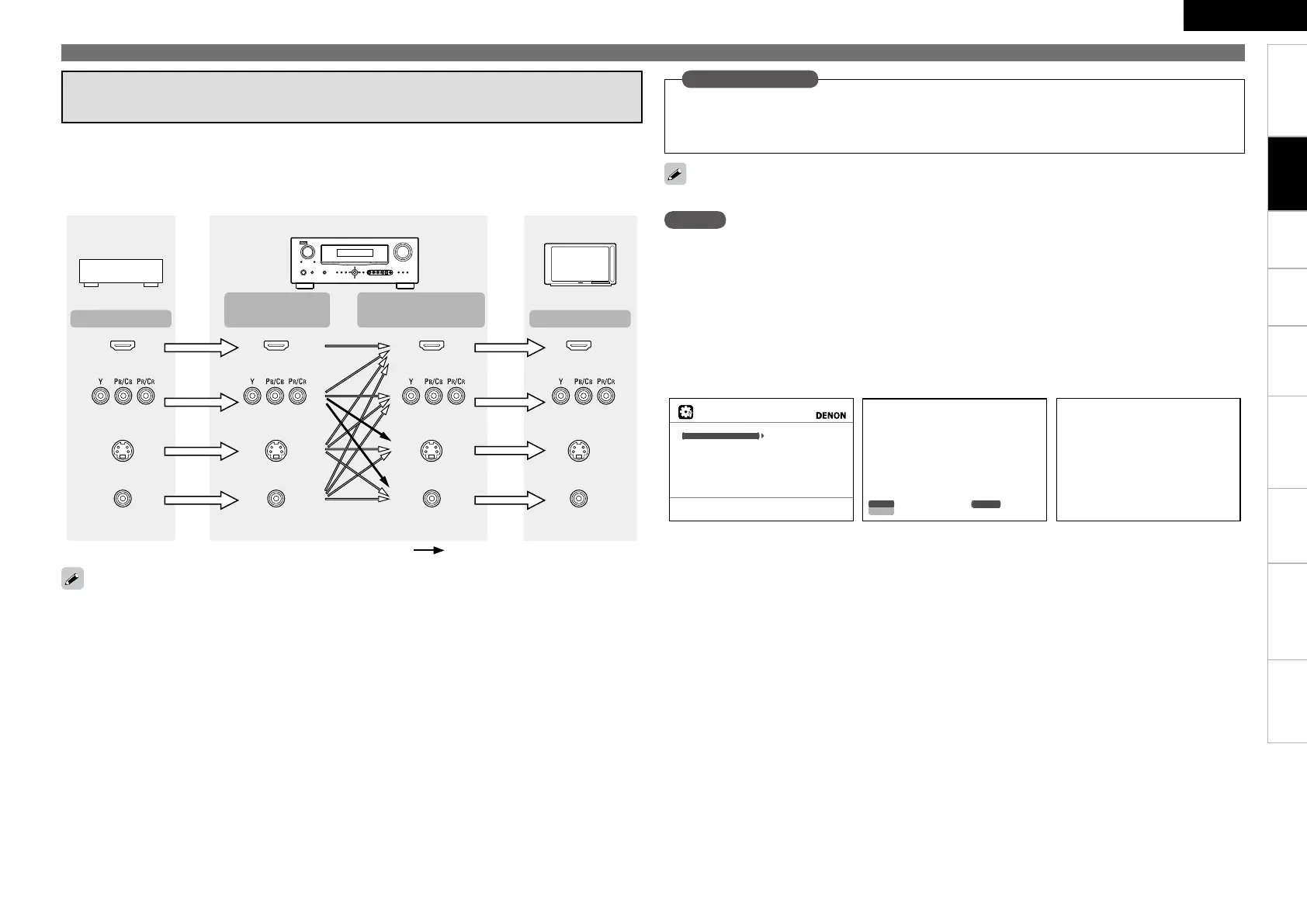

Converting Input video signals for Output
(Video Conversion Function)
The AVR-2310 is equipped with four types of video input/output terminals (HDMI, Component video, S-
Video and video).
Use the terminals according to the devices to be connected.
This function automatically converts various formats of video signals input to the AVR-2310 into the format
used to output the video signals from the AVR-2310 to a monitor.
• The video conversion function supports the NTSC, PAL, SECAM, NTSC 4.43, PAL-N, PAL-M and PAL-60
formats.
• The resolution of the video signal input to the AVR-2310’s HDMI terminal is the resolution set at
“Resolution” (vpage 36). (1080p HDMI signals and 1080p component signals are output at 1080p,
regardless of the setting.)
Important Information
Examples of GUI menu
Menu screen• Status display screen•
When the input source is
switched
When the volume is adjusted
M E N U
A u d i o / V i d e o A d j u s t
I n f o r m a t i o n
A u t o S e t u p
M a n u a l S e t u p
I n p u t S e t u p
A d j u s t v a r i o u s a u d i o a n d v i d e o p a r a m e t e r s
I n p u t D V D A u t o
M o d e S T E R E O
M a s t e r V o l u m e - 8 0 . 0 d B
Status display: The operating status is displayed temporarily on the
screen when the input source is switched or the
volume is adjusted.
n
HDMI connector
Component video
connectors
S-Video connector
Video connector
Monitor
HDMI connector
Component video
connectors
S-Video connector
Video connector
HDMI connector
Component video
connectors
Video connector
HDMI connector
Component video
connectors
Video connector
Video device
AVR-2310
Output
Input
(IN)
Output
(MONITOR OUT)
Input
S-Video connector S-Video connector
: When 480i/576i signals are input
Resolutions of HDMI-compatible TVs can be checked at “HDMI Information” (vpage 51).
NOTE
HDMI signals cannot be converted into analog signals.
When a non-standard video signal from a game machine or some other source is input, the video
conversion function might not operate.
480p/576p/1080i/720p/1080p component video input signals cannot be converted into S-Video or Video
format.
•
•
•
Set when using the video conversion function.
“Video Convert” (vpage 36)
Set when changing the resolution of the video signal.
“Resolution” (vpage 36)
•
•
Set as Necessary
Connections
To Next Page
