ENGLISH
Getting Started
Connections Playback Remote Control Information Troubleshooting
SpecificationsMulti-ZoneSettings

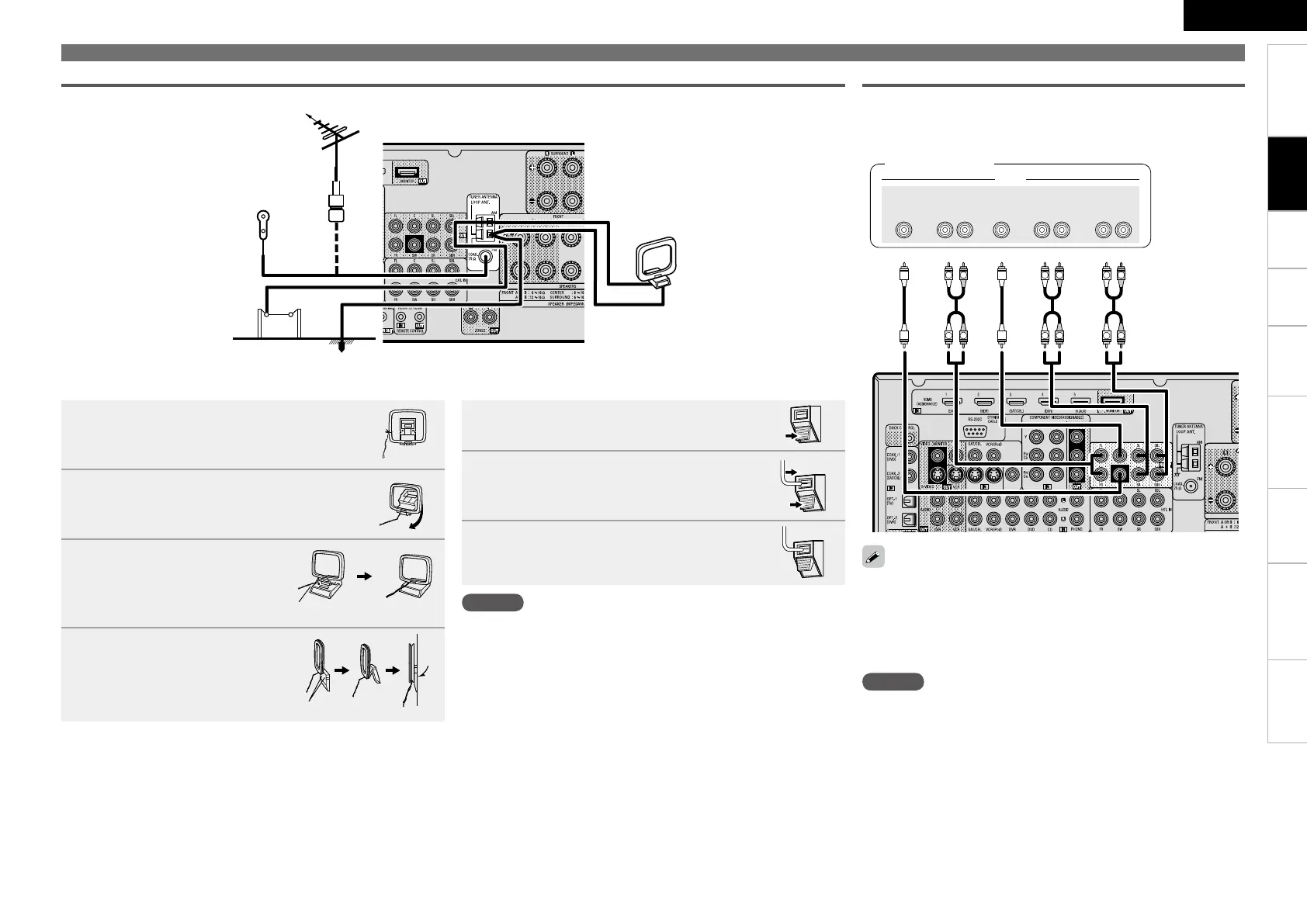

Connecting Devices not Equipped with HDMI terminals
Connections
Direction of broadcasting station
AM loop
antenna
(supplied)
FM antenna
75 Ω/ohms
Coaxial cable
FM indoor antenna
(supplied)
Ground
AM outdoor antenna
Antenna terminals
n AM loop antenna assembly
1
Remove the vinyl tie and take out the
connection line.
2
Bend in the reverse direction.
3
With the antenna on top of any
stable surface.
3
With the antenna attached to a
wall.
-1
-2
Mount
Installation hole Mount on wall, etc.
1
Push the lever.
2
Insert the conductor.
3
Return the lever.
n Connection of AM antennas
NOTE
• Do not connect two FM antennas simultaneously.
• Even if an external AM antenna is used, do not disconnect the AM
loop antenna.
• Make sure the AM loop antenna lead terminals do not touch metal
parts of the panel.
External Power Amplifier
Select the terminal to use and connect the device.
Connect when using an external power amp or an amp you already
have.
•
•
R
L
R
L
R
L
R
L
R
L
R
L
46#
800'&3
$&/5&3 463306/%
#"$,
3-
463306/%
3-
'30/5
3-
"6%*0
Power amplifier
When using just one surround back speaker, connect it to the left
channel (L).
Use the volume control on the subwoofer to control subwoofer
volume.
If the subwoofer volume sounds low, use the volume control
provided on the subwoofer to adjust the volume.
•
•
•
NOTE
When speakers have been connected to PRE OUT terminals, do not
connect the speakers to the speaker terminals.
The channel output from the PRE OUT SBL and SBR terminals
changes depending on the “Amp Assign” setting (vpage 27).
•
•
To Next Page
