ENGLISH
Getting Started Connections Playback Remote Control Information Troubleshooting SpecificationsMulti-Zone

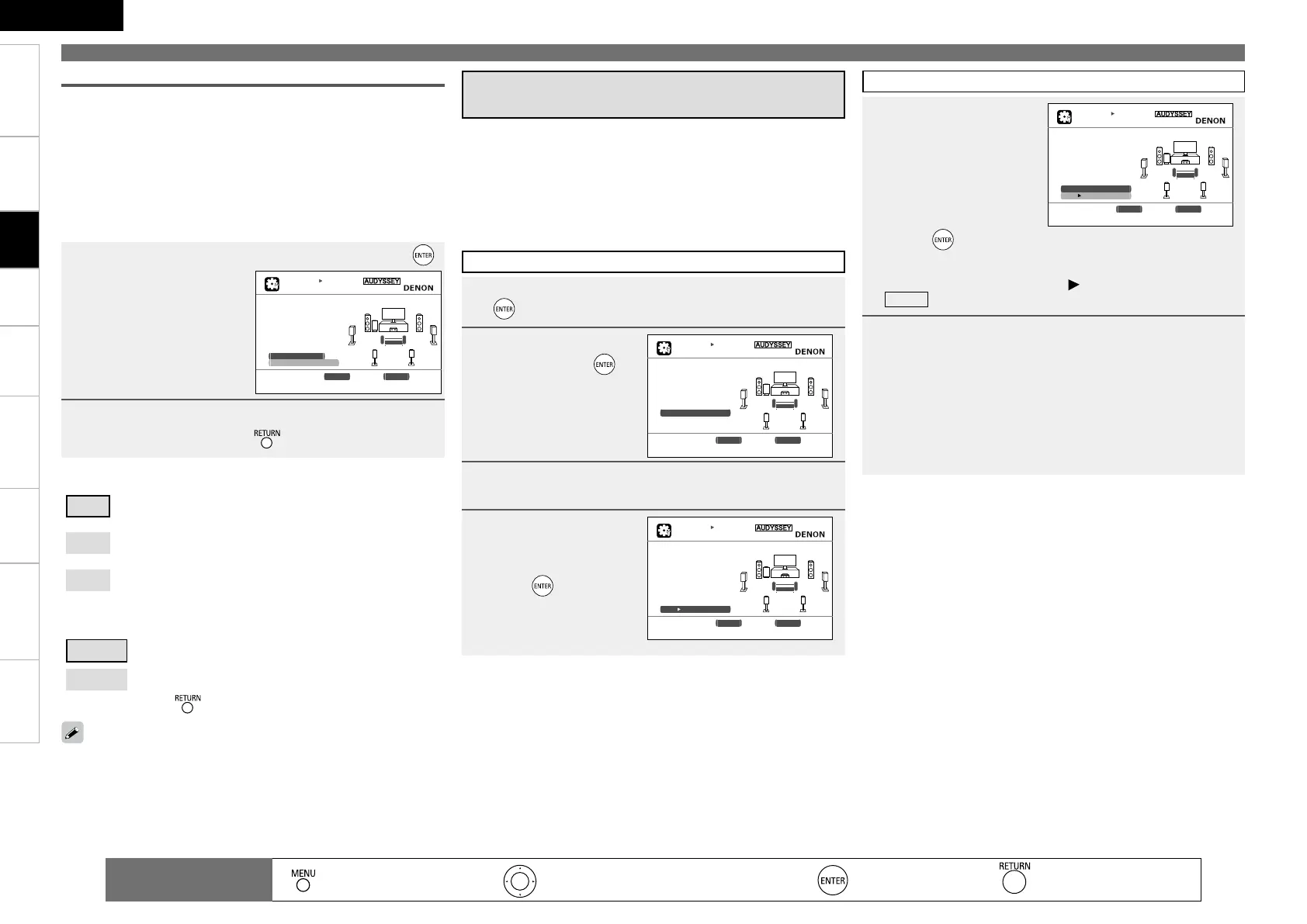

Making the Optimum Settings for the Connected Speakers Automatically (Audyssey™ Auto Setup)
1
Press ui to select “Channel Select”, then press .
2
Press ui to select a channel, press o p to select
the item, and then press .
A U T O S E T U P
A U D Y S S E Y A U T O S E T U P M u l t E Q
S T E P 1 P r e p a r a t i o n [ 1 / 6 ]
C o n n e c t t h e s p e a k e r s
a n d p l a c e t h e m a c c o r d -
i n g t o t h e r e c o m m e n d a -
a t i o n s i n t h e m a n u a l .
S e t t h e f o l l o w i n g
i t e m s i f n e s e s s a r y .
A m p A s s i g n
C h a n n e l S e l e c t
A u t o S e t u p S t a r t
E N T E R E n t e r R E T U R N C a n c e l
S k i p u n u s e d c h ’ s m e a s u r e m e n t f o r t i m e s a v i n g .
n Front
A
: The sound is output from front speakers A when measuring
the front speakers.
B
: The sound is output from front speakers B when measuring
the front speakers.
A + B
: The sound is output simultaneously from front speakers A
and B when measuring the front speakers.
Set the channel to be measured (Channel Select)
• Front
The front speaker to be measured can be selected ahead of time
here.
•
Subwoofer, Surround Back
If you set the channels you will not use beforehand, those channels
will not be measured. Therefore, you can save an amount of time
commensurate with that which would have been taken to measure
those channels.
n Subwoofer, Surround Back
Measure
: Measure the selected channel.
Skip
: Skip the selected channel and do not measure.
b To cancel, press .
When “Amp Assign” is set to “Normal”, only then is “Surround Back”
displayed.
d Performing “Audyssey Auto Setup”
Procedure
Audyssey Auto Setup detects the presence of each speaker and
automatically calculates the speaker size, channel level, distance, and
optimal crossover frequency setting. Audyssey MultEQ
®
corrects
acoustical distortions within the listening area.
Once started, MultEQ will play a series of test tones through each
speaker.
Before starting, connect and position all of your speakers.
•
•
•
1
Press ui to select “Auto Setup Start”, then press
.
2
Select “Measure”
and then press .
3
Once all the speakers have been detected, check the
results of detection of the connected speakers.
4
Press ui to
select “Next 1
Measurement”, then
press .
A U T O S E T U P
A U D Y S S E Y A U T O S E T U P M u l t E Q
S T E P 2 S p e a k e r D e t e c t i o n
P l e a s e p l a c e t h e m i c -
r o p h o n e a t e a r h e i g h t
a t m a i n l i s t e n i n g
p o s i t i o n .
M e a s u r e
E N T E R E n t e r R E T U R N C a n c e l
Te s t T o n e w i l l s t a r t f o r m e a s u r e m e n t
[ 2 / 6 ]
STEP2 Speaker Detection
STEP3 Measurement
5
Once the screen on
the right appears,
move the setup
microphone to the
second position,
use ui to select
“Measure”, then
press .
Measurements for the second position begin.
b To skip this step, select “Next Calculation” and proceed to
STEP4
.
6
Perform Step 5 repeatedly for the 3rd, 4th, 5th, and
6th measurements.
Once measurements for the sixth position are completed,
“Measurements finished.” is displayed.
b Measure at a total of six positions, including the main listening
position and positions around it. It is possible to stop the settings
with five positions or fewer, but for better results we recommend
measuring at six positions.
A U T O S E T U P
A U D Y S S E Y A U T O S E T U P M u l t E Q
S T E P 3 M e a s u r e m e n t
P l e a s e p l a c e t h e m i c -
r o p h o n e a t e a r h e i g h t
a t 2 n d l i s t e n i m g
p o s i t i o n .
M e a s u r e
N e x t C a l c u l a t i o n
E N T E R E n t e r R E T U R N C a n c e l
S t a r t n e x t m e a s u r e m e n t . T e s t T o n e w i l l s t a r t
[ 3 / 6 ]
: Moves the cursor (Up/Down/Left/Right)
: Decision the setting
: Return to previous menu
Remote control
operation buttons
:
Displaying the menu
Cancel the menu
A U T O S E T U P
A U D Y S S E Y A U T O S E T U P M u l t E Q
S T E P 2 S p k r D e t e c t C h e c k
F r o n t Y e s
C e n t e r Y e s
S u b w o o f e r Y e s
S u r r o u n d Y e s
S . B a c k Y e s
2 s p k r s
R e t r y
N e x t M e a s u r e m e n t
E N T E R E n t e r R E T U R N C a n c e l
G o t o S t e p 3 ( M e a s u r e m e n t ) a f t e r s p e a k e r c h e c k
[ 2 / 6 ]
