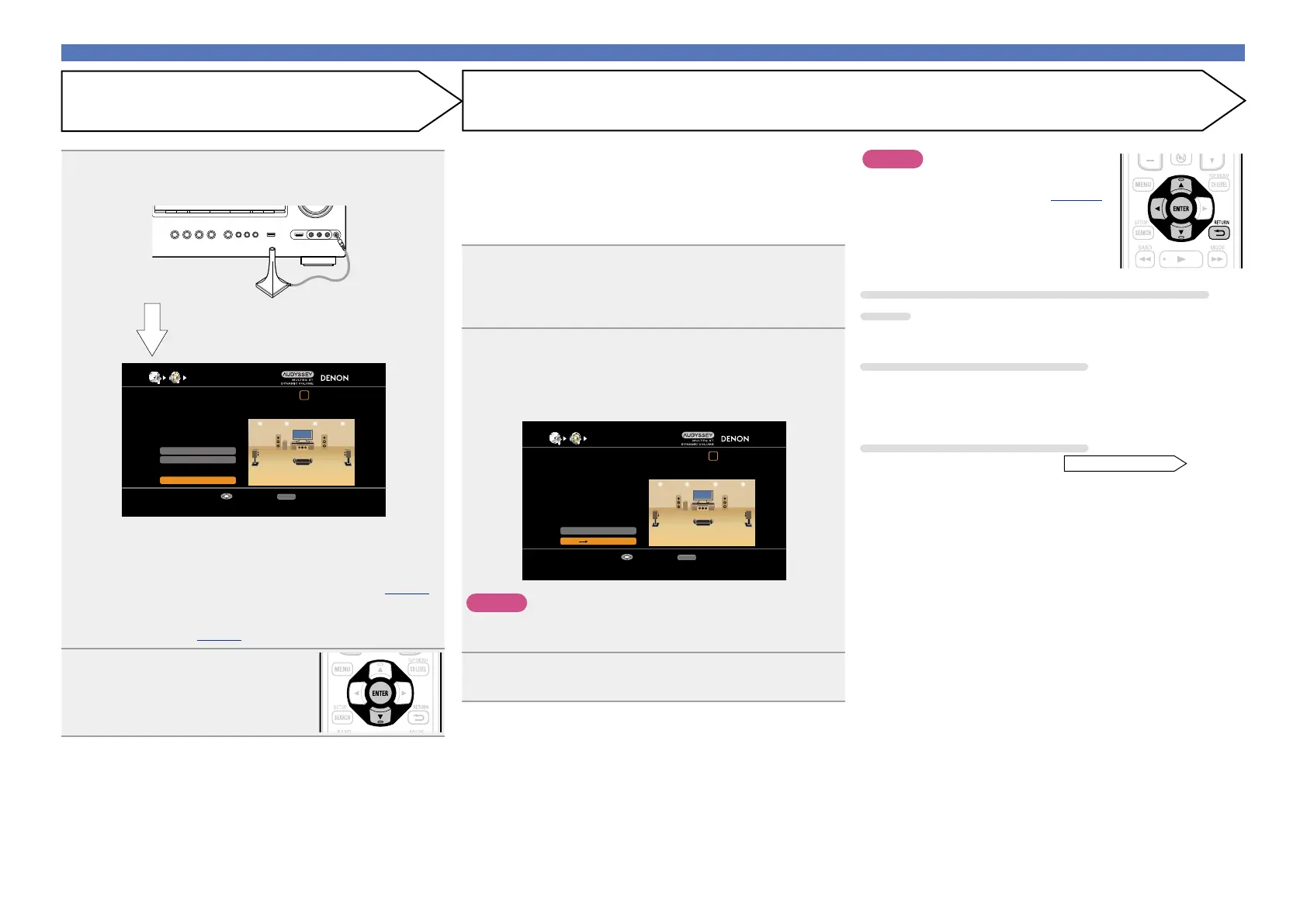

21
STEP 1
Preparation
STEP 2
Detection & Measurement (Main)
Set up speakers (Audyssey
®
Auto Setup)
4
Connect the setup microphone to the SETUP MIC
jack of this unit.
AUDYSSEY AUTO SETUP
1 2 3 4 5 6
Amp Assign
RETURN
Auto Setup Start
Channel Select
STEP1 Preparation
Connect the speakers and place them according
to the recommendations in the manual.
Set the following items
If necessary.
Start Auto Setup
Enter Cancel
When the setup microphone is
connected, the following screen is
displayed.
Here, we explain setup using the example of 5.1-channel speaker
playback.
For settings other than 5.1-channel surround, select “Amp Assign”
and perform step 4 and 5 of “Set up “Amp Assign”” (vpage65).
If unused channels are set with “Channel Select”, measuring time
can be shortened. For setting, perform steps 6 to 11 of “Set up
“Channel Select”” (vpage66).
5
Use i to select “Auto Setup
Start” and then press ENTER.
NOTE
If “Caution!” is displayed:
Go to “Error messages” (vpage 24),
check any related items, and perform the
necessary procedures.
If the problem is resolved, return and restart
“Audyssey
®
Auto Setup”.
When performing Audyssey
®
Auto Setup over
again
Press ui to select “Retry”, and then press ENTER.
When measuring has stopped
q Press RETURN B, to the “Cancel auto setup?” prompt is
displayed.
w Press o to select “Yes”, then press ENTER.
Setting up the speakers again
Repeat the operation from step 4 of
STEP 1 Preparation
.
•In STEP 2, you will perform measurements at the main listening
position.
•This step automatically checks the speaker configuration and speaker
size, and calculates the channel level, distance, and crossover
frequency.
It also corrects distortion in the listening area.
6
Select “Measure” and then press ENTER.
When measuring begins, a test tone is output from each
speaker.
•Measurement requires several minutes.
7
The detected speakers are displayed.
•The illustration below shows an example of when the front
speakers, center speaker, subwoofer, and surround speakers have
been detected.
AUDYSSEY AUTO SETUP
1 2 3 4 5 6
RETURN
Next Measurement
Retry
STEP2 Speaker Detection Check
Proceed to next after checking speaker connection result
Enter Cancel
Front
Center
Subwoofer
Surround
Yes
Yes
Yes
Yes
NOTE
If a connected speaker is not displayed, the speaker may not be
connected correctly. Check the speaker connection.
8
Use i to select “Next → Measurement” and then
press ENTER.
To Next Page
