Denon AVR-2313

15

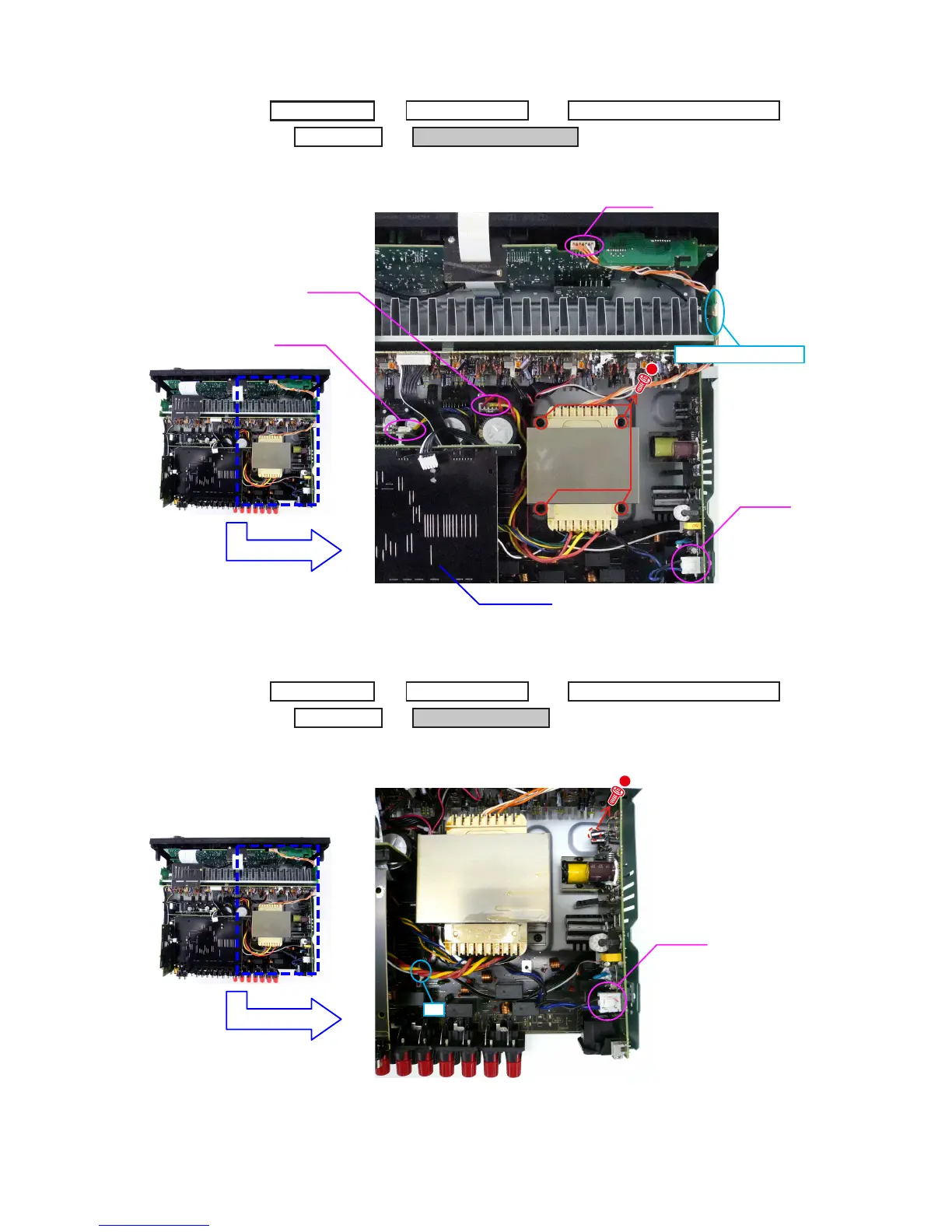

4. POWER TRANS MAIN
(1) Disconnect the connector wires, then remove the screws
.
5. PCB SMPS ASSY
(1) Cut the wire clamp band, then disconnect the connector wire. Remove the screw.
PCB MX PORT/PCB RS232C
→
PCB HDMI
→
POWER TRANS MAIN
→
TOP COVER
BACK CHASSIS
→
Proceeding :
CP4142
CP4602
CP4001
CP4400
STYLE PIN : Loosen
PCB VIDEO
PCB MX PORT/PCB RS232C
→
PCB HDMI
→
→
PCB SMPS ASSY
TOP COVER
BACK CHASSIS
→
Proceeding :
CP4142
cut
