Denon AVR-2313

22

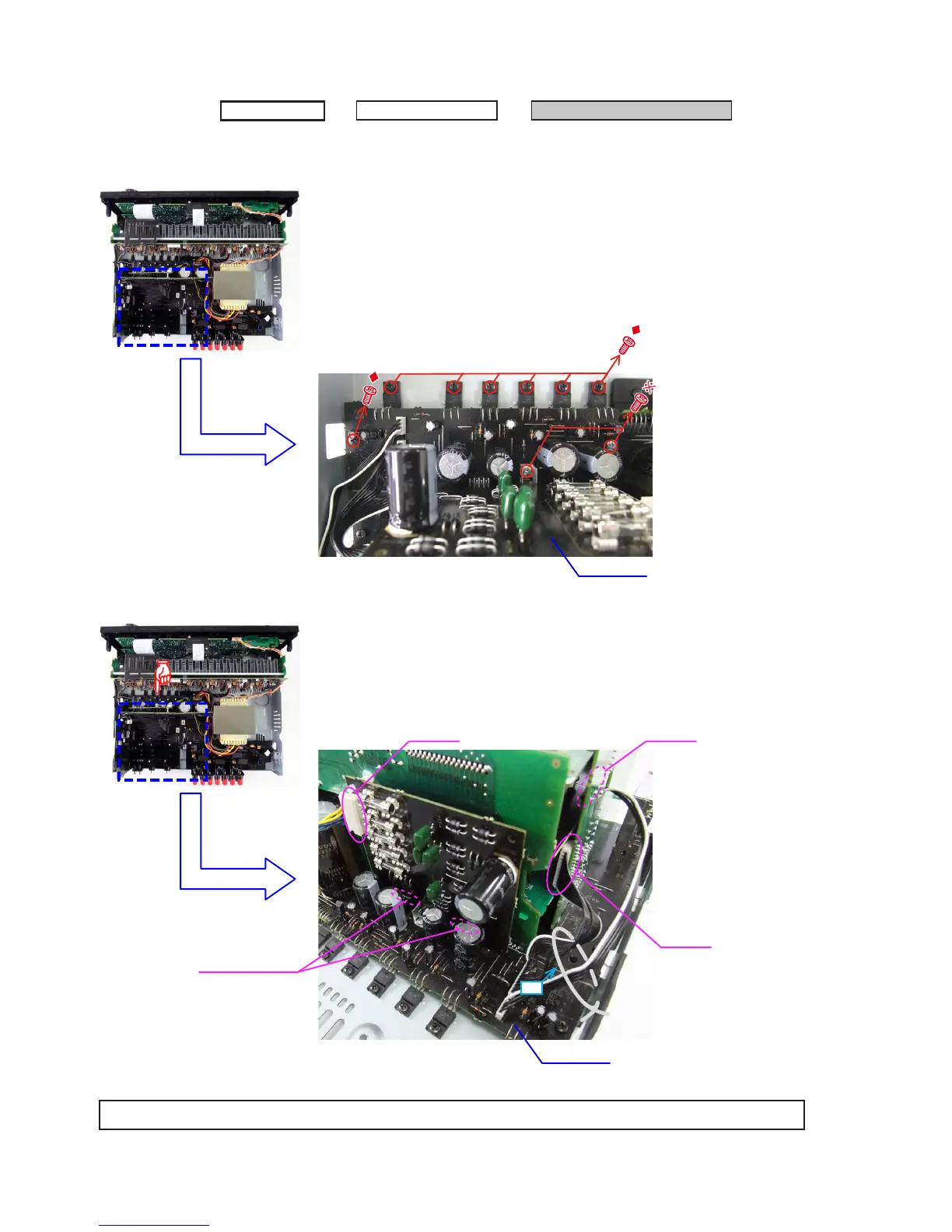

11. PCB REG/REG_CNT ASSY
(1) Remove the screws.
(2) Cut the wire clamp band, then disconnect the connector wire and connector board.
TOP COVER
RADIATOR ASSY
→
PCB REG/REG_CNT ASSY
→
Proceeding :
PCB REG
Shooting of photograph: B
PCB REG
CP4800CP4602
CP4618
Board to Board
cut
Please refer to "EXPLODED VIEW" for the disassembly method of each PCB.
