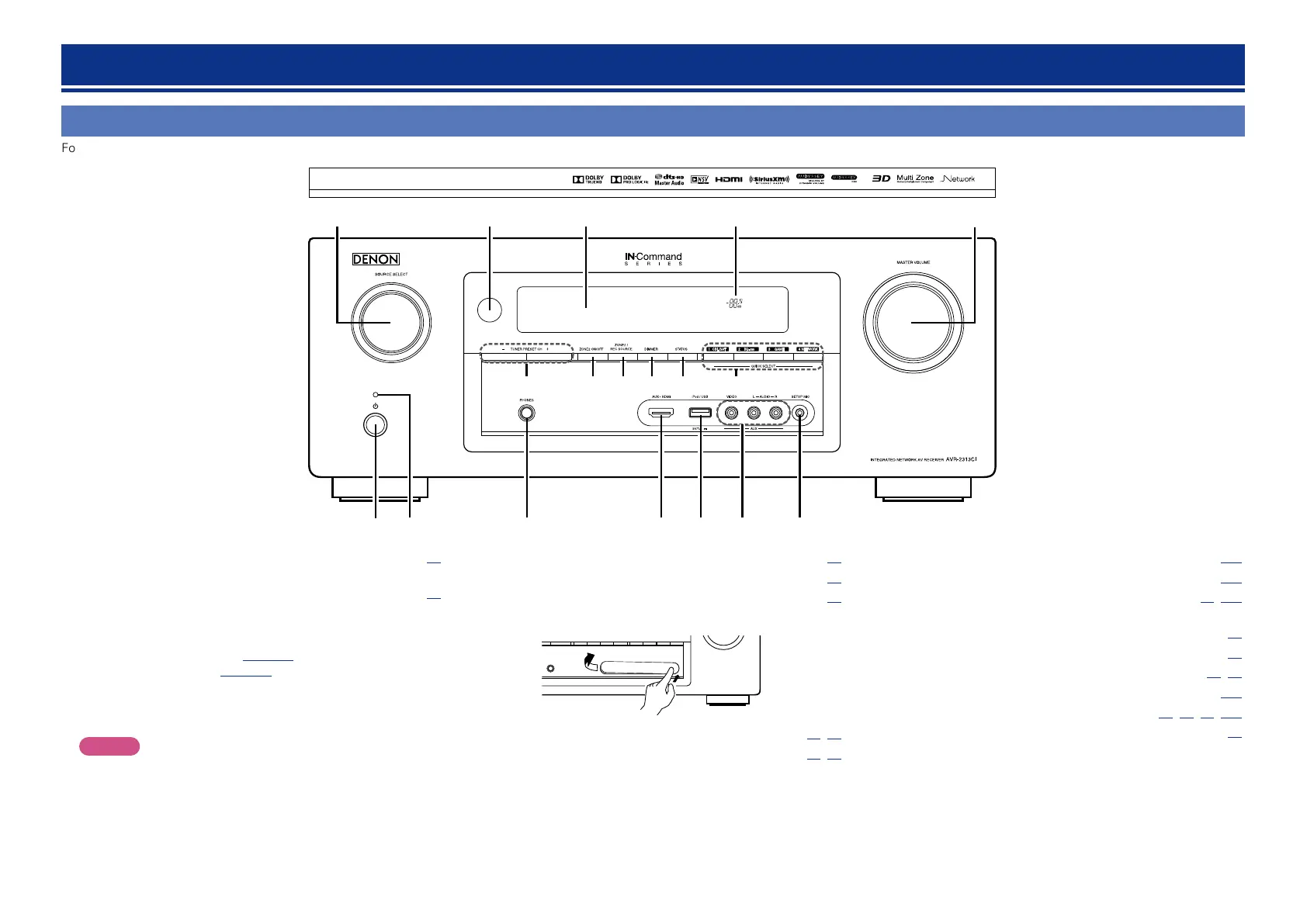

Front panel
For buttons not explained here, see the page indicated in parentheses ( ).
Q3 Q8Q4 Q5 Q6 Q7
ur t yeq w
Q0
oQ1Q2 i
q Power operation button (X) ··················································· (32)
Turn power to this unit on and off (standby).
w Power indicator ······································································· (32)
GPower indicator statusH
•Power on : Green
•Normal standby : Off
•When “HDMI Control” (vpage111) is set to “On” : Red
•When “IP Control” (vpage125) is set to “Always On” : Red
e Headphones jack (PHONES)
When the headphones are plugged into this jack, audio will no
longer be output from the connected speakers.
NOTE
To prevent hearing loss, do not raise the volume level excessively
when using headphones.
Q0 Display ···················································································· (136)
Q1 Remote control sensor ························································· (139)
Q2 SOURCE SELECT knob ··················································· (32, 156)
Q3 Tuner preset channel buttons
(TUNER PRESET CH +, –) ························································ (44)
Q4 ZONE2 ON/OFF button ··························································· (96)
Q5 ZONE2 / REC SOURCE button ········································· (92, 96)
Q6 DIMMER button ····································································· (130)
Q7 STATUS button ··················································· (35, 49, 53, 131)
Q8 QUICK SELECT buttons ·························································· (91)
r AUX-HDMI connector ····························································· (10)
t iPod/USB port ········································································· (19)
y AUX INPUT connectors ·························································· (17)
Remove the cap covering the connectors when you want to use
them.
u SETUP MIC jack ································································· (27, 87)
i MASTER VOLUME knob ··················································· (33, 96)
o Master volume indicator
Part names and functions
Basic version
Advanced version
InformationsInformations
DVD

Denon AVR-2313CI Specifications

General

Receiver type	-
Audio output channels	7.1 channels
Power output per channel (1KHz@6 Ohm)	135 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	8
Audio (L/R) in	6
Composite video in	4
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	2
12V trigger	Yes
FM band range	87.5 - 107.9 MHz
Supported radio bands	FM
Internet radio services supported	Pandora, SIRIUS Internet Radio, Spotify, vTuner
Card reader integrated	No
Product color	Black
Audio decoders	Dolby Digital Plus, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Digital Surround, DTS Neo:6, DTS-ES (Discrete 6.1), DTS-HD, DTS-HD Master Audio
Volume control	Rotary

Weight and Dimensions

Depth	378.9 mm
Width	434.3 mm
Height	166.8 mm
Weight	10899 g
