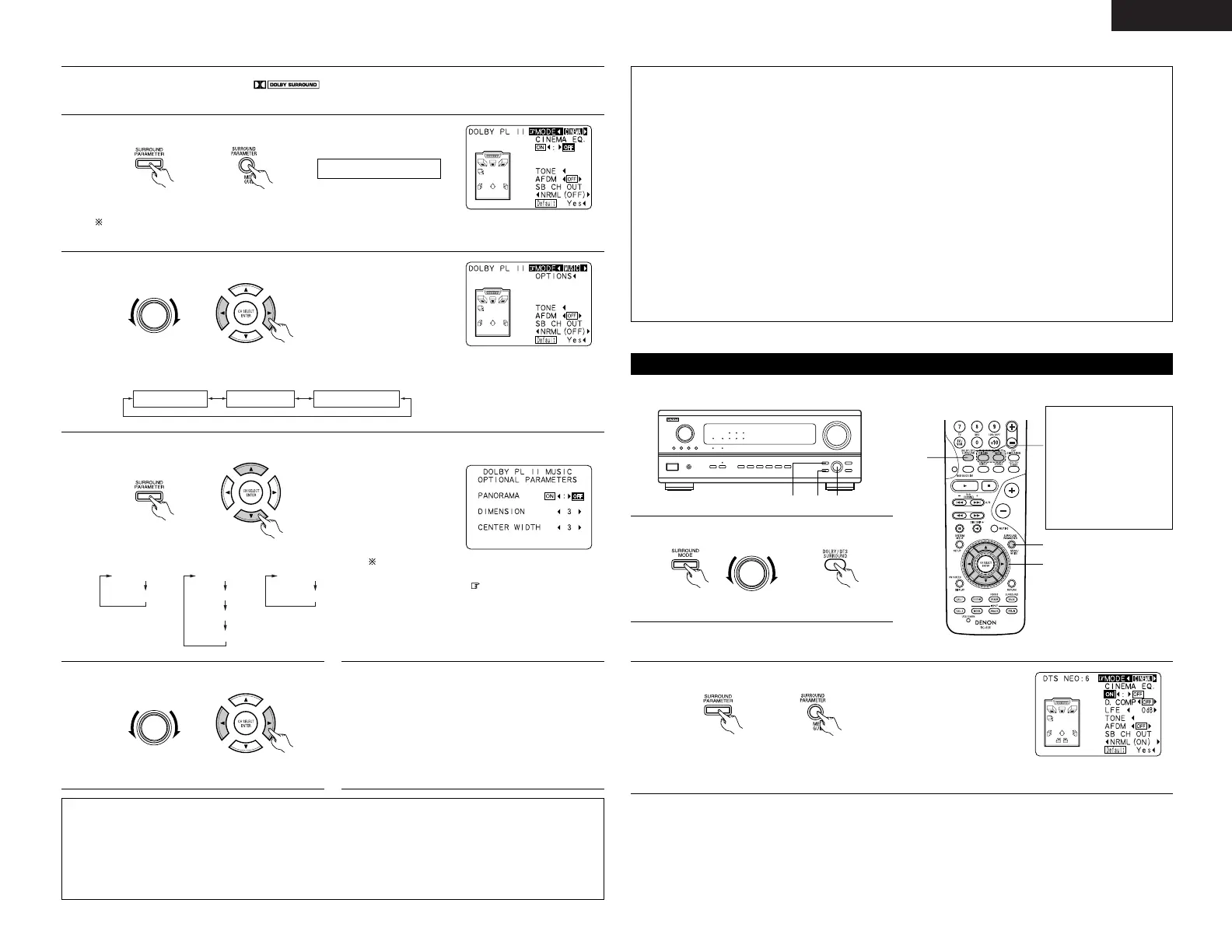

29
ENGLISH
2
Play a program source with the mark.
For operating instructions, refer to the manuals of the respective components.
NOTES:
There are four Dolby Surround Pro Logic modes (NORMAL, PHANTOM, WIDE and 3 STEREO). The AVR-
2803 sets the mode automatically according to the types of speakers set during the system setup process
(page 11).
Dolby Surround Pro Logic II is a mode in which 2-channel sources are expanded into 5.1 channels.
To output a surround back channel in this mode, set the “SB CH OUT” surround parameter to “NON
MTRX”.
3
Set the surround parameter mode.
(Main unit) (Remote control unit)
MODE cinema
Display
The on-screen display differs according to whether the operation is
performed from the main unit or the remote control unit.
4
Select the play mode.
SELECT
(Main unit) (Remote control unit)
Display
MODE cinema MODE music MODE DOLBY PL
5
Select the various parameters. (See “Surround parameters q” for a description of the various parameters.)
(Main unit) (Remote control unit)
MODE DOLBY PL
CINEMA EQ
MODE CINEMA
CINEMA EQ
MODE MUSIC
PANORAMA
DIMENSION
CENTER WIDTH
When set with the on-screen display using
the remote control unit while in the MUSIC
mode, set the “ ” mark to “OPTION
0
using the and ª cursor buttons, then press
the
0
cursor button.
Press the ENTER button to return to the
previous screen.
6
Set the various surround parameters.
SELECT
(Main unit) (Remote control unit)
7
When the surround parameters are set using
the buttons on the main unit, stop operating
buttons after completing the settings. The
settings are automatically finalized and the
normal display reappears after several seconds.
When the settings are made using the buttons
on the remote control unit, press the
SURROUND PARAMETER button to finish.
This is the screen when operated with
the remote control unit.
This is the screen when operated with
the remote control unit.
Surround parameters q
Pro Logic II Mode:
The Cinema mode is for use with stereo television shows and all programs encoded in Dolby Surround.
The Music mode is recommended as the standard mode for autosound music systems (no video), and is
optional for A/V systems.
The Dolby PL mode offers the same robust surround processing as original Pro Logic in case the source
contents is not of optimum quality.
Select one of the modes (“Cinema”, “Music” or “Dolby PL”).
Panorama Control:
This mode extends the front stereo image to include the surround speakers for an exciting “wraparound”
effect with side wall imaging.
Select “OFF” or “ON”.
Dimension Control:
This control gradually adjust the soundfield either towards the front or towards the rear.
The control can be set in 7 steps from 0 to 6.
Center Width Control:
This control adjust the center image so it may be heard only from the center speaker; only from the left/right
speakers as a phantom image; or from all three front speakers to varying degrees.
The control can be set in 8 steps from 0 to 7.
DTS NEO:6 mode
1
Select the DTS NEO:6 mode.
(Main unit) (Remote control unit)
1 3, 5 1, 4, 6
SELECT
1
3
4, 5, 6
The DTS NEO:6
Cinema or Music
mode can be chosen
directly by pressing
the CINEMA or
MUSIC button on the
remote control unit
during playback in the
DTS NEO:6 mode.
Surround playback can be performed for the analog input and PCM digital input 2-channel signals.
2
Play a program source.
3
Set the surround parameter mode.
(Main unit) (Remote control unit)
This is the screen when operated with
the remote control unit.
