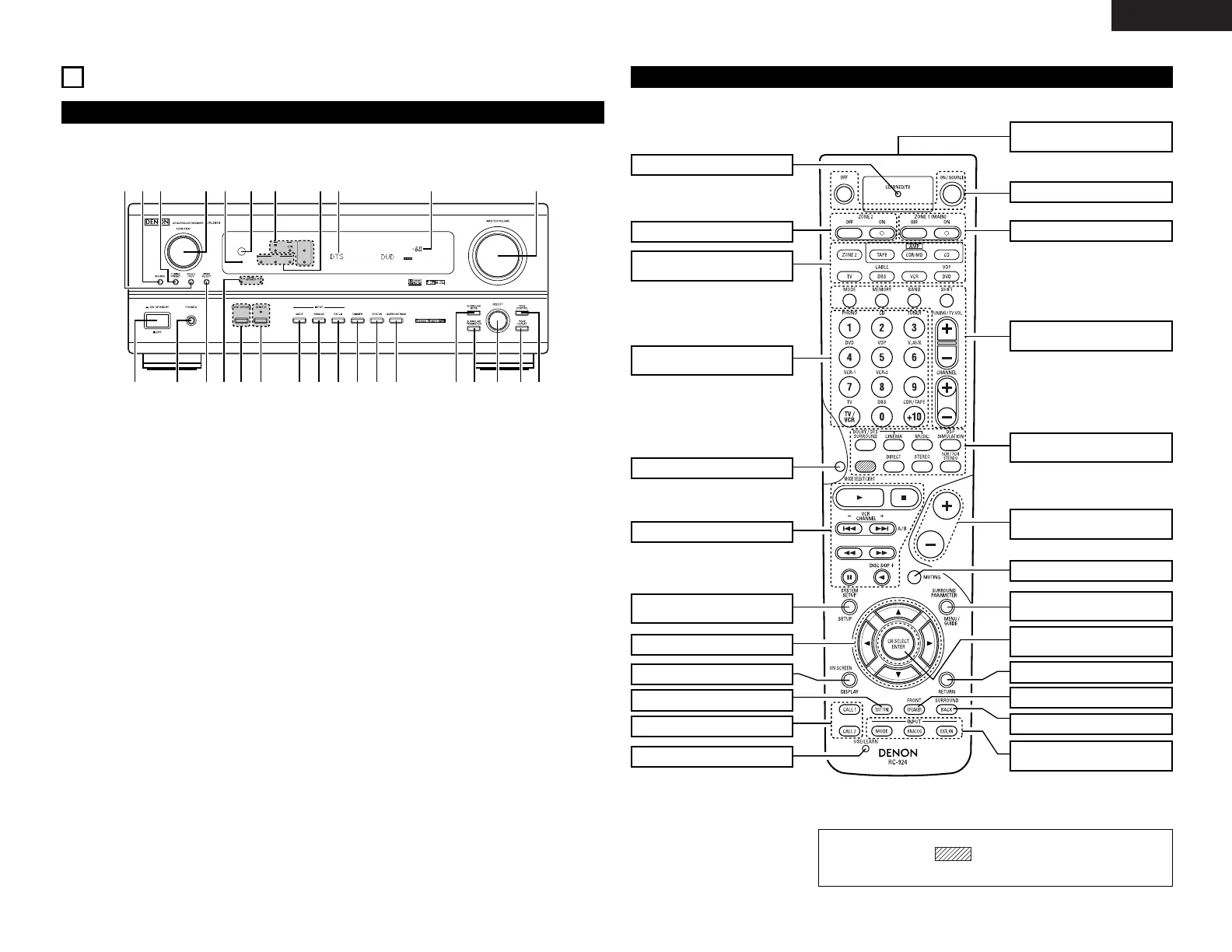

Front Panel
6
PART NAMES AND FUNCTIONS
For details on the functions of these parts, refer to the pages given in parentheses ( ).
q
Power operation switch ...........................(23, 37)
w
Headphones jack (PHONES) ..........................(25)
e
VIDEO SELECT button ...................................(25)
r
Front speaker system indicators
(FRONT SPEAKER A/B)
t
FRONT SPEAKER button .........................(23, 37)
y
ZONE 2 button/indicator...........................(26, 37)
u
MODE button.....................................(23, 24, 30)
i
ANALOG button .......................................(23, 24)
o
EXT. IN button ..........................................(23, 24)
!0
DIMMER button .............................................(26)
!1
STATUS button ...............................................(26)
!2
SURROUND BACK button .............................(30)
!3
SURROUND MODE button .........(24, 28~30, 33)
!4
SURROUND PARAMETER
button.................................................(29~31, 33)
!5
SELECT knob...................(24, 25, 28~31, 33, 34)
!6
TONE DEFEAT button ....................................(25)
!7
TONE CONTROL button ..........................(25, 34)
!8
MASTER VOLUME control ............................(24)
!9
Master volume indicator (VOLUME LEVEL) ..(24)
@0
Display
@1
INPUT mode indicators ..................................(24)
@2
SIGNAL indicators ..........................................(24)
@3
Remote control sensor
(REMOTE SENSOR) .......................................(18)
@4
Power indicator ..............................................(23)
@5
FUNCTION knob ..............(23, 25, 26, 30, 35, 36)
@6
TUNING PRESET button ................................(36)
@7
SOURCE selector button ...............................(23)
@8
ZONE 2/REC button .......................................(26)
Remote control unit
For details on the functions of these parts, refer to the pages given in parentheses ( ).
SYSTEM CALL buttons................(21)
ON SCREEN/DISPLAY button
.(19, 20, 26)
Cursor buttons .............................(10)
TEST TONE button ......................(28)
System buttons .....................(18~22)
ZONE 2 buttons ...........................(27)
MODE SELECT button ................(18)
Input source selector
buttons ..........(19, 20, 23, 27, 30, 35)
SYSTEM SETUP/SETUP
button ........................(10, 11, 17, 19)
Mode selector
buttons ............................(18~23, 27)
Surround buttons
............................(23, 25, 28~30, 32)
ZONE 1/MAIN buttons.................(27)
Power buttons .......................(19~23)
Tuner system/System
buttons ................(18, 20, 27, 35, 36)
MUTING button ...........................(25)
Master volume control
buttons...................................(24, 27)
RETURN button .....................(19, 20)
Remote control signal
transmitter ...................................(18)
INPUT MODE selector
buttons...................................(23, 24)
SURROUND PARAMETER
button ..................(19, 20, 29, 31~33)
CH SELECT/ENTER button
...................................(10, 19, 20, 28)
SURROUND BACK button...........(30)
LED (indicator)..............................(20)
USE/LEARN button................(20, 22)
FRONT SPEAKER button.............(23)
NOTE:
The shaded button does not function with the AVR-2803.
(Nothing happens when they are pressed.)
