Denon AVR-3801 Operating Instructions

14
6

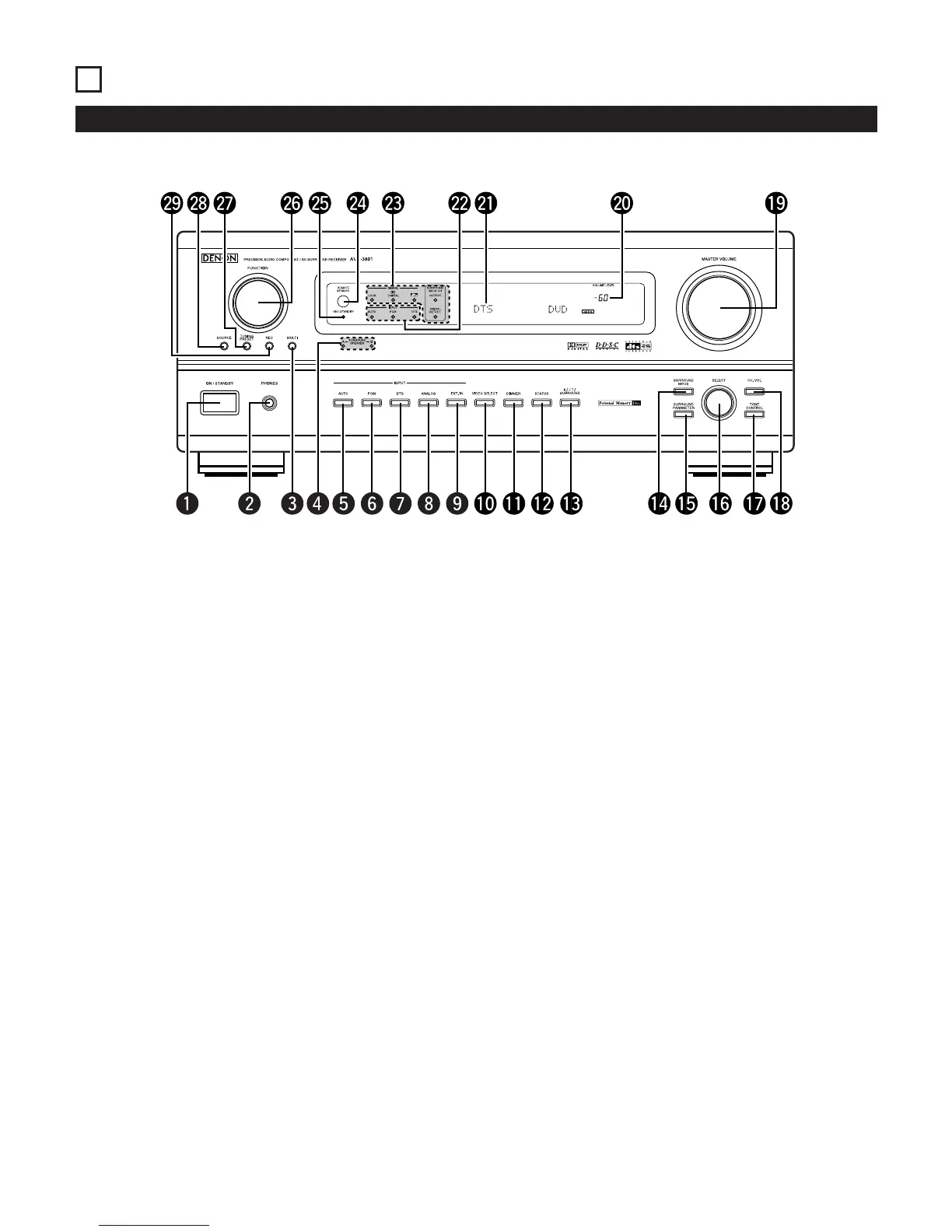

PART NAMES AND FUNCTIONS
Front Panel
• For details on the functions of these parts, refer to the pages given in parentheses ( ).
q
Power ON/STANDBY switch....................................................(41)
w
Headphones jack (PHONES) ....................................................(44)
e
MULTI button ...........................................................................(46)
r
Surround speaker system indicators
(SURROUND SPEAKER A/B)
t
AUTO button ............................................................................(42)
y
PCM button..............................................................................(43)
u
DTS button ...............................................................................(43)
i
ANALOG button .......................................................................(42)
o
EXT. IN button ..........................................................................(42)
!0
VIDEO SELECT button .............................................................(45)
!1
DIMMER button.......................................................................(45)
!2
STATUS button .........................................................................(45)
!3
6.1/7.1 SURROUND button......................................................(51)
!4
SURROUND MODE button......................................................(43)
!5
SURROUND PARAMETER button ...........................................(52)
!6
SELECT knob............................................................................(43)
!7
TONE CONTROL button ..........................................................(44)
!8
CH. VOL button........................................................................(49)
!9
MASTER VOLUME control ......................................................(43)
@0
Master volume indicator (VOLUME LEVEL) ............................(43)
@1
Display
@2
INPUT indicators.......................................................................(43)
@3
SIGNAL indicators ....................................................................(43)
@4
Remote control sensor (REMOTE SENSOR) ...........................(29)
@5
Power indicator ........................................................................(41)
@6
FUNCTION knob.......................................................................(42)
@7
TUNING PRESET button ..........................................................(60)
@8
SOURCE selector button .........................................................(42)
@9
REC selector button .................................................................(45)

Denon AVR-3801 Specifications

General

Channels	7.1
Power Output	105 W per channel (8 ohms, 20 Hz - 20 kHz, 0.05% THD)
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
Total Harmonic Distortion	0.05%
Type	AV Receiver
Input Sensitivity	200 mV (Line)
Input Impedance	47 kOhms (Line)
Output Voltage	1.2 V (Pre Out)
Video Switching	Composite, S-Video
Speaker Impedance	6 - 16 Ohms
Tuning range	FM, AM
Digital inputs/outputs	optical, coaxial
Signal-to-Noise Ratio	100 dB (Line)
Output Impedance	1.2k ohms
