Denon AVR-3801 Operating Instructions

49
10

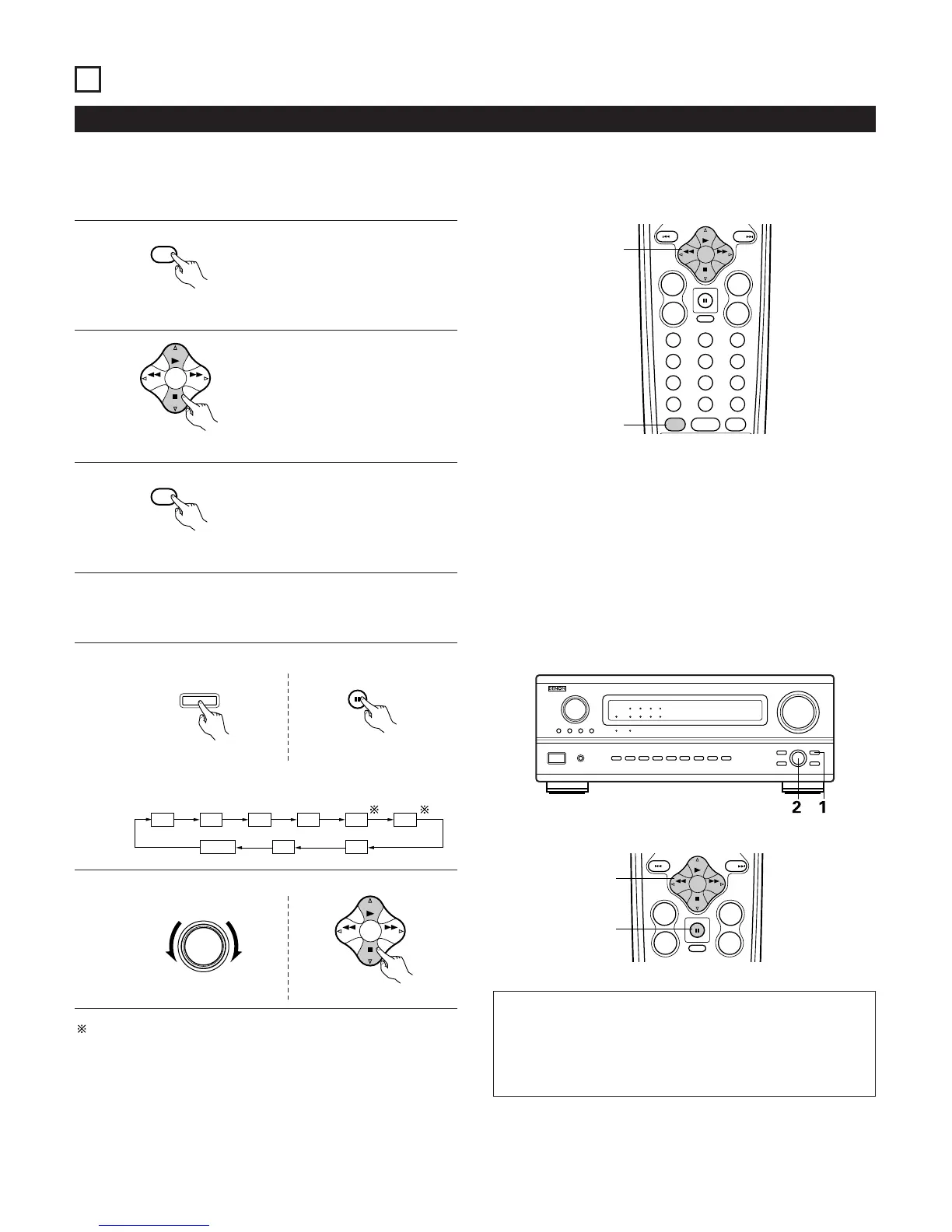

SURROUND
Before playing with the surround function
• Before playing with the surround function, be sure to use the test tones to adjust the playback level from the different speakers. This adjustment
can be performed with the system setup (see page 23) or from the remote control unit, as described below.
• Adjusting with the remote control unit using the test tones is only possible in the “Auto” mode and only effective in the DOLBY/DTS
SURROUND modes. The adjusted levels for the different modes are automatically stored in the memory.
1
Press the TEST TONE button.
TEST
TONE
2
Test tones are output from the
different speakers. Use the channel
volume adjust buttons to adjust so
that the volume of the test tones is
the same for all the speakers.
BAND MODE
TUNING
TUNING
• After adjusting using the test tones, adjust the channel levels either according to the playback sources or to suit your tastes, as described below.
1
2
3
456
789
+10
0
TV/
VCR
SKIP
SKIP
ENTER
MEMORY
VOLUME
CHANNEL
+
-
+
-
TUNER
VDP
VCR-1 VCR-2/V.AUX
DVD
TV/DBS
CDR/TAPE
PHONO
CD
OUTPUT
TEST
TONE
SPEAKER
RETURN
SETUP
SHIFT
A/B
MUTING
BAND MODE
TUNING
TUNING
2
1, 3
3
After completing the adjustment,
press the TEST TONE button again.
TEST
TONE
1
Select the speaker whose level you want to adjust.
CH.VOL
ENTER
SHIFT
(Main unit) (Remote control unit)
2
Adjust the level of the selected speaker.
The channel switches as shown below each time the button
is pressed.
SELECT
BAND MODE
TUNING
TUNING
(Main unit) (Remote control unit)
When the surround back speaker setting is set to “1spkr” for
“Speaker Configuration”, this is set to “SB”.
SKIP
SKIP
ENTER
MEMORY
VOLUME
CHANNEL
+
-
+
-
TUNER
PHONO
CD
RETURN
SETUP
SHIFT
A/B
MUTING
BAND MODE
TUNING
TUNING
2
1
(Remote control unit)
(Remote control unit)
(Remote control unit)
FL C FR SR SBR SBL
SLSW
FADER
NOTES:
• The adjustment range for the different channels is +12 dB to
–12 dB.
• When using the DIRECT mode, the sound from the subwoofer
can be cut by lowering the SW (subwoofer) setting one step
from –12 dB (setting it to “OFF”).

Denon AVR-3801 Specifications

General

Channels	7.1
Power Output	105 W per channel (8 ohms, 20 Hz - 20 kHz, 0.05% THD)
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
Total Harmonic Distortion	0.05%
Type	AV Receiver
Input Sensitivity	200 mV (Line)
Input Impedance	47 kOhms (Line)
Output Voltage	1.2 V (Pre Out)
Video Switching	Composite, S-Video
Speaker Impedance	6 - 16 Ohms
Tuning range	FM, AM
Digital inputs/outputs	optical, coaxial
Signal-to-Noise Ratio	100 dB (Line)
Output Impedance	1.2k ohms
