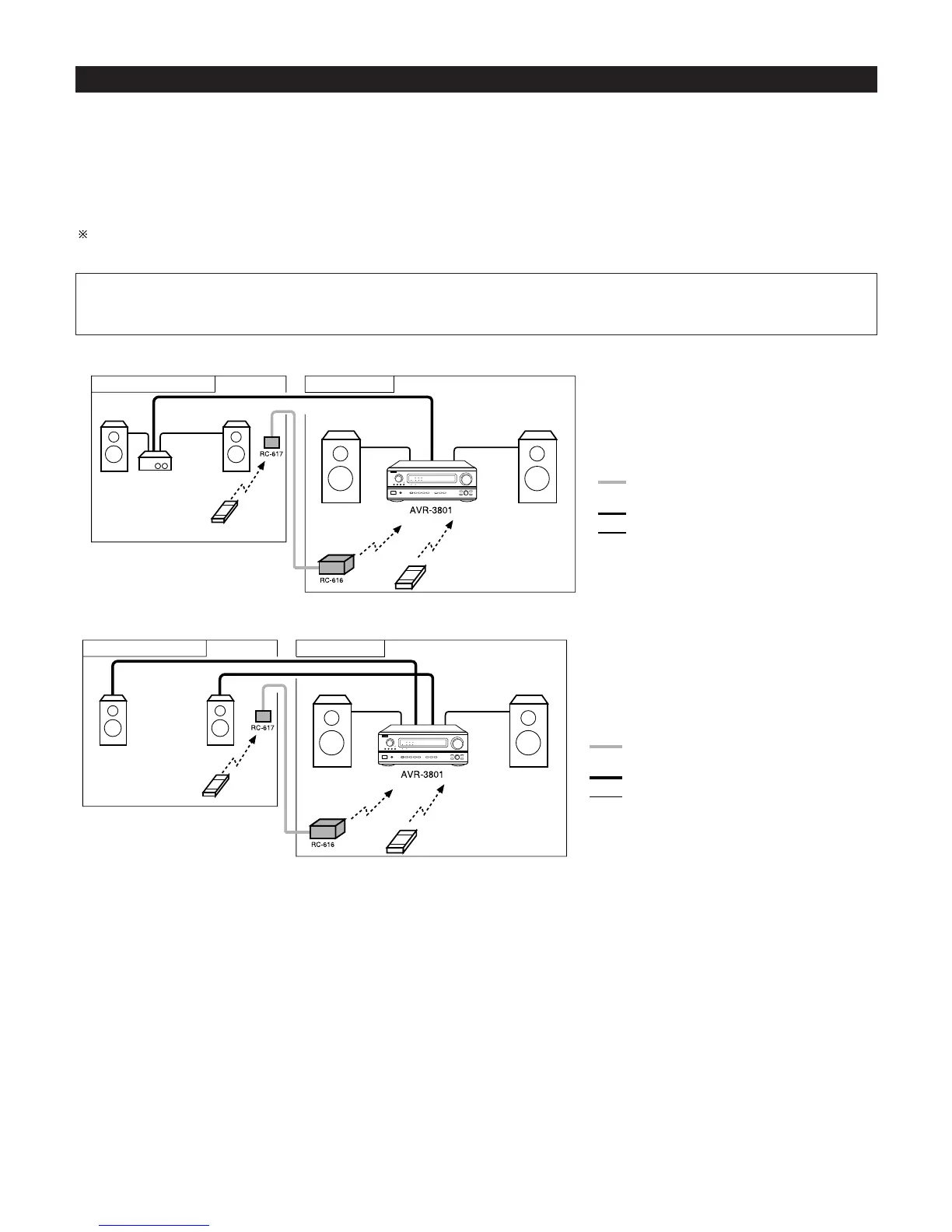

2 MULTI ROOM MUSIC ENTERTAINMENT SYSTEM (When using SPEAKER OUT)
ANOTHER ROOM MAIN ROOM
PROGRAMMABLE
REMOTE
CONTROL UNIT
SYSTEM REMOTE
CONTROL UNIT RC-883
ROOM-TO-ROOM REMOTE CONTROL SYSTEM
(separately sold) control line
MULTI SOURCE SPEAKER cable
SPEAKER cable
*
Refer to CONNECTIONS on pages 6 to 13.
Multi-source and multi-zone playback
MULTI ROOM MUSIC ENTERTAINMENT SYSTEM
• When the outputs of the MULTI ZONE PRE OUT terminals are wired and connected to integrated amplifiers installed in other rooms, different
sources can be played in rooms other than the main room in which this unit and the playback devices are installed. (Refer to ANOTHER ROOM
on the diagram below.)
• MULTI ZONE SPEAKER OUT can be used when “Multi” is selected at System Setup Menu “Power Amp Assignment”. In this case, Surround
Back Speaker OUT cannot be used for MAIN ROOM. (See page 18.)
• When a sold separately room-to-room remote control unit (DENON RC-616, 617 or 618) is wired and connected between the main room and
another room, the remote-controllable devices in the main room can be controlled from another room using the remote control unit.
To control playback devices other than the ones above, either use that device’s remote control unit or preset a separately sold programmable
remote control unit.
NOTES:
• For the AUDIO output, use high quality pin-plug cords and wire in such a way that there is no humming or noise.
• For instructions on installation and operation of separately sold devices, refer to the devices’ operating instructions.
2 MULTI ROOM MUSIC ENTERTAINMENT SYSTEM (When using PREOUT)
ANOTHER ROOM MAIN ROOM
INTEGRATED
AMPLIFIER
PROGRAMMABLE
REMOTE
CONTROL UNIT
SYSTEM REMOTE
CONTROL UNIT RC-883
ROOM-TO-ROOM REMOTE CONTROL SYSTEM
(separately sold) control line
MULTI SOURCE AUDIO signal cable
SPEAKER cable
*
Refer to CONNECTIONS on pages 6 to 13.
