• Speaker system layout
Basic system layout

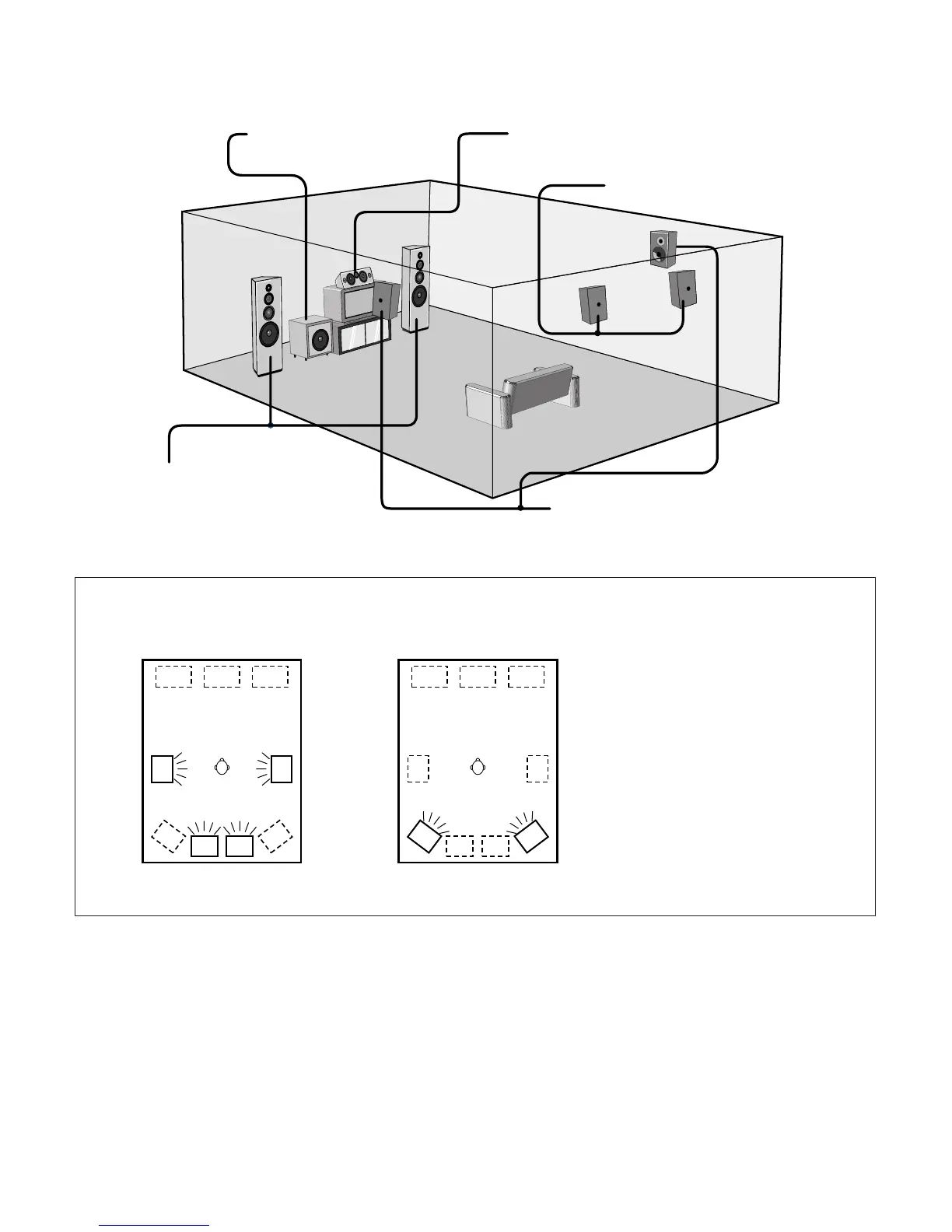

• The following is an example of the basic layout for a system consisting of eight speaker systems and a television monitor:
With the AVR-3801 it is also possible to use the surround speaker selector function to choose the best layout for a variety of sources and surround
modes.
Subwoofer Center speaker system
Surround speaker systems
Surround back speaker systems
Front speaker systems
Set these at the sides of the TV or screen with
their front surfaces as flush with the front of the
screen as possible.
• Surround speaker selector function
This function makes it possible to achieve the optimum sound fields for different sources by switching between two systems of surround
speakers (A and B).
AA
BB
AA
BB
A A A A
Using A only
(Multi surround speaker system)
Using B only
(Single surround speaker system)
• It is also possible to select surround
speakers A+B, but we recommend using
the more effective multi surround speaker
system with the surround back speakers.
Effective surround sound for all types of
signals sources can be selected with the
Surround back parameter settings.
(For details, see page 50.)

Denon AVR-3801 Specifications

General

Channels	7.1
Power Output	105 W per channel (8 ohms, 20 Hz - 20 kHz, 0.05% THD)
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
Total Harmonic Distortion	0.05%
Type	AV Receiver
Input Sensitivity	200 mV (Line)
Input Impedance	47 kOhms (Line)
Output Voltage	1.2 V (Pre Out)
Video Switching	Composite, S-Video
Speaker Impedance	6 - 16 Ohms
Tuning range	FM, AM
Digital inputs/outputs	optical, coaxial
Signal-to-Noise Ratio	100 dB (Line)
Output Impedance	1.2k ohms
