DSP surround simulation
1
Select the surround mode for the input channel.
• To operate the surround mode and surround parameters from the remote control unit.

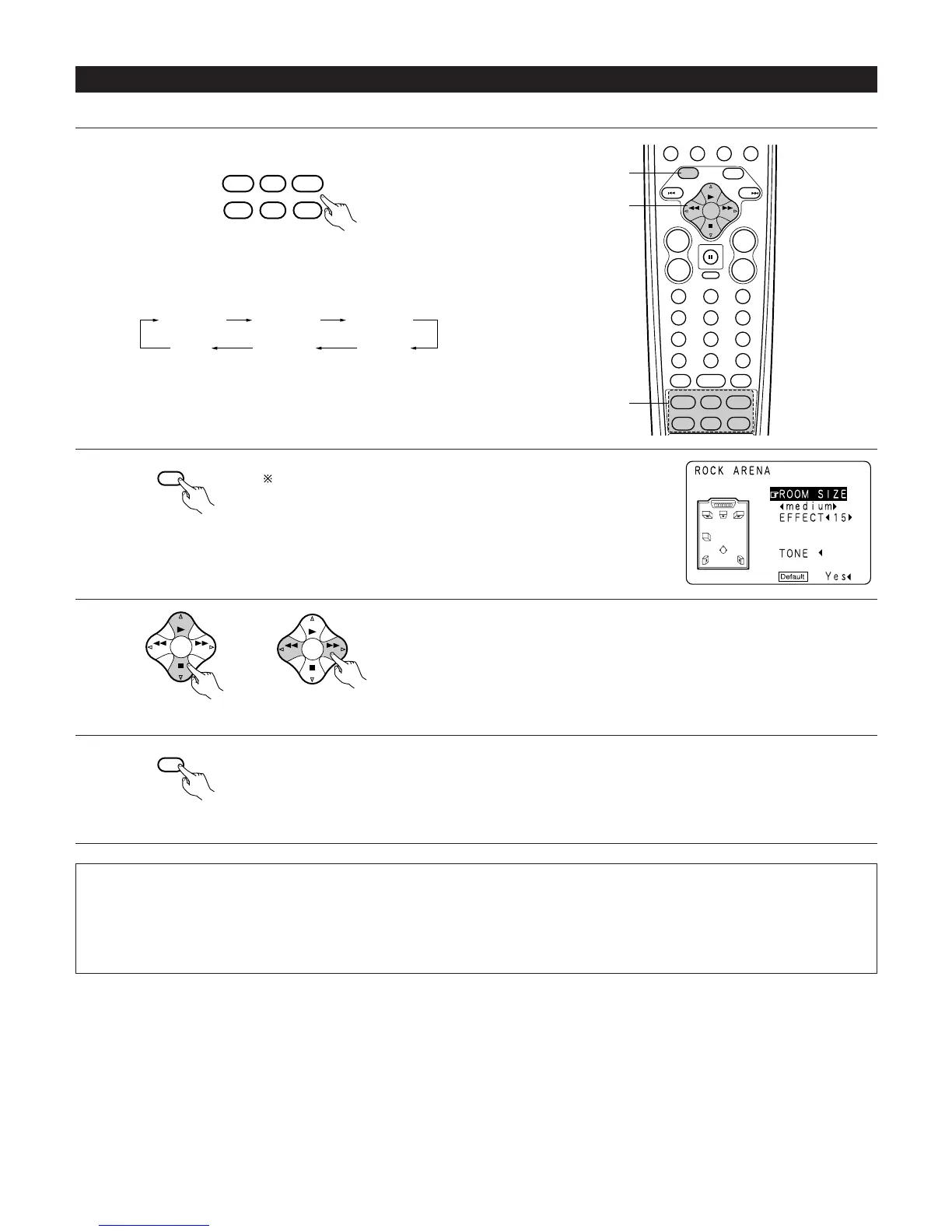

The surround mode switches in the following order each time
the DSP SIMULATION button is pressed:
SURROUND
6.1 / 7.1
SURROUND
5CH / 7CH
STEREO
STEREO
DOLBY/DTS
SURROUND
DSP
SIMU.
DIRECT
1
2
3
456
789
+10
0
TV/
VCR
VCR DBS/CABLE
SKIP
SKIP
ENTER
MEMORY
VOLUME
CHANNEL
+
-
+
-
VDP DVD
TUNER
VDP
VCR-1 VCR-2/V.AUX
DVD
TV/DBS
CDR/TAPE
PHONO
CD
SURROUND
OUTPUT
TEST
TONE
SPEAKER
6.1 / 7.1
SURROUND
5CH / 7CH
STEREO
STEREO
DOLBY/DTS
SURROUND
DSP
SIMU.
DISPLAY
DIRECT
RETURN
SETUP
MENU
SHIFT
SURR.
PARA.
OSD
A/B
MUTING
BAND MODE
TUNING
TUNING
3
2, 4
1
2
Display the surround parameter screen on the monitor.
The screen for the selected surround mode appears.
SURR.
PARA.
3
Set the parameters.
BAND MODE
TUNING
TUNING
4
To end the setting mode, press the surround parameter button again.
SURR.
PARA.
BAND MODE
TUNING
TUNING
(Remote control unit)
(Remote control unit)
(Remote control unit)
(Remote control unit)
NOTES:
• The surround speaker setting can also be changed with the SPEAKER button on the remote control unit.
• When “Default” is selected and the F courser button is pressed, “CINEMA EQ.” and “D.COMP.” are automatically turned off, “ROOM
SIZE” is set to “medium”, “EFFECT LEVEL” to “10” and “DELAY TIME” to “30ms”.
• The “ROOM SIZE” expresses the expansion effect for the different surround modes in terms of the size of the sound field, not the actual
size of the listening room.
WIDE SCREEN MONO MOVIE ROCK ARENA
JAZZ CLUBVIDEO GAME
MATRIX
