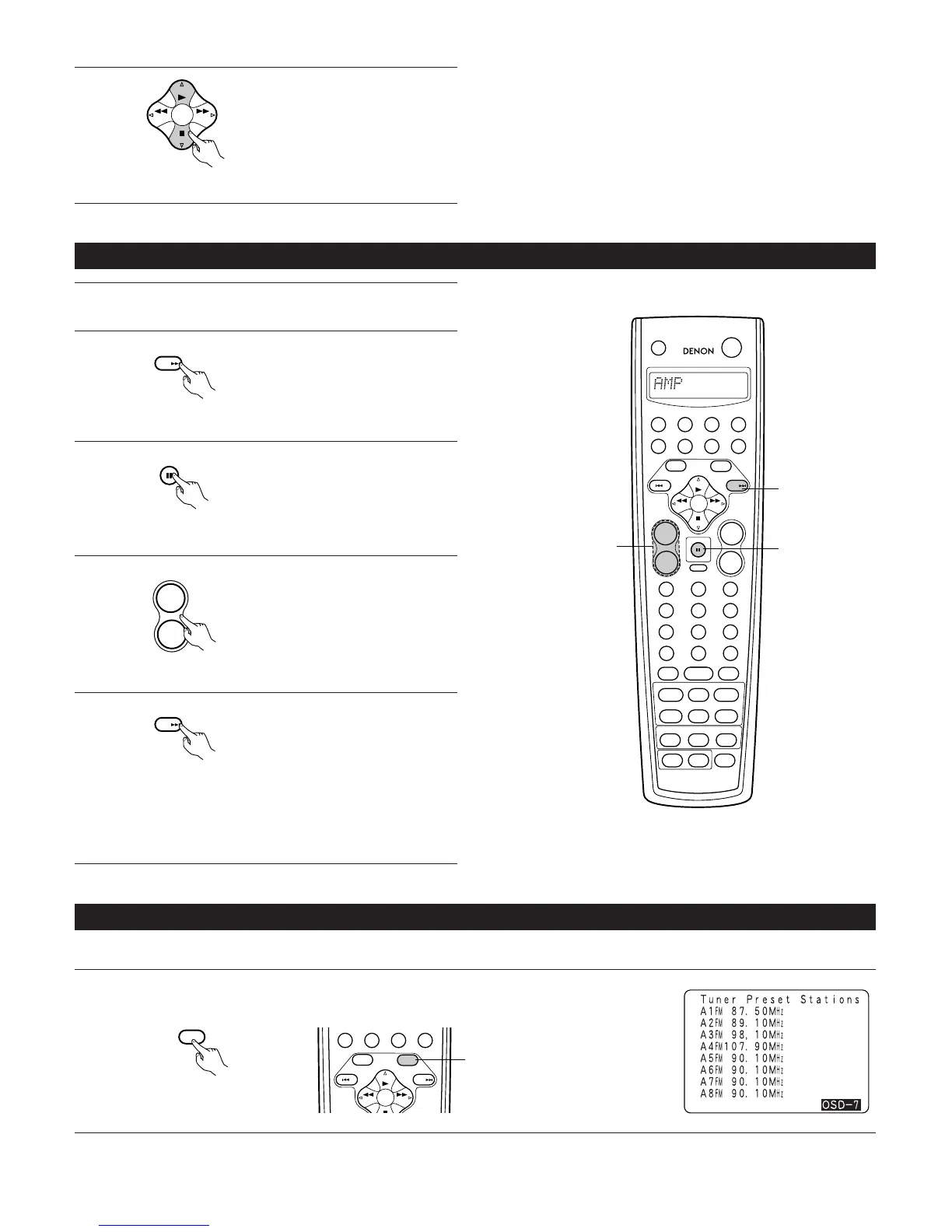

Denon AVR-3801 Operating Instructions

59
Checking the preset stations
1
Use the “Auto tuning” or “Manual tuning” operation to tune
in the station to be preset in the memory.
2
Press the MEMORY button.
MEMORY
RETURN
A/B
3
ENTER
SHIFT
Press the SHIFT button and select
the desired memory block (A to E).
4
SKIP
SKIP
CHANNEL
+
-
Press the CHANNEL + (UP) or –
(DOWN) button to select the
desired preset channel (1 to 8).
5
MEMORY
RETURN
A/B
Press the MEMORY button again
to store the station in the preset
memory.
(Remote control unit)
(Remote control unit)
To preset other channels, repeat steps 2 to 5.
A total of 40 broadcast stations can be preset — 8 stations
(channels 1 to 8) in each of blocks A to E.
• The preset broadcast stations can be checked on the on screen display.
1
Press the OSD button repeatedly until the “Tuner Preset Stations” screen appears on the on screen
display.
OSD
Preset memory
VCR DBS/CABLE
MEMORY
VOLUME
CHANNEL
VDP DVD
DISPLAY
RETURN
SETUP
MENU
SURR.
PARA.
OSD
A/B
BAND MODE
TUNING
1
1
2
3
456
789
+10
0
TV/
VCR
OFF
TV
CD
CDR/MD/ TAPE RECEIVER
VCR DBS/CABLE
SKIP
SKIP
ENTER
MEMORY
VOLUME
CHANNEL
+
-
+
-
VDP DVD
POWER
REMOTE CONTROL UNIT
RC-883
ON /
SOURCE
TUNER
VDP
VCR-1 VCR-2/V.AUX
DVD
TV/DBS
CDR/TAPE
PHONO
CD
SURROUND
INPUT
OUTPUT
TEST
TONE
SPEAKER
6.1 / 7.1
SURROUND
5CH / 7CH
ANALOG EXT.INMODE
CALL 2 BACKLIGHT CALL 1
STEREO
STEREO
DOLBY/DTS
SURROUND
DSP
SIMU.
DISPLAY
SYSTEM CALL
DIRECT
RETURN
SETUP
MENU
SHIFT
SURR.
PARA.
OSD
A/B
MUTING
BAND MODE
TUNING
TUNING
4
2. 5
3
(Remote control unit)
(Remote control unit)
(Remote control unit)
5
Press the TUNING UP or DOWN
button to tune in the desired
station.
The frequency changes continuously
when the button is held in.
BAND MODE
TUNING
TUNING
NOTES:
• When in the auto tuning mode on the FM band, the “STEREO”
indicator lights on the display when a stereo broadcast is tuned in.
At open frequencies, the noise is muted and the “TUNED” and
“STEREO” indicators turn off.
• When the manual tuning mode is set, FM stereo broadcasts are
received in monaural and the “STEREO” indicator turns off.
(Remote control unit)

Denon AVR-3801 Specifications

General

Channels	7.1
Power Output	105 W per channel (8 ohms, 20 Hz - 20 kHz, 0.05% THD)
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
Total Harmonic Distortion	0.05%
Type	AV Receiver
Input Sensitivity	200 mV (Line)
Input Impedance	47 kOhms (Line)
Output Voltage	1.2 V (Pre Out)
Video Switching	Composite, S-Video
Speaker Impedance	6 - 16 Ohms
Tuning range	FM, AM
Digital inputs/outputs	optical, coaxial
Signal-to-Noise Ratio	100 dB (Line)
Output Impedance	1.2k ohms
