AVR-4802/AVC-A11SR

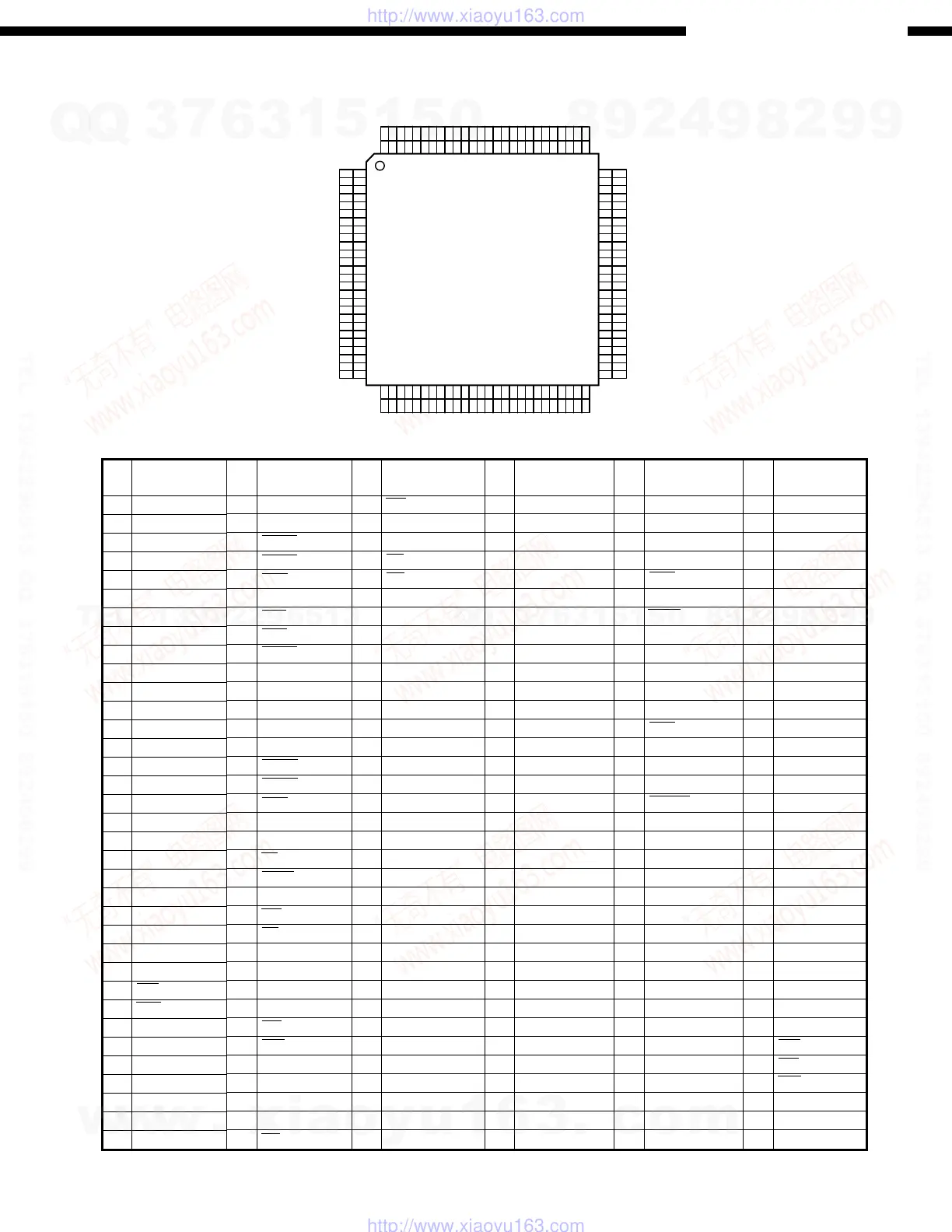

ADSP-21065L (IC501, 502)
Pin Name
ADSP-21065L Terminal Function
Pin
No.
Pin Name
Pin
No.
Pin Name
Pin
No.
Pin Name
Pin
No.
Pin Name
Pin
No.
Pin Name
Pin
No.
1 VDD
2 RFS0
3 GND
4 RCLK0
5 DR0A
6 DR0B
7 TFS0
8 TCLK0
9 VDD
10 GND
11 DT0A
12 DT0B
13 RFS1
14 GND
15 RCLK1
16 DR1A
17 DR1B
18 TFS1
19 TCLK1
20 VDD
21 VDD
22 DT1A
23 DT1B
24 PWM_EVENT1
25 GND
26 PWM_EVENT0
27 BR1
28 BR2
29 VDD
30 CLKIN
31 XTAL
32 VDD
33 GND
34 SDCLK1
35 GND
36 VDD
37 SDCLK0
38 DMAR1
39 DMAR2
40 HBR
41 GND
42 RAS
43 CAS
44 SDWE
45 VDD
46 DQM
47 SDCKE
48 SDA10
49 GND
50 DMAG1
51 DMAG2
52 HBG
53 BMSTR
54 VDD
55 CS
56 SBTS
57 GND
58 WR
59 RD
60 GND
61 VDD
62 GND
63 REDY
64 SW
65 CPA
66 VDD
67 VDD
68 GND
69 ACK
70 MS0
71 MS1
72 GND
73 GND
74 MS2
75 MS3
76 FLAG11
77 VDD
78 FLAG10
79 FLAG9
80 FLAG8
81 GND
82 DATA0
83 DATA1
84 DATA2
85 VDD
86 DATA3
87 DATA4
88 DATA5
89 GND
90 DATA6
91 DATA7
92 DATA8
93 VDD
94 GND
95 VDD
96 DATA9
97 DATA10
98 DATA11
99 GND
100 DATA12
101 DATA13
102 NC
103 NC
104 DATA14
105 VDD
106 GND
107 DATA15
108 DATA16
109 DATA17
110 VDD
111 DATA18
112 DATA19
113 DATA20
114 GND
115 NC
116 DATA21
117 DATA22
118 DATA23
119 GND
120 VDD
121 DATA24
122 DATA25
123 DATA26
124 VDD
125 GND
126 DATA27
127 DATA28
128 DATA29
129 GND
130 VDD
131 VDD
132 DATA30
133 DATA31
134 FLAG7
135 GND
136 FLAG6
137 FLAG5
138 FLAG4
139 GND
140 VDD
141 VDD
142 NC
143 ID1
144 ID0
145 EMU
146 TDO
147 TRST
148 TDI
149 TMS
150 GND
151 TCK
152 BSEL
153 BMS
154 GND
155 GND
156 VDD
157 RESET
158 VDD
159 GND
160 ADDR23
161 ADDR22
162 ADDR21
163 VDD
164 ADDR20
165 ADDR19
166 ADDR18
167 GND
168 GND
169 ADDR17
170 ADDR16
171 ADDR15
172 VDD
173 ADDR14
174 ADDR13
175 ADDR12
176 VDD
177 GND
178 ADDR11
179 ADDR10
180 ADDR9
181 GND
182 VDD
183 ADDR8
184 ADDR7
185 ADDR6
186 GND
187 GND
188 ADDR5
189 ADDR4
190 ADDR3
191 VDD
192 VDD
193 ADDR2
194 ADDR1
195 ADDR0
196 GND
197 FLAG0
198 FLAG1
199 FLAG2
200 VDD
201 FLAG3
202 NC
203 NC
204 GND
205 IRQ0
206 IRQ1
207 IRQ2
208 NC
