73
AVR-1706/686/1506/486

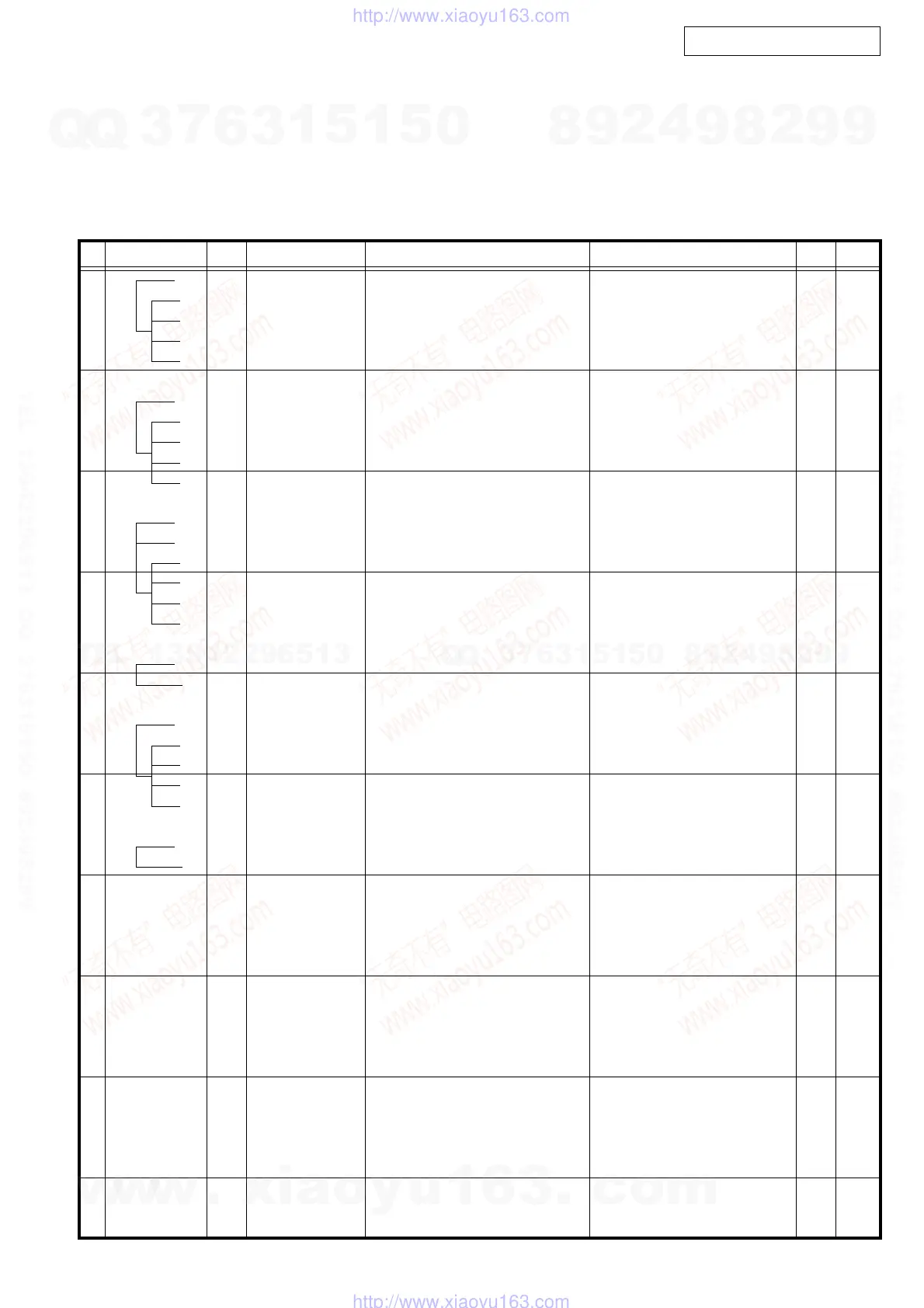

PARTS LIST OF EXPLODED VIEW (for AVR-1506/486 model)
＊本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。
＊ The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
＊"nsp" 印の部品は常時在庫していませんので供給に長時間を要することがあります。場合によっては、供給をお断りする場合があります。
＊ Part indicated with the mark “nsp” are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused.
Note: The symbols in the column "Remarks" indicate the following destinations.
E3 : U.S.A. & Canada model (AVR1506)
E3 : U.S.A. & Canada model (AVR486)
Ref. No. nsp Part No. Part Name Remarks Q'ty New
43A nsp 00D 963 0251 806 MAIN P.W.B. Ass'y 1 *
14 - HEADPHONE P.W.B.
20 - TACT SW P.W.B.
43 - MAIN P.W.B.
47 - AC OUTLET P.W.B.
60A nsp 00D 963 0251 903 CPU P.W.B. Ass'y 1 *
15 - POWER SW P.W.B.
21 - FRONT P.W.B.
25 - V-AUX P.W.B.
60 - CPU P.W.B.
59A nsp 00D 963 0252 009 CNT P.W.B. Ass'y for AVR1506 1 *
59A nsp 00D 963 0252 407 CNT P.W.B. Ass'y for AVR486 1 *
35 - 2CH-AMP P.W.B.
45 - PRE AMP P.W.B.
59 - CNT P.W.B.
69 - 6CH-EXT P.W.B.
66A nsp 00D 963 0252 106 INPUT P.W.B. Ass'y 1 *
66 INPUT P.W.B.
64A nsp 00D 963 0252 203 C-S VIDEO 2 P.W.B. Ass'y 1 *
61 - COMP-V P.W.B.
62 - V-CNT DOWN P.W.B.
63 - V-CNT UP P.W.B.
64 - C-S VIDEO P.W.B.
65A 00D 963 0252 300 DSP P.W.B. Ass'y 1 *
65 - DSP P.W.B.
1 00D 963 0247 302 PANEL FRONT for AVR1506, Black model 1 *
1 00D 963 0247 409 PANEL FRONT for AVR1506, Silver model 1 *
1 00D 963 0247 904 PANEL FRONT for AVR486 1 *
2 00D 963 0051 501 BADGE DENON for Black model 1
2 00D 963 0051 527 BADGE DENON for Silver model 1
3 00D 963 0138 301 KNOB INPUT for Black model 1
3 00D 963 0141 505 KNOB INPUT for Silver model 1
4 00D 963 0248 602 WINDOW DISPLAY 1 *
5 00D 963 0138 107 COVER RCA for Black model 1
5 00D 963 0149 701 COVER RCA for Silver model 1
6 00D 963 0138 806 KNOB VOLUME for Black model 1
6 00D 963 0138 903 KNOB VOLUME for Silver model 1
7 00D 963 0138 505 KNOB SELECT for Black model 1
7 00D 963 0138 602 KNOB SELECT for Silver model 1
8 00D 963 0138 000 BRACKET SIDE L/R 2
9 00D 963 0137 807 LENS STANDBY 1
10 00D 963 0184 106 BUTTON STANDBY for Black model 1
10 00D 963 0190 501 BUTTON STANDBY for Silver model 1
